Infineon T880N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T880N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 880 Amp Package Size ø58 x 14mm Itsm 17.5 kA VF(to) .85V Tj(max) 125°C rF 0.27mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.032°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 300g Clamping Force 10.5 - 21kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon BSM150GB60DLC IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 61mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM150GB60DLC Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 150 Amp Package Size W:61.4mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.115uS Td(off) @ 25 Deg C 0.200uS I(ces) @ 25 Deg C 4mA Rcc 1.0mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.4°C/W R th(c-h) 0.02°C/W Weight 180g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Infineon BSM200GB60DLC, IGBT Dual, 200Amp, 600V Module, May be able to replace SKM 195GB066D (Check datasheet) Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Wide Temperature Range Medium Switching Speed 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM200GB60DLC Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 200 Amp Package Size W:34mm L:106.4mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.25 - 1.6V Tj(max) 150°C Td(on) @ 25 Deg C 0.163uS Td(off) @ 25 Deg C 0.253uS I(ces) @ 25 Deg C 4mA Rcc 0.9mOhm Terminals M6 Screw Hole Centres 93 x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.4°C/W R th(c-h) 0.02°C/W Weight 180g Mounting Torque 5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives , Obsolete. Contact Us for Possible Replacement for alternative

Read more less

Infineon D770N20T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D770N20T Vrrm 600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 770 Amp Package Size ø41 x 14mm Itsm 7.7 kA VF(to) 0.81V Tj(max) 180°C rF 0.54mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.057°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 75g Clamping Force 3.8 - 7.6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon D1049N12T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D1049N12T Vrrm 1200V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 1050 Amp Package Size ø58 x 26mm Itsm 24 kA VF(to) 0.81V Tj(max) 180°C rF 0.17mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.038°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 280g Clamping Force 10 - 24kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D1050N12T Heatsink Heatsink Profiles

Read more less

Infineon T298N08TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T298N08TOF Vrrm 800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 298 Amp Package Size ø41 x 14mm Itsm 4.9 kA VF(to) .85V Tj(max) 125°C rF 0.9mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.088°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 300g Clamping Force 3 - 6kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete, See T430N16TOF Heatsink Heatsink Profiles

Read more less

Infineon BSM50GB60DLC IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM50GB60DLC Vces 600V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 50 Amp Package Size W:34mm L:94mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.05uS Td(off) @ 25 Deg C 0.3uS I(ces) @ 25 Deg C 500uA Rcc 1.0mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.3°C/W R th(c-h) 0.3°C/W Weight 250g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

Fastron Electronics AM5A-A-DV1-A Digital Panel Meter & Transmitter Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number AM5P-C4225A-NAN Signal Conditioned Output 4-20mA Input 0 - 50mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110- 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet User Manual Application Notes Panel Meters Blog Articles

Read more less

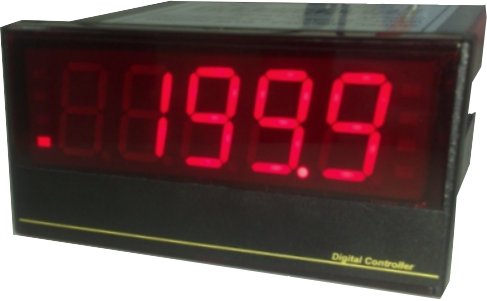

Fastron Electronics AMB-D-VO(100mV)A-N, 96x48mm DC Voltmeter +/-100mV Input, 110-240VAC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-D-VO(100mV)A-N Conditioner Output N/A Input +/-100mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics GAT-D-B Multirange Input/Output Signal Conditioner or Transmitter Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GAT-D-B Control Output (Multirange) 0-5V,0-10V,0-10mA,0-20mA,4-20mA Input (Mutirange) 0-50mV,0-5V,1-5V,0-10V,0-1mA,0-20mA,4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 22 - 60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics AMB-D-A6-D-N, 96x48mm DC Ammeter, 4-20mA AC Input, 24-60VDC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-D-A6-D-N Conditioner Output N/A Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Proton Electrotex D161-400-10-N Series Stud Mount Rectifier Diode Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification Proton Part Number D161-400-10-N Vrrm 1000V Diode Configuration Anode Stud IF(av) @ 100 Deg C 565 Amp IF(av) @ 134 Deg C 400 Amp Itsm 8.3kA VF(to) 0.90V Tj(max) 190°C rF 0.50mΩ Termination Style (Tail) 12.5mm Round Lug Termination Style (Stud) 3/4" x 1.5P - Stud Length 27mm Tail Length to Stud 250mm R th(j-c) 0.1°C/W R th(c-h) N/A Weight 250g Mounting Torque 32 Nm Factory Pack Qty 5 Country Of Origin Russia Proton Electrotex Headquarters Russia Datasheet Product Datasheet

Read more less
