Techsem MT600-25-F432F2, Single Thyristor Module, 600 Amp, 2500V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT600-25-F432F2 Vrrm 2500V Diode Configuration Single Thyristor Module IF(av) @ 125 Deg C 600 Amp Package Size W:70mm L:176mm D:90mm Itsm 15 kA Tj(max) 125°C Terminals M10 Screw Hole Centers 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

Techsem MT600-16-F432F2, Single Thyristor Module, 600 Amp, 1600V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT600-22-F432F2 Vrrm 2200V Diode Configuration Single Thyristor Module IF(av) @ 125 Deg C 600Amp Package Size W:70mm L:176mm D:90mm Itsm 14 kA Tj(max) 125°C I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

VX3-UMND-A4T, Temp Controller/Indicator, 48x96mm, 24VDC, Multirange Input, 4-20mA PV Retransmission Output, 3 Alarms, Can replace Shinko JIR301M1 Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX3-UMND-A4T Control Output 1 (Heat) Relay Control Output 2 (Cool) 4-20mA PV Retransmission Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm 4 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 N/A Mounting Style 48 x 96mm Panel Mount Supply Voltage 24VDC Termination Style Screw Weight 350g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Techsem MT600-22-F432F2, Single Thyristor Module, 600 Amp, 2200V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MT600-22-F432F2 Vrrm 2200V Diode Configuration Single Thyristor Module IF(av) @ 125 Deg C 600Amp Package Size W:70mm L:176mm D:90mm Itsm 14 kA Tj(max) 125°C I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

NX4-20, Temp Controller, 48x48mm, 100-240VAC, Multirange Input, Multirange Relay/SSR/4-20mA Heating and Cooling Outputs, Setup for Relay Heating, SSR Cooling Multirange Dual Output and Input, User Selectable Multirange Output (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number NX4-20 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Input Multirange (refer to datasheet) Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Mounting Style 48 x 48mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet NX Series Brochure NX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

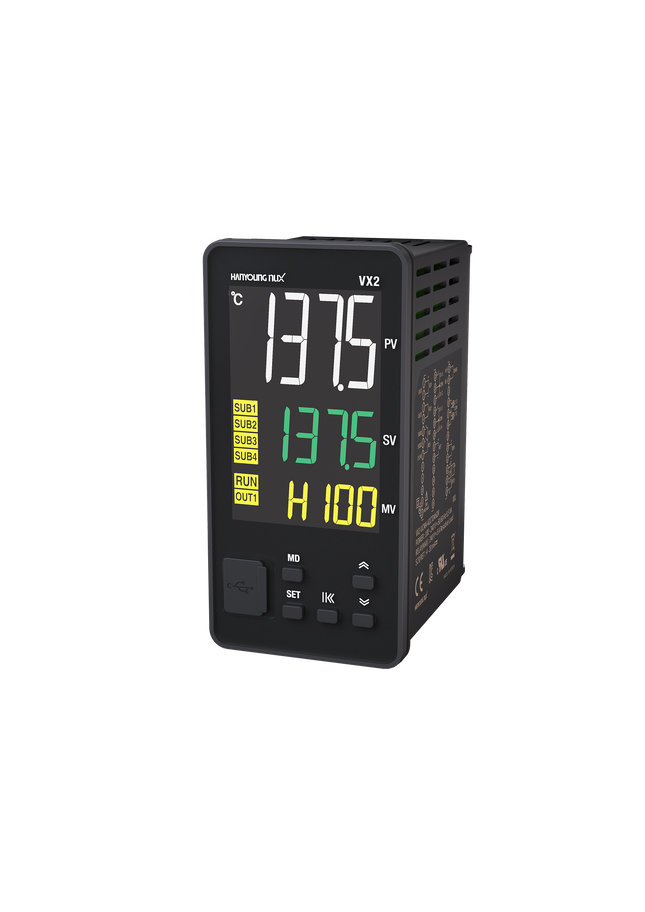

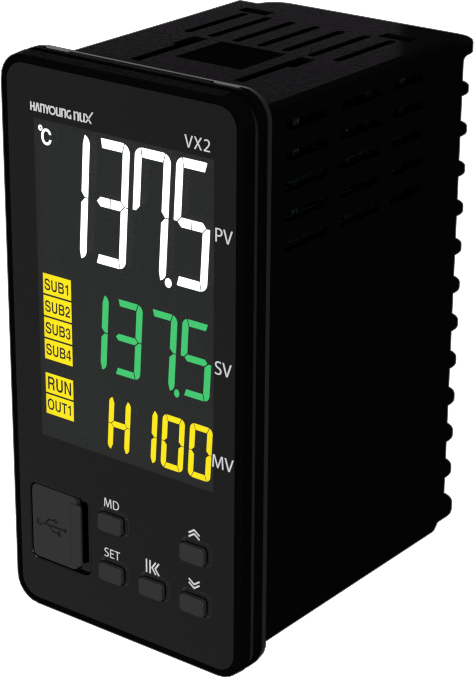

VX2-UCMD-A2CTD4H2R, Temp Controller, 48x96mm, 24VAC/DC, Multirange Input, 4-20mA Output, Relay Cooling Output, 2 Alarms, Retransmission, Event Input (2x SV), Remote Setting Input, Current Feedback Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX2-UCMD-A2CTD4H2R Control Output 1 (Heat) 4-20mA Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2 x Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 Event Input (2x SV), 4-20mA Remote Setting Input, Retransmission, Current Feedback Mounting Style 48 x 96mm Panel Mount Supply Voltage 24VAC/DC Termination Style Screw Weight 350g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual USB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Techsem MTC250-16-216F3E, 250 Amp, 1600V, Dual Thyristor Module Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MTC250-16-216F3E Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 250 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 6 kA VF(to) 0.81V Tj(max) 125°C rF 1.23mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.13°C/W R th(c-h) 0.08°C/W Weight 150g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters Techsem   Datasheet Product Datasheet Alternatives See MCMA260P1600YA for IXYS Alternative

Read more less
