Fastron HS212F & FCR-400-40R, Three Phase, Phase Angle Controller, 4-20mA,0-10V,500K POT Input, 400VAC, 36 Amp @ 40 Deg C, Din Rail Mount 4-20mA, 0-10V or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number HS212F & FCR-400-40R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 36 Amp (rms) per phase @ 40 Deg C Surge Capability 500Amp (peak) Special Feature Three Phase Proportional Controller Mounting Style DIN Rail Mount Load Voltage Range 350-400VAC +15% (460VAC Max) Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 100 x 135 x 130mm Unit Weight 1500g Factory Pack Qty 20   Datasheet FCR Series Voltage Regulators HS212 Datasheet

Read more less

LEM AHR 800 B420, Hall Effect Current Sensor, 800Amp, True RMS 4-20mA output, 104 x 40mm aperture Compact and versatile transducers for high AC and DC currents from 500 to 2000A True RMS with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V, Bandwidth: DC 20..6000 Hz Features Split Core VFD and SCR waveforms current measurement True RMS output 4-20mA current output Busbar mounting Eliminates insertion loss Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for cable or busbar up to 104 x 40mm High isolation between primary and secondary circuits Easy installation Applications -AC Power Supplies or Motors True RMS sensing - the most accurate way to monitor power supply or input power -VFD Controlled Loads VFD output indicates how the motor and attached load are operating -SCR Controlled Loads Accurate measurement of phase angle fired or burst fired(time proportional) SCR's and switch mode rectifiers. Current measurement gives faster response than temperature measurement. -Renewable Energy Installations or Backup Batteries Continuous condition monitoring allowing automatic failure detection and prediction -Application Domain Energy and Automation Specification LEM Part Number AHR 800 B420 Technology Open Loop Hall Effect ROHS Yes Supply Voltage 20 - 50V Nominal Current (RMS + DC) 800 Amp Maximum Measurement Current (Peak) 2500 Amp Output 4-20mA Isolation 5.8kV (AC, 50Hz, 1 min) Bandwidth 20-6000Hz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style SFKC 2.5/4-ST-5.08-RF(Phoenix Contact) Unit Weight 650g Factory Pack Qty 6   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

ACSP-200-420, Loop Powered Split Core AC Current Transducer, 200 Amp AC, 4-20mA Average RMS Output, 31mm aperture, SCT011-200 Compact and versatile Loop Powered Split Core AC Current Transducer, Comes with 4-20mA/0-5V, or 4-20mA Average RMS Analogue Output Features ⌀31mm Aperture Split Core AC Average RMS Measurement +/-10V analogue output Busbar, or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Loop Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number ACSP-200-420 Technology AC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage Loop Powered  Nominal Current (DC) 200 Amp RMS Response Time < 200mS Output 4-20mADC Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Fastron HS212DR-F & FCR-400-40R, Three Phase, Phase Angle Controller, 4-20mA,0-10V,500K POT Input, 400VAC, 36 Amp @ 40 Deg C, Din Rail Mount 4-20mA, 0-10V or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number HS212DR-F & FCR-400-40R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 36 Amp (rms) per phase @ 40 Deg C Surge Capability 500Amp (peak) Special Feature Three Phase Proportional Controller Mounting Style DIN Rail Mount Load Voltage Range 350-400VAC +15% (460VAC Max) Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 100 x 135 x 130mm Unit Weight 1500g Factory Pack Qty 20   Datasheet FCR Series Voltage Regulators HS212 Datasheet

Read more less

D53TP50D + HS212, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, 20 Amp per phase @ 40 Deg C, 48-530VAC Load, LED Status Indicator Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number D53TP50D + HS212DR Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 20 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet D53TP Series 3 Phase SSR and Heatsink Mounted HS212 Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Trent A100P1000-4, Amptrap Semiconductor Fuse, 1000 Amp, 750VAC/1000VDC, Form 101, 100kA, Name Brand Replacement  Features Square Body DIN 43 653 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-A100P1000-4 Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (660V) Nominal Current (RMS + DC) 1000 Amp Tested Breaking Capacity 100kA @ 750VAC/1000VDC Dimensions 209 x 85.9mm Hole Centers  148-167mm  Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watts Dissipation 125W Termination Style M10 Unit Weight 1500g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Crydom CC4850W3VH, Dual Solid State Relay, 50 Amp x 2, 4-32VDC Control, 600VAC Output, 4 Screw Terminal, A Channel Left, B Channel Right, w/ IP20 Plastic Cover Features Ratings from 2 x 25A to 2 x 50 Amp @ 48-600VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number CC4850W3VH Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 15-32VDC Load Current 2 x 50 Amp (rms) Surge Capability 750 Amp (peak) Special Feature IP20, LED Status Indicator, Dual SSR, 1200V Transient Withstand Mounting Style Panel Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw and Molex 39500-0004 Unit Weight 89g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent H12D4840DE App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DC400D20 DC Solid State Relays Crydom Part Number Features Ratings from 10A to 40 Amp @ 200/400VDC Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DC400D20 Switching Type DC Load ROHS Yes (Details) Control Voltage 4-32VDC Load Current 20 Amp DC Surge Capability (10ms) 42 Amp DC Special Feature IP20 Cover Mounting Style Panel Mount Load Voltage Range 0 - 300VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent No direct equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

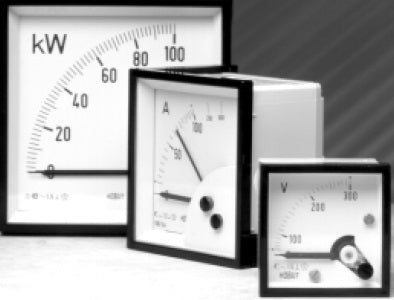

D72SD CT30/5 0/5/10 Moving Coil Ammeter, 0-30 Amp RMS Measurement, Class 1.5 Features Adjustable Display Scaling (Optional) PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Hobut Part Number D72SD CT30/5 0/5/10 Nominal Measurement Range 0 - 30 Amp AC Maximum Measurement Range 30 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM DHR 300 C420, Hall Effect Current Sensor, 300Amp , True RMS 4-20mA output Compact and versatile transducers for high AC and DC currents from 100 to 1000A True RMS with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V, Bandwidth: DC 20..6000 Hz Features VFD and SCR waveforms current measurement True RMS output 4-20mA current output Panel mounting Eliminates insertion loss Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for cable up to ?32mm High isolation between primary and secondary circuits Easy installation Applications -VFD Controlled Loads VFD output indicates how the motor and attached load are operating -SCR Controlled Loads Accurate measurement of phase angle fired or burst fired(time proportional) SCR's. Current measurement gives faster response than temperature measurement -Application Domain Energy and Automation Specification LEM Part Number DHR 300 C420 Technology Open Loop Hall Effect ROHS Yes Supply Voltage 20 - 50V Load Current (RMS + DC) 300 Amp Output 4-20mA Isolation 4kV (AC, 50Hz, 1 min) Bandwidth 20-6000Hz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy Level 3 Termination Style SFKC 2.5/4-ST-5.08-RF(Phoenix Contact) Unit Weight 260g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Fastron FSCR3L-100A, Three Phase Proportional Phase Control Module, 4-20mA,0-10V,1-5V,500K POT Input, 400VAC, 100 Amp Per Phase, Also referred to as 3 Phase Voltage Regulator 4-20mA,0-10V, or 1500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number FSCR3L-100A Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,1-5V,10K POT Proportional Input Load Current 100 Amp (rms) @ 40 Deg C Surge Capability 890Amp (peak) Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 180-400VAC +10% Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions L:105 x W:80 x D:75mm Unit Weight 400g Factory Pack Qty 20   Datasheet FSCR3L-100A

Read more less

Rotating Diode for Generators, 309URA160, Rotating Diode, 3/8" Top Stud, 3/4" Bottom Stud, Anode Stud User for Rotating Generator or Motor Applicatons 330 Amp Rating Datasheet Product Datasheet
