Fastron Electronics GT-AV7-A-1, AC Voltage Transducer, 0-600V AC input, 100-240VAC/DC aux, 4-20mA Average RMS output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-AV76-A-1 Control Output 4-20mA Average RMS Input 0-600VAC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics FAT150D420, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 4-20mA Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 4-20mA Output 24VDc Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT150D420 Technology 24mm Split Core AC Current Transformer Ratio 150/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

LEM HTRS 50-SBI, Railway Split Core DC Current Sensor, 50 Amp, 4-20mA Output Features Closed loop sensor using Hall Effect Din Rail or Panel Mounting Split core design for easy installation Insulated plastic case to UL 94-V0 Water resistant design rated to IP 67 Reverse polarity protected Advantages Very good linearity Excellent accuracy Current overload capability No insertion losses. Non - contact measurement (does not need a safety case) Applications Railway equipment Points condition monitoring Signal light indication Battery supplied applications Uninterruptable Power Supplies (UPS). Specification LEM Part Number HTRS 50-SBI Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 24V Aperture ø10mm Load Current (RMS + DC) 50 Amp Measuring Range +/- 100 Amp Overload Capacity (Ampere Turns) 30000 Amp Output 4-20mA Standards EN 50121-59EMC),EN 50155(temperature and humidity),EN61010-1/2 (safety) Bandwidth DC-30kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Accuracy 2% Termination Style Molex 436500300 Unit Weight 35g Factory Pack Qty 4 Datasheet Product Datasheet Application Notes FAQ

Read more less

LEM ART-B22-D125-SP3 + AI-PMUL - 3 Pcs, 3 Phase Rogowski Coil Set, Class 1, User Selectable 0.333v, 0.166v, True RMS 4-20mA, 0-20mA, 0-10V, 0-5V Outputs, Sensitivity, and Measurement Range, 12.5cm Diameter The universal Rogowski coil integrator AI-PMUL complements LEM’s flexible clip-around coil ART and ARU range. The design is based on digital processing to give combined dynamic range, accuracy and versatility of use. It offers a wide range of output signals both RMS and instantaneous. AI-PMUL is DIN rail mounted and can be stacked for multiphase application without spacing thanks to its low power dissipation. Input signal Accuracy Class 1 (IEC 61869-2) [1]. Linearity error ≤ 0.10 %. Protection degree IP2X. 35 mm DIN rail mounted. Push-in terminals. 4 selectable true RMS output signals: 0…20 mA, 4…20 mA, 0…5 V, 0…10 V. 2 selectable instantaneous output signals: 225 mV, 333 mV. 6 selectable sensitivities depending on Rogowski coil: 22.5, 70, 80, 85, 100, 120 mV/kA at 50 Hz. 12 selectable ranges: 100, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000, 4000, 5000 A. Ambient operating temperature −25...+70 °C. Advantages Compact design for DIN rail assembly High accuracy Class 1 (IEC 61869-2) Setup by user via Select / Edit buttons Clear status indication via bi-color led Applications MV/LV substations on LV side: Transformer Condition Monitoring Power metering: current measurement for active power calculation Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation Power quality monitoring: electrical loads and distribution system equipment Fault Detection, Isolation and Repair (FDIR): isolate the site of the fault Remote Terminal Units (RTU) Phasor Measurement Units (PMU) Standards IEC 61010-1: 2010 UL EMC: IEC 61326-1:2012 Options Cross Power Plug-in: side contacts to stack up to 3 Integrator modules and use only one power supply. Specification LEM Part Number ART-B22-D125-SP3 + AI-PMUL - 3 Pcs Function 3 Phase AC Current Measurement Measuring Range Selectable 5000,4000,2000,1500,1000,800,600,500,400,300,200,100Amp Sensitivity Selectable 22.5,70,80,85,100,120mV/kA @ 50 Hz Output Selectable; Signal Conditioned True RMS 0-20mA, True RMS 4-20mA, True RMS 5V, True RMS 10V or 225mV, 333mV Direct Output (1 Amp output coming soon) Frequency Measuring Range 50-1500Hz (15th Harmonic) Operating Voltage 10-32VDC Accuracy 1% from 25 to 5000 Amp Current Consumption 100mA (max) Dimensions 100mm x 78mm x 15mm (Integrator), 12.5cm Diameter (Coils) Mounting Din Rail Mount Integrator to Coil cable 3M Twisted and Screened Integrator to Meter cable User Supplied Shielded cable 1.5mm sqr, up to 6m long Operating Temperature -25°C - 70°C Storage Temperature -45°C to 80°C Isolation (50Hz, 1 min) 1.5kV True RMS Response Time 160-190ms Termination Style Push-in for 1.5mm sqr wire Weight 58g Factory Pack Qty 1 Certifications UL, ROHS Datasheet AI-PMUL Datasheet ART Series Datasheet Application Notes User Notice 1) The Rogowski coil can measure any primary current as there is no saturation effect. 2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts) 3) Frequency bandwidth and phase shift modelling schematic can be provided on request. 4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer) 5) Considering a primary conductor of at least ⌀ 15 mm, perpendicular and in contact with the Rogowski coil. 6) Considering an external conductor of at least ⌀ 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.

Read more less

Fastron FY3 Series, Phase/Burst Controller for Primary Control of Transformer (Phase angle mode only), Voltage/Current/Power Limit Modes, For 3 Wire or 4 Wire Loads, 400VAC, 50 Amps per Phase @ 50 Deg C, Modbus RTU Features Phase Angle, Distributed Burst, and Time Proportional Burst Control Functions Made in China, Low cost 3 Phase, or Single Phase, Angle/Burst Controller 4-20mA/0-10V/1-5V input Proportional Control Fully enclosed IP20 Phase Angle or Burst switching Aluminium Frame Removable Cover Modbus RTU Applications Electrical Ovens, Kilns, or Furnaces HVAC Heaters Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for HVAC or Industrial Environments   Specification Fastron Part Number FY3 Series Rated Operating Temperature 50°C SCR Configuration 3 Phase AC Switch Control Voltage 4-20mA/0-10V/0-5V Load Current 50-500 Amps Per Phase @ 50 Deg C Derating 2% per 1 Deg C (approx) Control Range 0-100% Alarms 1 x NO Relay Contacts Special Feature Internal Fuse, Current Limit, Power Limit Comms Modbus RTU Mounting Style Panel Mount Switching Voltage Range 400VAC +/-10% Supply Voltage 230VAC +/-10% Soft Start N/A Termination Style Screw Unit Weight 4kg (6kg Packed) Factory Pack Qty 1   Technical Docs Brochure User Guide Modbus Protocol Guide Modbus Register Map Video for How to Set Current/Voltage/Power limit

Read more less

LEM PCM 10-P Series Closed Loop DC Hall Effect Sensor for Point System Monitoring, Bipolar 4-20mA Output Features Closed loop sensor using Hall Effect Panel mounting Split core design for easy installation Insulated plastic case to UL 94-V0 Water resistant design rated to IP 67 Reverse polarity protected Advantages Very good linearity Excellent accuracy Current overload capability No insertion losses. Non - contact measurement (does not need a safety case) Applications Railway equipment Points condition monitoring Signal light indication Battery supplied applications Uninterruptable Power Supplies (UPS). Specification LEM Part Number PCM 10-P Technology Closed Loop Hall Effect ROHS Yes Supply Voltage 24V Aperture ø15.6mm Load Current (RMS + DC) 10 Amp Measuring Range +/- 20 Amp Overload Capacity (Ampere Turns) 30000 Amp Output 4-20mA Standards EN 50121-59EMC),EN 50155(temperature and humidity),EN61010-1/2 (safety) Bandwidth DC-1000Hz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C (50°C Continuous) Accuracy 0.5% Termination Style Switchcraft EN3L4M connector Unit Weight 120g Factory Pack Qty 4   Datasheet Product Datasheet Application Notes FAQ

Read more less

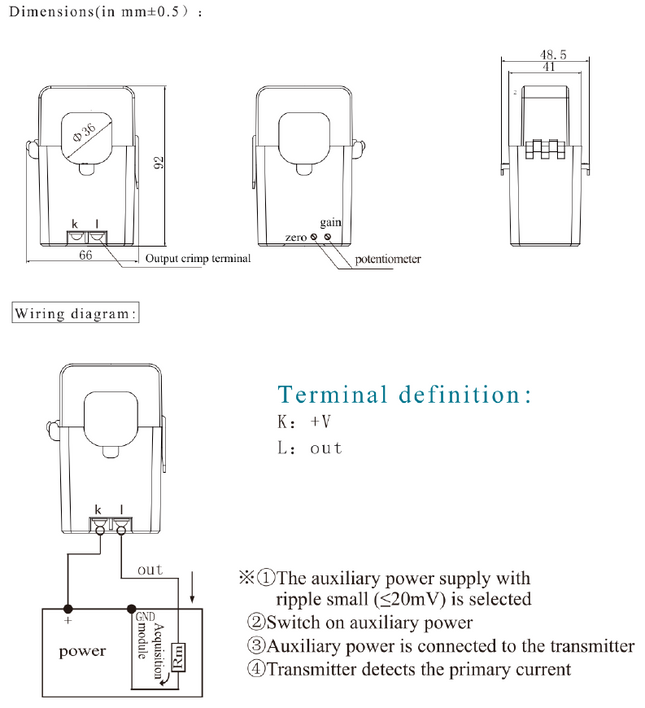

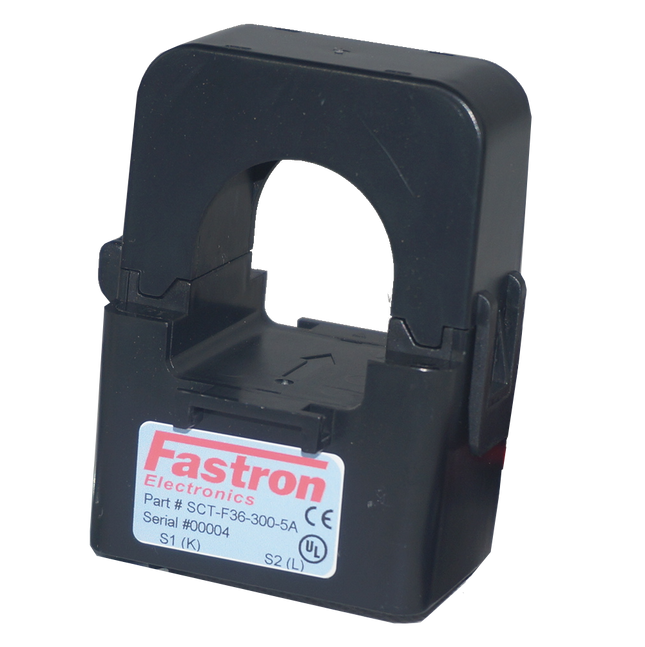

Fastron Electronics FAT100D420T, AC Current Transducer, 150Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version Features Quick Release 36mm Split Core System Cale Mount 4-20mA Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT150D420T Technology 36mm Split Core AC Current Transformer Ratio 150/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Rishabh Rish Con- CA-AVG-05-F-1-02-H, AC Current Transducer, 50Hz, 5A Full Scale, 4-20mA Output, 60-300VAC/DC Supply, without display Average RMS 4-20mA output Dual output version available 300mS response time PC 94 UL V0 Each unit needs just 22.5 x 100.9 mm depth DIN Rail cabinet space Specification Rishabh Part Number Rish Con-CA-AVG-05-F-1-02-H Measurement Output 4-20mA (Average RMS) Input 1 - 5 Amp 50/60Hz Overlaod (Continuous) 120% Overload (1 second) 150% Operating Temperature -40 - 70°C Supply Voltage 60 - 300VAC Accuracy 0.2% Response Time 250mS Termination Style Screw Mounting Style DIN Rail Mount Safety IP40/IP20 EN60529 Protection Class II EN61010 Weight 400g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

HS151DR-D2475, Din Rail Mount Solid State Relay with Heatsink, 4-32VDC Control Input, 24-280VAC Output, 42 Amps @ 40 Deg C ambient 4-20mA Proportional Phase Control Input Ratings from 25A to 100 Amp @ 70-280 VAC SCR output for heavy industrial loads Instantaneous turn-on outputs UL/CE/ROHS Compliant Includes Plastic IP20 Terminal Cover Direct bond copper substrate Direct power lead frame Epoxy free design Specification Crydom Part Number HS151DR + D2475 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4 - 32VDC Load Current @ 40 Deg C 42 Amp Surge Capability 910 Amp (peak) Special Feature N/A Mounting Style Din Rail Mount Load Voltage Range 24-280VAC Max Non Repetitive Peak Voltage 850 Vp Termination Style Screw Dimensions L:105mm x W:67.5mm x D:132mm Unit Weight 1050g Factory Pack Qty 20   Datasheets HS151DR Datasheet Series 1 Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here

Read more less

Current Transducer, AT-AA9-A-1, AC Current Transducer, Average RMS, 10 Amps, 100-240VAC/DC Aux, 4-20mA output output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA9-A-1 Control Output 4-20mA Average RMS Input 0-10 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

RCS-1200-0400, 0.333V 3 Phase 400Amp AC Measurement 4 Inch Rogowski Coils with Integrator, Class 1: The RCS-1200 three-phase flexible rope CT from Magnelab converts AC input current of up to 5000 amperes to an AC output of 0.333 volt. A 9 to 36 VDC power supply is required to operate these coils. The RCS-1200 comes with an integrator which includes flexible strain relief cables. Included is an 12 inch circumference rope CT with Integrator, and 8 feet of twisted pair (600V) output leads. Magnelab Coils come with 10 year warranty   Specification Magnelab Part Number RCS-1200-0400 Function AC Current Measurement Nominal Measurement Current (Ipn) 400 Amp RMS Measurement Range 10% - 130% if Ipn Frequency Measuring Range 50-1500Hz (15th Harmonic) Operating Voltage 9 - 36VDC Accuracy 1% from 25 to 500 Amp Phase Angle < 0.5 Degrees Coil Diameter (⌀) 4 Inch Coil Circumference 12 Inch Integrator to Coil Cable 8 Feet Shielded Maximum Voltage 600V (on bare conductor) Operating Temperature -15°C to 65°C Storage Temperature -45°C to 80°C Power Consumption < 2VA Overload 20,000 Amp (continuous) Termination Style Screw Weight 1200g Certification CE Factory Pack Qty 1 Certifications UL Recognized E96927 to IEEE C57.13, CAN/CSA 60044-1 Meets UL STD 61010-1, CAN/CSA C22.2 No. 61010 CE ROHS Datasheet Product Datasheet Application Notes RCS/RCT Series Installation Guide

Read more less

F115-4-220A, Panel Mount Single Phase Solid State Contactor, 70-480VAC, 220 Amp Switching, 90-280VAC or Control Contactor Style Modules Ratings from 50A to 350 Amp @ 70-533 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F115-4-220A Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 220 Amp (rms) @ 50 Deg C Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Panel Mount Fuse Kit DIN Rail Mount Fuse Kit DR2260D35U L:90 x W:22.5 x D:116mm 30-40 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F115-4-50A(D) L:110 x W:125 x D:185mm (Figure 2) 50-75 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F115-4-90A(D) L:155 x W:125 x D:185mm (Figure 2) 80-125 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F115-4-120A(D) L:210x W:125 x D:195mm (Figure 3) 80-125 Amp 660VAC Fuse Kit N/A F115-4-220A(D) L:155 x W:125 x D:195mm (Figure 4) 160-200 Amp 660VAC Fuse Kit N/A F115-4-250A(D) L:255 x W:125 x D:195mm (Figure 4A) 200-250 Amp 660VAC Fuse Kit N/A Datasheet F115_135 Series Datasheet
