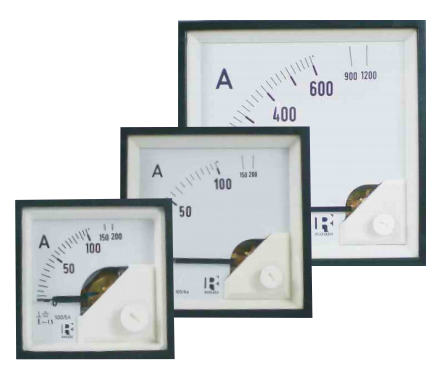

Rishabh DE48/400/5A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 48 x 48mm Panel Space 65mm Depth Specification Rishabh Part Number DE48/400/5A Nominal Measurement Range 0 - 400 Amp AC Maximum Measurement Range 400 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DS96/100A/60mVDC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/100A/60mV Nominal Measurement Range 0 - 100 Amp DC Shunt Input 0-60mV Unipolar Maximum Measurement Range 100 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DS72/250A/4-20mA, Moving Coil Ammeter 150Amp for 150A/4-20mADC Analogue Input Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96x96mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/250A/4-20mA Nominal Measurement Range 0 - 250 Amp DC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 300 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Iskra BQ2207-400RPM-0-10VDC, 96x96mm, 0-10VAC Input Voltmeter, 0-400rpm Yellow mark: 0-100rpm Red mark : 235-400rpm Shipversion Scale illumination Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Iskra Part Number BQ2207-400RPM-0-10V Nominal Measurement Range 0 - 10VDC Maximum Measurement Range 10VDC Over Range N/A Operating Temperature 0 - 50°C Scale (RPM) 0-400rpm Yellow mark: 0-100rpm Red mark : 235-400rpm Shipversion Scale illumination Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE48/100/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 48 x 48mm Panel Space 65mm Depth Specification Rishabh Part Number DE48/100/5A Nominal Measurement Range 0 - 100 Amp AC Maximum Measurement Range 100 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE48/200/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 48 x 48mm Panel Space 65mm Depth Specification Rishabh Part Number DE48/200/5A Nominal Measurement Range 0 - 200 Amp AC Maximum Measurement Range 200 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...200Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

LEM CV 3-200 Digital Voltage Transducer Flux Gate, Vpn = 140V, +/-15VDC, 10V output, 6kV Isolation  Features Bandwidth DC to 300kHz Closed loop transducer using Flux Gate Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive High Frequency Drives AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number CV 3-200 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 140V Measurement Range +/- 200V Output 10V @Vp(max) Isolation 6 kV Bandwidth DC-300 kHz Mounting Style Panel Mount Operating Temperature Range -25°C / 75°C Accuracy 1% Termination Style M5 Screw Unit Weight 650g Factory Pack Quantity 4   Datasheet Product Datasheet

Read more less

Iskra Doo WM3-6 230PB Three Phase Power Meter with Pulse Output & IR Comms 65 Amp direct connect, no CT's required Ultra slim 3 DIN IR Communication as standard Pulse Output Optional RS485 communication up to 19,200 bit/s True RMS values of currents and voltages Measurements of active, reactive power Accuracy class 1 The meter is intended for measuring, and monitoring single-phase electrical power networks. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals. Features : Measurement of Active and Reactive Power Optional Pulse Output RS485 Comms IR Comms Graphic LCD with illumination Multilingual support User-friendly PC MiQen software Specification Iskra Doo Part Number WM3-6 230PB Functions Energy Meter Supply Voltage 230V L-N, 400V L-L 5 Amp -20% +15% < 5VA Nominal Measurement Range 230V L-N, 5 Amp -20% +15% Maximum Measurement Range 230V L-N, 5 Amp -20% +15% Nominal Current Input 3 x 65 Amp AC Direct Connect Infra Red Output 19200 bit/s Tariff Input N/A (Optional) Accuracy Class 1 (I,U,F,PF,) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Dimensions 53.6 x 84 x 69.4mm (3 DIN) Pulse Output Yes Isolation 4kV RS485 (Optional) 1200-19200 b/s Weight 270g Certification UL, CSA, ROHS Factory Pack Qty 1 Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP52 (IP00 for terminals) in compliance with SIST EN 60529:1997 Operating Temperature -20 →+70 °C Datasheet Product Datasheet User Manual

Read more less

Rishabh DE72/50/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/50/5A Nominal Measurement Range 0 - 50 Amp AC Maximum Measurement Range 50 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...50Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE48/500/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 48 x 48mm Panel Space 65mm Depth Specification Rishabh Part Number DE48/500/5A Nominal Measurement Range 0 - 500 Amp AC Maximum Measurement Range 500 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...500Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DS72/400A/60mV DC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/400A/60mV Nominal Measurement Range 0 - 400 Amp AC Shunt Input 0-60mV Unipolar Maximum Measurement Range 400 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

VA-T60, Laser Distance Meter. Range 0.05 - 60M, Accuracy +/-2mm, 635Nm Laser, Class 2, 30 Measurement Storage Features Portable /Battery Powered 3 x AAA Range 0.05 - 60M Accuracy +/-2mm, 635Nm Laser Class 2 30 measurement storage 112x50x25mm Specification   Datasheet Datasheet
