Risbabh EM94-Z-V1-H-D, Panel Mount DC kWh Meter, Class 0.5, 50-150mV Shunt input, 60-300VDC, 2 Alarm/Pulse Outputs, RS485 & USB Comms, Single Line LCD Display, 60-300VAC/DC Aux Supply, Internal Logging 2 Pulse/Alarm Outputs 50-150mV Shunt Input, and nominal voltage 60-300VDC RS 485 communication up to 57,600 bit/s USB Port 8MB Internal Storage DC Measurement Only   The meter is intended for measuring, analysing and monitoring DC Power. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current,, energy, power.) from the measured signals.   Features : 96 x 96mm Panel Mount Accuracy class 0.5 Simple Menu RS 485 communication up to 57,600 bit/s USB Comms 8MB Internal Logger 60-300VAC/DC power supply Specification Rishabh Part Number EM94-Z-V1-H-D Functions kWh Meter, Energy Meter Supply Voltage 60-300VAC/DC Nominal Measurement Range 60-300VDC Maximum Measurement Range 60-300VDC Display Single Line LCD Pulse/Relay Output 2 Accuracy Class 0.5 (Energy) USB YES Real Time Clock 1min/month (30ppm) Isolation 3.5kV RS485 Modbus RTU YES 57,600bps Weight 450g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Environment   IP54   Safety Protection Class II Enclosure Material Mablex with fire protection to UL94-V-O. Self extinguishing EnclosureSize 96 x 96mm x 83.5mm (72mm behind panel)   Terminals Rising Cage 4mm² (12 AWG) cable max Humidity < 75% Non Condensing Operating Temperature -20 →+70 °C   Datasheet Product Datasheet Software Software User Manual Software Download Link Application Notes 1)Reading Data from Registers -> Download file 2)Maximum Memory Size -> Read below Max Available Memory Locations in 8MB Size = 273030 Actual parameter stored in Each log (Memory locations used) = Date +time+Number of parameter selected by user Considering your example for 2 parameters: Number of parameter selected by user = 2 (kwh & kVA) Actual parameter stored in Each log = 1(Date) +1(time)+ 2 (Parameters) = 4 (memory locations used per log) Maximum log that can be stored = Max Memory Location/Actual parameter stored in Each log =273030/4= 68257 Timelog Interval setting = 15 minutes Log in one day = (60 /Timelog Interval setting) * 24 =(60/15)*24 = 96 Logs Max Days = Maximum log that can be stored / log in one day = 68257 / 96 = 711 days = 1 Year & 11 Months = 23 Months.

Read more less

Fastron FDV-300-V05-24, DC Voltage Transducer, Din Rail Mount, 0-300VDC, 0-5V output, 24VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-300-V05-24 Analogue Output 0-5V Input 0 - 300VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 24VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Crydom DR24A06, Solid State Relay, 208-265VAC control, 6 Amp 24-280VAC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 6 Amp, 12 Amp 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR24A06 Switching Type AC ROHS Yes (Details) Control Voltage 208-265VAC Load Current 6 Amp (rms) Surge Capability (10ms) 285 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 50g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Similar part ks32-60-24z2-f41f-1z-c2-4  App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

TCD-H-3-K HEATING Temp Controller, 48x96mm,  230VAC, C/O Relay output, Type K Input. Encoder Control, Digital Display, 0-999 Deg C Pushbutton Encoder Setpoint 3-digit display (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated ON/OFF Relay, output, Optional cooling or time proprtional versions output available Each unit needs just 75 mm depth panel space Specification Fastron Part Number TCD-H-3-K Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Type K Thermocouple Control Mode Time Proportional Control Control Range 0- 999 Deg C Mounting Style 48x96mm Panel Mount Supply Voltage 230VAC Termination Style Screw Sampling Time 50ms Weight 270g Factory Pack Qty 1   Datasheet TCD/TCR/FC5 Datasheet TCD/TCR User Manual

Read more less

Hanyoung Nux UP8RD-2PA, Inductive Proximity Sensor M8 Cylindrical Unshielded, 2mm Sensing Distance (0-1.6mm Set), 12-24VDC PNP Output, Normally Open NO, Cable Type 800HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Fastron Part Number UP8RD-2PA Sensor Type High Freqency Oscillating Proximity Sensor M8 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 2mm (0-1.6mm Set) Frequency Response 800Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Hanyoung Nux UP8-RM1.5PA, Inductive Proximity Sensor M8 Cylindrical Shielded, 1.5mm Sensing Distance (0-1.2mm Set), 12-24VDC PNP Output, Normally Open NO, Cable Type 800HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP8-RM1.5PA Sensor Type Inductive Proximity Sensor M8 Cylindrical Shielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded YES Sensing Distance 1.5mm (0-1.2mm Set) Frequency Response 800Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Hanyoung Nux UP12RD-4NA-C, Inductive Proximity Sensor M12 Cylindrical Unshielded, 4mm Sensing Distance (0-3.2mm Set), 12-24VDC NPN Output, Normally Open NO, Connector TypeUP12RD-4NA-C, Inductive Proximity Sensor M12 Cylindrical Unshielded, 4mm Sensing Distance (0-3.2mm Set), 12-24VDC NPN Output, Normally Open NO, Connector Type 400HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part NumberFastron NArt Number UP12RD-4NA-C Sensor Type Inductive Proximity Sensor M12 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 400Hz Output Type 12-24VDC NPN Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, NPN:Navy Protection Class IP67 Approvals CE Weight 80g Factory NAck Qty 1 Datasheet Product Datasheet ??

Read more less

Meanwell APV-12-12, 12VDC 1A 12W Constant Voltage Universal Power Supply with Flying Leads, Used as LED Driver Supply Voltage: 120-370VDC or 85-264VAC Output Voltage: 12V Output Current: 1A Power Rating: 12W Connection: flying leads Short Circuit, Overload, Overvoltage Protected IP67 for internal wall mounting Datasheet Product Datasheet

Read more less

Crydom HS211 + D2440G, Panel or slide on Din Rail Heatsink, 3-32VDC Control Input, LED Status, 24-280VAC Output, 25 Amps Features Ratings from 25A to 125 Amp @24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Panel Mount Din Rail Mount Spec Part Number HS211 + D2440G Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 25 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Din Rail or Panel Mount Load Voltage Range 24-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS211 Series 1 AC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron Electronics SCT-Y24-250A/100mV, 250A/100mV Measurement, Class 1 Split Core CT's, Easy Click HY2.0 Connector for CRJ-31 RJ45 Splitter Features Quick Release Split Core System Cable Mount 100mV Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads with HY-2.0 Connector Applications Eastron Modular Metering Equipment Energy Monitoring Load Balancing Power Quality Measurements   Specification Fastron Part Number SCT-Y24-250A/100mV Technology Split Core AC Current Transformer Ratio 250/100mV Aperture Size ø 24 mm VA Rating 1VA Accuracy Class Class 1 Output 100mV (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (mVx) 250Amp x 1.2 Termination Style 0.9M Flying leads with HY-2.0 Connector Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide CRJ-31 Connector User Guide

Read more less

BA1-ND10-4A, DC Voltmeter, 48x24mm, 12-24VDC Aux Supply, 0-199VDC Input 3.5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Each unit needs just 40 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number BA1-ND10-4A Control Output 1 (Heat) N/A Control Output 2 (Cool) N/A Input 0-199.9V Alarm N/A Option 1 N/A Mounting Style 48 x 24mm Panel Mount Supply Voltage 5VDC Termination Style Screw Weight 100g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet BA1 Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

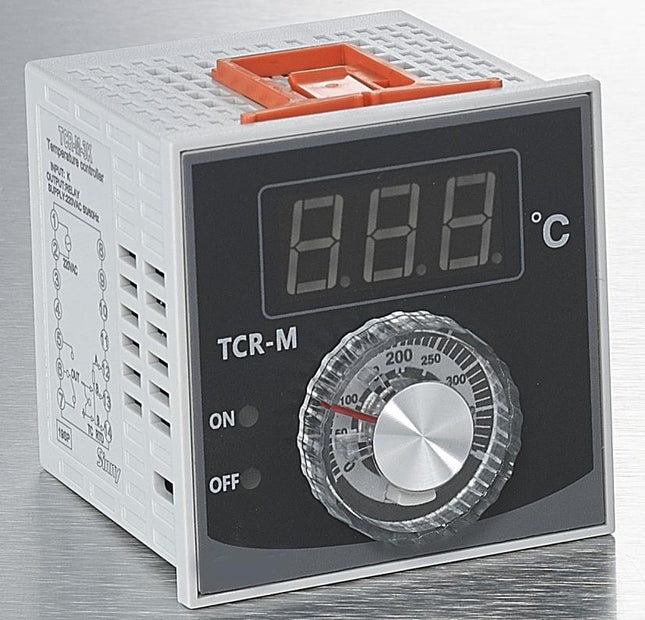

TCR-M-3-PT HEATING Temperature Controller, Analogue Dial, 72x72mm 230VAC, C/O Relay output, PT100 RTD Input, 0-400 Deg C 3-digit display (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated ON/OFF Relay, output, Optional COOLING or time proprtional versions output available Each unit needs just 75 mm depth panel space Specification Fastron Part Number TCR-M-3-PT Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Type K Thermocouple (0-400 Deg C) Control Mode Time Proportional Control Mounting Style 72x72mm Panel Mount Control Range 0-400 Deg C Supply Voltage 230VAC Termination Style Screw Sampling Time 50ms Weight 270g Factory Pack Qty 1   Datasheet TCR Datasheet and User Manual
