Iskra Doo KCK25-10-230-50, Capacitor Duty Contactor 600VAC @ 25 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK25-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 25kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 900g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Trent FSJ600D80-L, Solid State Relay, DC 4-32VDC control, 80A, 3-600VDC Load, IGBT Output Features Ratings from 7A to 80 Amp @ 3-600VDC IGBT/Mosfet output for reliable DC switching Multiple modules can be wired in parallel for higher currents CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec TRENT Part Number FSJ600D80-L Switching Type DC Load Control Voltage 4-32VDC Load Current 80 Amp DC Surge Capability (10ms) 240 Amp DC Special Feature LED Indicator Mounting Style Panel Mount Load Voltage Range 3-600VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet   App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

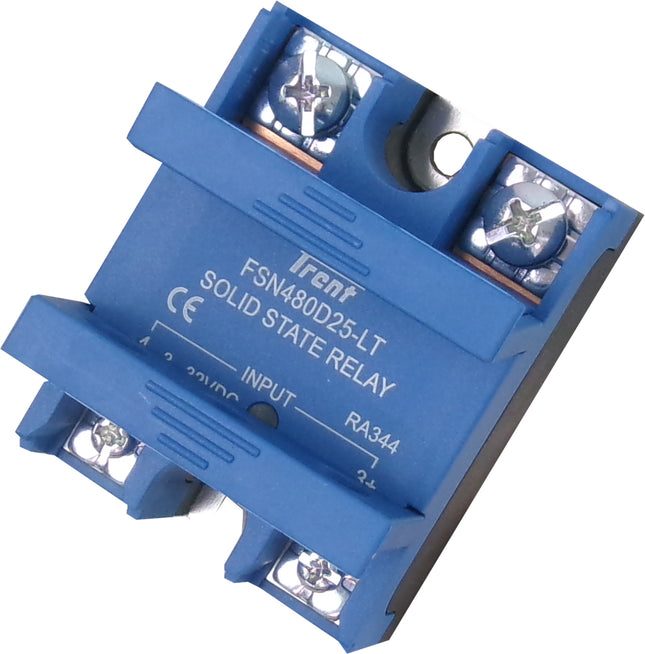

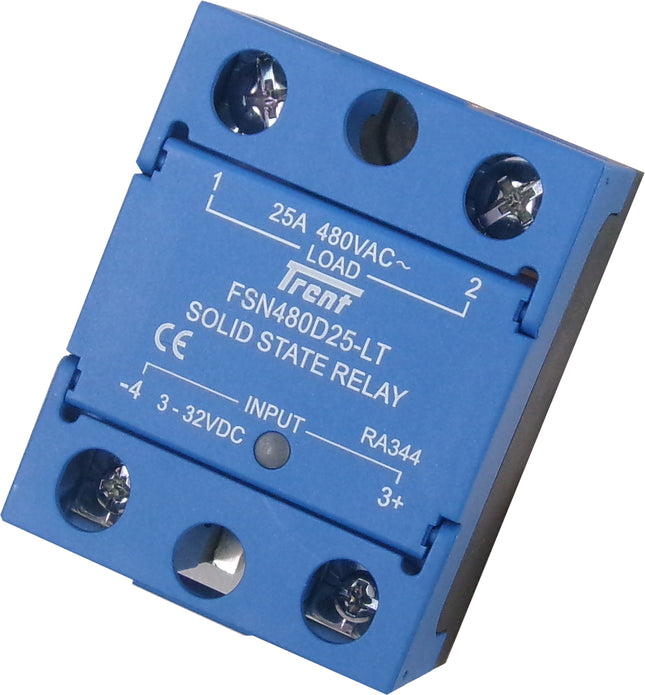

Trent FSN480D40-LT, Solid State Relay, Single Phase 3-32VDC Control, 40A, 24-480VAC Load, In built RC Snubber and Transient Voltage Supppresion Features • Ratings from 25A to 125 Amp @ 24-530 VAC • SCR output for heavy industrial loads • Zero voltage or instantaneous turn-on outputs • CE Compliant to EN60950-1 • AC & DC control types • Direct bond copper substrate • EMC compliant to Level 3 • Direct power lead frame Spec TRENT Part Number FSN480D40-LT Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 40 Amp (rms) Surge Capability 500 Amp (peak) Special Feature None Mounting Style Panel Mount Load Voltage Range 24-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
