Fastron FC5-L-W-2-G-4 PID Controller, 24VDC with 2 Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 96x96mm, Dual Relay and SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FFC5-L-W-2-G-4 Control Output Relay and SSR (Dual Ouptut) Input Multirange Type K, J, E,S,T,R, Pt100, Cu50/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 Alarms Mounting Style 96x96mm Panel Mount Supply Voltage 24VDC+/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Crydom DP4RSB60E40B5, DC Motor Reversing Contactor, 40 Amp, 18-32VDC control, 48VDC Load, 0.2s Soft Start, 0.5s Dynamic Brake Features 40 Amp DC Semiconductor Motor Controller Load voltage range up to 48VDC Optional Start/Stop Ramp/Break Panel Mount LED Forward and Reverse input status indicator 18-32VDC or 4.5-15VDC control C-UL-US Listed, CCC Certified, IEC Rated, CE & RoHS Compliant, Horsepower Rated Spec Crydom Part Number DP4RSB60E40B5 Switching Type DC Load Approvals ROHS,UL,CE,IEC Control Voltage 18-32VDC Load Current 40 Amp DC Surge Capability (10ms) 140 Amp DC Special Feature FWD and REV LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 48VDC EMC Compliant Level 3 Termination Style Screw Unit Weight 350g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

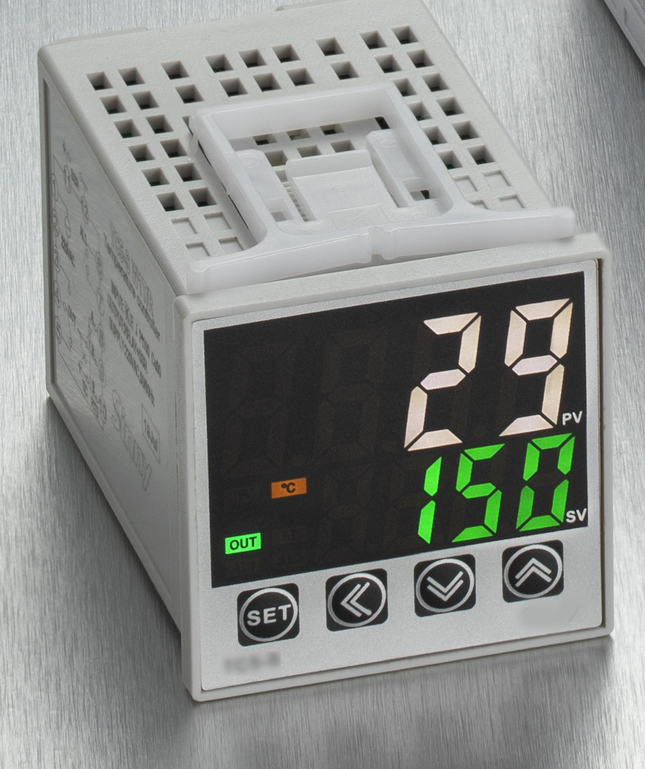

Fastron FC5-S-1A-1-G-4-C PID Controller, 24VDC with 1 Alarm, RS485, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 48x48mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-S-1A-1-G-4-C Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 standard (Excludes 48x48mm with SSR/Relay output) Mounting Style 48 x 48mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet Datasheet User Manual Modbus Protocol FC5 Communication Protocol

Read more less

Eastron Europe SDM120CTModbus-MID, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1/Class B, 5 Amp CT Connect, w/ 2 x pulse outputs and RS485 Comms, MID Approved 5 Amp CT Connect 1 x Configurable Pule Output (via Modbus) 1 x Fixed Pulse Output (1000imp/kwh) RS 485 communication up to 38,400 bit/s as standard Optional Mbus Model available True RMS values of currents and voltages   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy Class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM120CTModbus-MID Functions Single Phase Energy Meter Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA Nominal Measurement Range 230V L-L 230V L-N, 45 Amp Maximum Measurement Range 276V L-L 230V L-N, 45 Amp Nominal Current Input 5 Amp CT Pulse Output 1 x 1000imp/kwh, 1 x Configurable 60/100(default)/200ms Primary CT Ratio 5,10,20,30,40,50,75,100,125,150,200,250,300,400,600 Amp only Accuracy Class 1/ Class B (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 24mm x 100mm x 66mm (1 module wide) Isolation 4kV RS485 2400-38400 b/s Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 6 Modules Operating Temperature -20 →+70 °C   Datasheet Product Datasheet User Manual Modbus Protocol Setup Video Modbus Utility EEM Meter Setting Software Utility

Read more less

Crydom HS501DR + CWD2450P, Panel or Din Rail Mount Heatsink, 3-32VDC Control Input, LED Status, Varistor,  High Surge, 24-280VAC Output, 10 Amps Features Ratings from 25A to 125 Amp @24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS501DR + CWD2450P Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 10 Amp (rms) @ 40 Deg C Surge Capability 850 Amp (peak) Special Feature LED Status Indicator, High Surge, Overvoltage Protection Mounting Style Din Rail or Panel Mount Load Voltage Range 24-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:79.9mm x W:45mm x D:40.3mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS501DR CWD2450P Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

H71/110M + D53TP50D Three Phase Solid State Relay 4-32VDC Control, 3 x 13Amp, 48-530VAC Load Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Specification Crydom Part Number H71/110M + D53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 13 Amp (rms) per Phase @ 50 Deg C Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Din Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Dimensions L:110mm x W:100mm x D:90mm Termination Style Screw Weight 650g Factory Pack Qty 10   Datasheet H71 Datasheet D53TP Series Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here

Read more less

Crydom HS211 + D2440G, Panel or slide on Din Rail Heatsink, 3-32VDC Control Input, LED Status, 24-280VAC Output, 25 Amps Features Ratings from 25A to 125 Amp @24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Panel Mount Din Rail Mount Spec Part Number HS211 + D2440G Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 25 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Din Rail or Panel Mount Load Voltage Range 24-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS211 Series 1 AC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron FDV-15-420-24, Battery DC Voltage Transducer, Din Rail Mount, 0-15VDC, 4-20mA output, 24VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-15-420-24 Analogue Output 4-20mA Input 0-15VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 24VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Northern Design Multicube Modular Master Single and 3 Phase Power Meter with RS485 Up to 20 Meters in 1 with additional modules Minimum 2 x 3 Phase Circuits with measurement module Master Unit of Modular Multicube System Optional 12 way pulse/alarm digital output modules Nominal current up to 0.383V (For 0.333V CT Input) and nominal voltage up to 240V L-N 415V L-L Graphic Display Optional RS485 or Ethernet communication up to 19,200 bit/s True RMS measurement of currents and voltages The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, reactive power, power factor, harmonics, etc.) from the measured signals. Features : 20 Meters in same space as 4 traditional meters Expandable to 20 x 3 Phase or 60 x Single Phase Circuits Accuracy class 1 In Built Logger Simple Menu Optional MODBUS RTU RS485 communication up to 19,200 bit/s or Ethernet communication 5 Year Warranty 240V AC power supply Specification Northern Design Part Number Multicube Modular Master with Logger Functions kWh Meter, Energy Meter, Power Quality, Network Recorder Supply Voltage 240VAC < 15VA Nominal Measurement Range 415V L-L 240V L-N, 0.333V Maximum Measurement Range 480V L-L 280V L-N, 0.383V Display Graphic LCD Pulse Output 12 (Optional) Accuracy Class 1 (kW,kWh) Class 1(Active), Class 2 Reactive Ethernet Optional Logger Optional Isolation 2.11kV RS232/RS485 Modbus RTU RS485 2400-19200 b/s Weight 900g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Environment IP54 Safety Protection Class II Enclosure Material ABS with fire protection to UL94-V-O. Self extinguishing EnclosureSize 164 x 96mm x 100mm Terminals Rising Cage 4mm² (12 AWG) cable max Humidity < 75% Non Condensing Operating Temperature -20 →+70 °C Datasheet Product brochure User manual Wiring Diagram Suitable 0.333V CT's Split Core CT's

Read more less

VX2-UMMA-A2, Temp Controller, 48x96mm, 100-240VAC, Multirange Input, Relay Output, Relay Cooling Output, 2 Alarms Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX2-UMMA-A2 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) Relay Cooling 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 N/A Mounting Style 48 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 350g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Fastron Electronics BTCS/R-M-A2-DS, PID Controller 48x48mm, 85-265VAC, Relay Output 2 Alarms, SSR Cooling, Multirange TC/RTD/Relay 3 Amp (Resistive)Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32 Step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Part Number BTCS/R-M-A2-DS Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (Optional Linear Voltage/Current other than Relay 3 Amp (Resistive)Refer to datasheet) Option 1 2nd Alarm Option 2 SSR Cooling Mounting Style 48x48mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCR/R-M1-A2-DS-C5, PID Controller 48x96mm, 15-50VDC, Relay Output 2 Alarms, SSR Cooling, RS485 Modbus Comms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Dust-proof IP56 (front panel only) Optional 32-step pattern (for SV and time) is a standard feature CE Approved Each unit needs just 80 mm depth panel space Specification Fastron Electronics Part Number BTCR/R-M1-A2-DS-C5 Control Output Relay 3 Amp (Resistive) Input Multirange TC/RTD/4-20mA (Optional Linear voltage/current other than 4-20mA. Refer to datasheet) Option 1 2nd Alarm Option 2 RS485 Modbus RTU, SSR Cooling Mounting Style 48 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 450g Factory Pack Qty 1 Yes UL Yes CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments
