H-30-2-24, Split Core Hall Effect DC Current Transducer, 0-30 Amp DC, 4-20mA unipolar output, 31mm aperture, 24VDC supply Compact and versatile Split Core DC current sensor, 0-30 Amp DC, 4-20mA Unipolar Output Features ⌀31mm Aperture Split Core DC Unipolar Measurement 4-20mA analogue output Busbar, or DIN Rail Mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number H-30-2-24 Technology DC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage 24VDC Nominal Current (DC) 0-30 Amp Response Time < 200mS Output Unipolar 4-20mA Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth DC Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

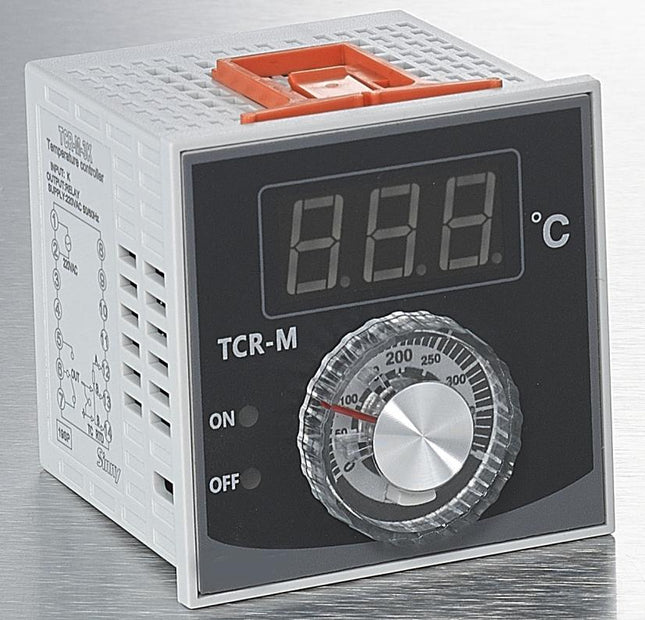

TCR-M-2-K COOLING Temperature Controller, Analogue Dial, 72x72mm, 230VAC, C/O Relay output, Type K Input, 0-400 Deg C 3-digit display (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated ON/OFF Relay, output, Optional COOLING or time proprtional versions output available Each unit needs just 75 mm depth panel space Specification Fastron Part Number TCR-M-2-K Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Type K Thermocouple Control Mode Cooling ON/OFF Control Mounting Style 72x72mm Panel Mount Control Range 0-400 Deg C Supply Voltage 230VAC Termination Style Screw Sampling Time 50ms Weight 270g Factory Pack Qty 1   Datasheet TCR Datasheet and User Manual

Read more less

BH-100-2-24, Split Core Hall Effect DC Current Transducer, +/-100 Amp DC, 4-20mA Bipolar output, 31mm aperture, 24VDC supply Compact and versatile Split Core DC current sensor, +/100 Amp DC, 4-20mA Bipolar Output Features ⌀31mm Aperture DC Bipolar Measurement 4-20mA analogue output Busbar, or DIN Rail Mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Kit available Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number BH-100-2-24 Technology DC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage 24VDC Nominal Current (DC) +/-100 Amp Response Time < 200mS Output Bipolar 4-20mA Analogue Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth DC Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Eastron Europe DCM230 1-2-1-1 V2, DIN Rail Mount DC kWh Meter, 1000VDC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved 45/60/75mV Shunt Connect RS 485 communication up to 38,400 bit/s as standard 1 x Pulse Outputs (1 Configurable) Bidirectional Measurement   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records DC Current and Voltage (DC Power) value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, energy, power) from the measured signals.   Features : Accuracy class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number DCM230 1-2-1-1 V2 Functions DC Energy Meter Supply Voltage 9-60VDC Nominal Measurement Range 5-300VDC,5-600VDC,5-1000VDC (See version 1 Maximum Measurement Range 5-1000VDC Nominal Current Input Shunt up to 2000Amp See our DC Current Shunt Section for Suitable Shunt Pulse Output 1 x Configurable 60/100/200ms Tariff Input N/A Accuracy Class 1 (I,U,kW,kWh) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 36mm x 100mm x 66mm (2 modules wide) Isolation 4kV RS485 2400-38400 b/s Weight 250g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Safety IP51(Indoor) Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 4 Modules Operating Temperature -20 →+70 °C   Documents Product Datasheet User Manual Modbus Utility EEM Meter Setting Software Utility

Read more less

TRENT TGD-2PL C 6-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 6 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-2PL C 6-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 6 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

Risbabh LM1360-MA4L-4-3-01-02-R-H-2, Panel Mount kWh Meter, Class 0.2S, 1/5Amp input, 2 Pulse Outputs, RS485 Comms, Three Section LCD Display 2 Pulse Outputs Nominal current up to 1.2/6 A (For 1/5A CT Input) and nominal voltage up to 240V L-N Three Section Display RS 485 communication up to 19,200 bit/s RMS values of currents and voltages Measurements of active, reactive, apparent power and power factor THD up to 31sth Harmonic 85 Parameter Measurement The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals. Features : 96 x 96mm Panel Mount Accuracy class 0.2 Simple Menu RS 485 communication up to 19,200 bit/s MODBUS communication protocol 240V AC power supply Specification Rishabh Part Number LM1360-MA4L-4-3-01-02-R-H-2 Functions kWh Meter, Energy Meter Supply Voltage 240VAC < 5VA Nominal Measurement Range 600V L-L 350V L-N, 5 Amp Maximum Measurement Range 600V L-L 350V L-N, 6 Amp Display Three Line LCD Pulse Output 2 (input or output) Accuracy Class 0.2S (kW,kWh) Class 0.5(Active) Class 2(kVar,PF) Battery Backup N/A Real Time Clock 1min/month (30ppm) Isolation 3.5kV Ethernet Modbus RTU Over TCP/IP 2400-19200 b/s Weight 450g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Environment IP54 Safety Protection Class II Enclosure Material Mablex with fire protection to UL94-V-O. Self extinguishing EnclosureSize 96 x 96mm x 83.5mm (72mm behind panel) Terminals Rising Cage 4mm² (12 AWG) cable max Humidity < 75% Non Condensing Operating Temperature -20 →+70 °C Datasheet Product Datasheet Software Software User Manual Software Download Link Application Notes 1)Reading Data from Registers -> Download file 2)Maximum Memory Size -> Read below Max Available Memory Locations in 8MB Size = 273030 Actual parameter stored in Each log (Memory locations used) = Date +time+Number of parameter selected by user Considering your example for 2 parameters: Number of parameter selected by user = 2 (kwh & kVA) Actual parameter stored in Each log = 1(Date) +1(time)+ 2 (Parameters) = 4 (memory locations used per log) Maximum log that can be stored = Max Memory Location/Actual parameter stored in Each log =273030/4= 68257 Timelog Interval setting = 15 minutes Log in one day = (60 /Timelog Interval setting) * 24 =(60/15)*24 = 96 Logs Max Days = Maximum log that can be stored / log in one day = 68257 / 96 = 711 days = 1 Year & 11 Months = 23 Months.

Read more less

Crouzet BM2R08MV1 Syr-Line Single Pole Multifunction Timer With DPDT CO Contacts BM1R Timers Syrline 17.5 mm - 2 Relays 8A : Multi-function (12 functions) Multi-range (0.5s - 10days) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input 3-wire PNP sensor compatible Multifunction Timers Includes The Following : Function A Delay on energisation 1 relay Function Ac Timing after closing and opening of control contact 1 relay Function At Timing on energisation with memory 1 relay Function B Timing on impulse one shot 1 relay Function C Timing after impulse 1 relay Function D Flip-flop Pause start 1 relay Function Di Flip-flop Pulse start 1 relay Function H Timing on energisation 1 relay Function Ht Delay on energisation with memory 1 relay Function N Watchdog Function Tl Timed impulse relay Function TL Impulse relay Specification Crouzet Part Number BM2R08MV1 (Syr-Line Timer Double Pole Multifunction, 12 - 240VAC/DC, 17.5 mm) Function Multifunction Timer A - Ac - At - B - C - D - Di - H - Ht -N - TL - Tt Nominal Voltage 12 → 240 V AC/DC Digital Output 2 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp R1 = Follows Timing, R2 = Instantaneous Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.5→10s, 0.05→1min, 0.5→10min, 0.05→1h, 0.5→10h, 0.05→1day, 0.5→10days Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Certification CE, cULus,CCC, ROHS, Reach, WEEE Factory Pack Qty 1 Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 Datasheet Product Datasheet

Read more less

Schurter 4304.4022 (FKI2-50-2/I), IEC Appliance Inlet C14/M with 1 Stage EMC (RFI) Line Filter Features Panel Mount : Screw-on mounting from front side 4 Functions : Appliance Inlet Protection class I, EMC Line Filter 1 Stage, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 2-pole Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number 4304-4022 (FKI2-50-2/I) Rated Voltage 250V Rated Current 2A Filter Stages 1 Stage Standard Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder 2 Pole Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 260g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Shinko WCL13A-AA/MM Series Dual Loop Digital Indicating Controllers Differential control, Tank level control, converter function are standard features 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 9-step pattern (for SV and time) is a standard feature UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant (Details) Note the WCL13A Series Requires Open Ring Lug ask-002-1 or Touch Proof ask-001-1 Terminal base to function. Specification Shinko Part Number WCL13A-AA/MM Control Output 1 4 - 20mA Control Output 2 4 - 20mA Input Multirange (refer to datasheet) Option None Mounting Style Din Rail Mount Supply Voltage 100 - 240VAC Termination Style Screw Weight 180g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet WCL Series Brochure WCL 2014 Additions Brochure WCL Series User Manual Delivery 2-3 weeks delivery if not in stock

Read more less

100 Deg C Normally Closed Thermal Switch 10 Deg C Hysteresis, +/-2% Tolerance, Flange Mount, KSD302, R20 Datasheet Product Datasheet

Read more less

FBS LCD 24/4M, 24VDC Surge Protection Device for IT Systems, LPZ 0A-2 of higher, 10kA   Specifications Telebahn part number FBS LCD 24/4M Nominal Voltage 24VDC No of Poles 4 Category IEC / EN / VDE Type 2 Location of use Communication/Signal Lines Protection modes L1+/L1-, L2+/L2- , for  Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 10kA (8/20uS)10KA) Max, 20kA (8/20uS)2.5KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 120g Standards IEC 61643-21; EN 61643.21; GB 18802.21   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

Timonta Series FKV2-55-1/l, IEC Inlet w/ 1 Stage EMC (RFI) line filter, w/ 2 Pole 5x20 Fuse holder 250VAC, 1 Amp Datasheet Product Datasheet
