Search results for "digital-mustimeter"

Rishabh DE96/500/1A, Moving Iron Ammeter, 500/1A, 96 × 96mm, Class 1.5 Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/500/1A Nominal Measurement Range 0 - 500 Amp AC Maximum Measurement Range 500 Amp Over Range Isn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

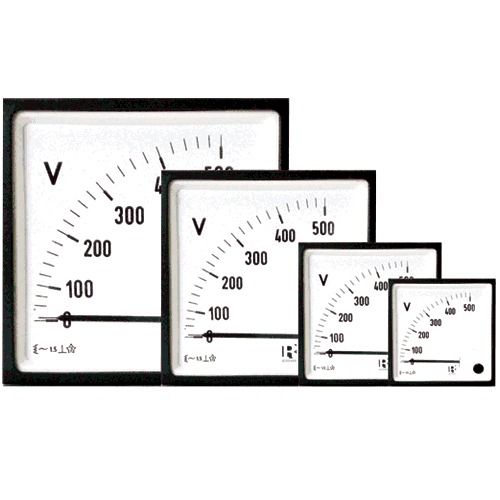

Rishabh DS72/200VDC, Moving Coil Voltmeter 200VDC, 72 x 72mm Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72x72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/200VDC Nominal Measurement Range 200VDC Maximum Measurement Range 240VDC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 120g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS48/120VDC, Moving Coil Voltmeter 120VDC, 48 x 48mm Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 48 x 48mm Panel Space 65mm Depth Specification Rishabh Part Number DS48/120VDC Nominal Measurement Range 120VDC Maximum Measurement Range 120VDC Over Range Ipn x 1.2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 120g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DE96/110/1000VAC, 96x96mm, 0-110VAC Input Voltmeter, 1000VAC Scale Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/110/1000VAC Nominal Measurement Range 0 - 110VAC Measurement Scale 1000VAC Over Range x1.2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS48/20A/75mV, Moving Coil Ammeter 20Amp for 20A/75mVDC Shunt Connect Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS48/20A/75mV Nominal Measurement Range 0 - 20 Amp DC Shunt Input 0-75mV Unipolar Maximum Measurement Range 20 Amp DC Over Range Ipn x 2 Operating Temperature 0 - 20°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 48 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS96/100A/4-20mADC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/100A/4-20mA Nominal Measurement Range 0 - 100 Amp DC Shunt Input 0-4-20mA Unipolar Maximum Measurement Range 100 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

LEM DVL 750 Digital Voltage Transducer, Vpn = 750V, 50mA output, +/-15...24VDC powered, 8.5kV Isolation Features Bandwidth DC to 14kHz Digital Transducer (ASIC based) Closed loop transducer using Hall effect Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DVL 750 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 750V Measurement Range +/- 1125V Output 50 mA @Vpn Isolation 8.5 kV Bandwidth DC-14 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style M5 Screw Unit Weight 270g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Rishabh DE96/300/1A, Moving Iron Ammeter, 300/1A, 96 × 96mm, Class 1.5 Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/300/1A Nominal Measurement Range 0 - 300 Amp AC Maximum Measurement Range 300 Amp Over Range Isn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

VA8080, Sound Level Meter. Range 0-60dB/50-80dB/70-100dB/90-120dB, Accuracy 1.5dB (0-94dB). Bandwidth 31.5Hz - 8kHz, Frequency Weighting A, Resolution 0.1dB, Response Time 0.25s Features Portable /Battery Powered 3 x AAA Range 30-80dB/70-120dB Accuracy 30-45dB Reference Merely: 45dB +/-3dB; 60-120dB +/-2dB Bandwidth 31.5Hz - 8kHz, Frequency Weighting A Resolution 0.1dB Response Time 0.25s (analogue bar) 0.75s Digital Specification Datasheet Datasheet

Read more less

LEM DVL 1000 UI Digital Voltage Transducer 1000V Input, 4-20mA output, +/- 15V…24VDC, 8.5kV Isolation Features Bandwidth DC to 14kHz Multi Range through pin selection Closed loop transducer using Hall effect Compact and versatile Panel Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Voltage overload capability Low power consumption Applications Railway substation or locomotive AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number DVL 1000 UI Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/-15..24 VDC Bipolar, Isolated Primary Nominal Voltage (RMS + DC) +/- 1000V Measurement Range +/- 1500V Output 4 - 20mA Isolation 8.5 kV Bandwidth DC-14 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 70°C Accuracy 1% Termination Style M5 Screw Unit Weight 270g Factory Pack Quantity 4 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Rishabh DS96/500A/4-20mADC, Moving Coil Ammeter 500Amp AC/DC Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/500A/4-20mA Nominal Measurement Range 0 - 500 Amp AC/DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 500 Amp Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DE96/300/5A, Moving Iron Ammeter, 300/5A, 96 × 96mm, Class 1.5 Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/300/5A Nominal Measurement Range 0 - 300 Amp AC Maximum Measurement Range 300 Amp Over Range Isn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
