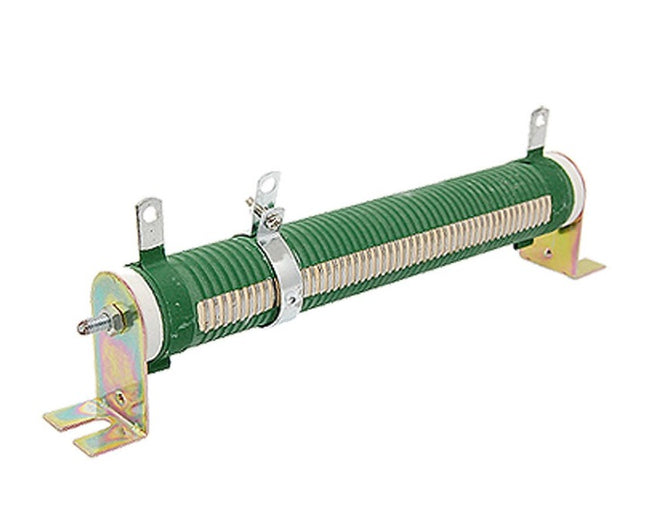

HTR100W168RADJ, 680 Ohm 100W Wire Wound Adjustable Resistor Tolerance +/-5% Comes with Mounting Hardware Other Sizes and Ratings available on request. Datasheet Product Datasheet Other Available Ratings   TYPEDESIGNATION VOLTAGERATING250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARDRESISTANCERANGE   LENGTH OUTSIDEDIAMETER APPROX O.D.WHEN COATEDINCL. BAND INSIDEDIAMETER HOLE CENTRESFORMOUNTING FEET   MIN MAX ROUNDFORMERS HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 OVAL HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

HTR500-400OHM, 400 Ohm 500W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings   TYPEDESIGNATION VOLTAGERATING250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARDRESISTANCERANGE   LENGTH OUTSIDEDIAMETER APPROX O.D.WHEN COATEDINCL. BAND INSIDEDIAMETER HOLE CENTRESFORMOUNTING FEET   MIN MAX ROUNDFORMERS HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 OVAL HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

120RHTR750AHBMH, 120 Ohm 750W Adjustable Resistor (Rheostat) Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet

Read more less

HTR50-400OHM, 400 Ohm 50W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings TYPE DESIGNATION VOLTAGE RATING 250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARD RESISTANCE RANGE LENGTH OUTSIDE DIAMETER APPROX O.D. WHEN COATED INCL. BAND INSIDE DIAMETER HOLE CENTRES FOR MOUNTING FEET MIN MAX R O U N D F O R M E R S HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 O V A L HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

HTR50-650OHM, 650 Ohm 50W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings   TYPE DESIGNATION VOLTAGE RATING 250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARD RESISTANCE RANGE   LENGTH OUTSIDE DIAMETER APPROX O.D. WHEN COATED INCL. BAND INSIDE DIAMETER HOLE CENTRES FOR MOUNTING FEET   MIN MAX R O U N D F O R M E R S HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 O V A L HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

HTR50-3KOHM, 3KOhm 50W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings   TYPE DESIGNATION VOLTAGE RATING 250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARD RESISTANCE RANGE   LENGTH OUTSIDE DIAMETER APPROX O.D. WHEN COATED INCL. BAND INSIDE DIAMETER HOLE CENTRES FOR MOUNTING FEET   MIN MAX R O U N D F O R M E R S HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 O V A L HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

HTR150-5OHM, 5 Ohm 250W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings TYPE DESIGNATION VOLTAGE RATING 250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARD RESISTANCE RANGE LENGTH OUTSIDE DIAMETER APPROX O.D. WHEN COATED INCL. BAND INSIDE DIAMETER HOLE CENTRES FOR MOUNTING FEET MIN MAX R O U N D F O R M E R S HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 O V A L HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

HTR100-680OHM, 680 Ohm 100W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings   TYPEDESIGNATION VOLTAGERATING250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARDRESISTANCERANGE   LENGTH OUTSIDEDIAMETER APPROX O.D.WHEN COATEDINCL. BAND INSIDEDIAMETER HOLE CENTRESFORMOUNTING FEET   MIN MAX ROUNDFORMERS HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 OVAL HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less
