Water Coolers
-

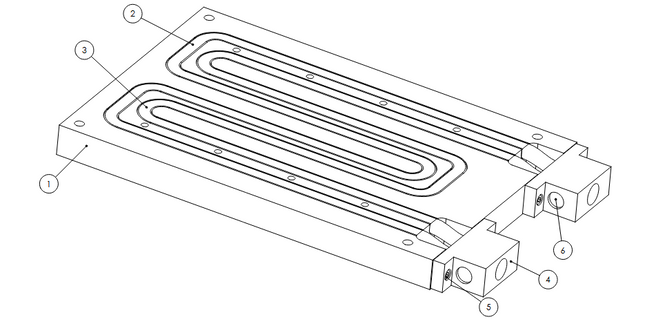

WCP195x23/290/G DIS Water Cooler Block for 140mm Isolated Modules including IGBT & Diodes and SCR's
WCP195x23/290/G DIS Water Cooler Block for 140mm Isolated Modules including IGBT & Diodes and SCR's 8400W Maximum dissipation 20 L/min 112 Deg C maximum cold plate temp Outlet coolant temperature 71.5 Deg C Thermal Rating Refer to datasheet Datasheet Product Datasheet Thermal Analysis
$1,050.00
$1,239.00 inclGST -

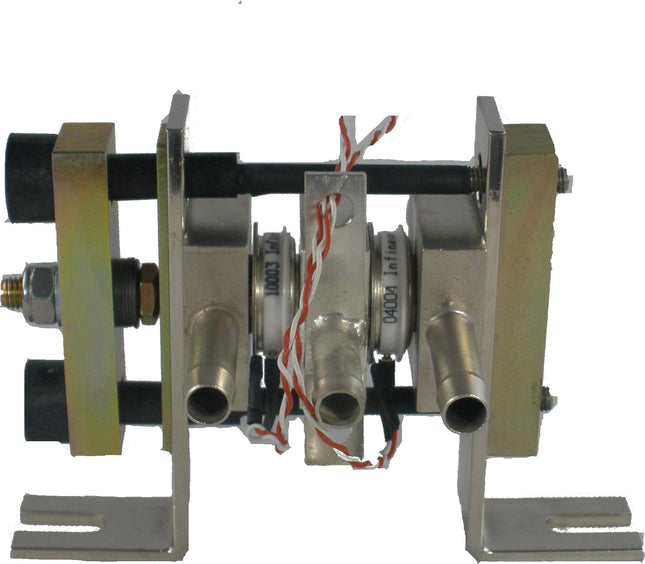

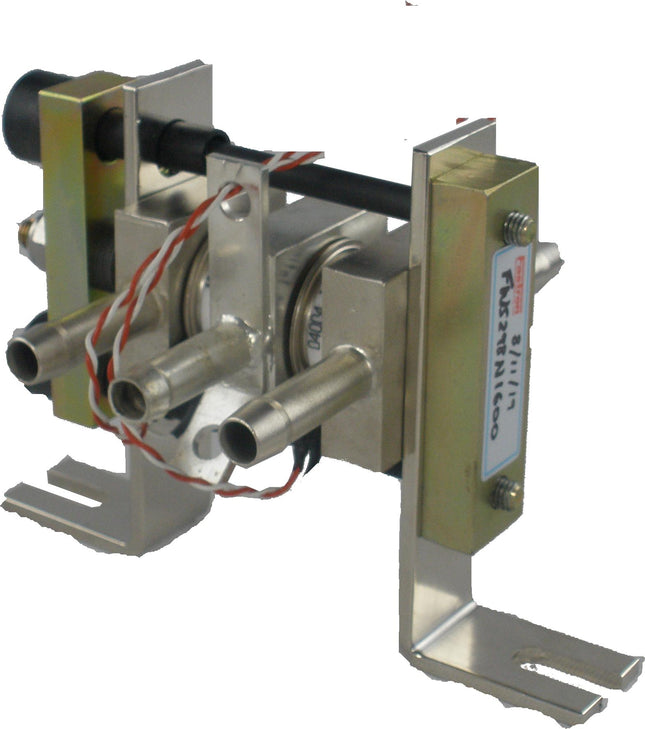

FWS298N1600 AC Switch, Water Cooled, Standard Water Cooler, 1600VAC, 2000Amp RMS Continous, 12mm x 13.7mm Nipples
FWS298N1600 AC Switch, Water Cooled, Standard Water Cooler, 1600VAC, 1000Amp RMS Continuous, 12mm x 13.7mm Nipples 550 Amp RMS Output using T430N16KOF Brass inlets and outlets for hose, along with plug. Pressure Tested to 300 mbar Specification Thermal Rating based on 40°C max inlet water temperature. Type No Litres/min Device Rck deg C/W mbar kg FWS298N1600 4 T430N16KOF 0.10 190 3.5kg 4 T720N16KOF 0.08 190 4 T1190N16KOF 0.08 190 Type No Maximum Junction Temp Itsm RMS Current Vvrm Dimensions FWS298N1600 125 Deg C 5200 A²/s 550 Amp 1700V 196x247x110mm Approx Datasheet Product Datasheet
$850.00
$1,003.00 inclGST -
KW62-TT570N16KOF, Water Cooled AC Switch, 1100Amp, 1600VAC
KW62-TT570N16KOF 1100 Amp RMS 130mm long Isolated Water Cooled SCR Module Replacement to Semikron SKIW900/16 Nominal 1000 Amp RMS Output using TT500N16KOF Nominal 1100 Amp RMS Output using MCC552-16 Comes with Brass inlet and outlet for hose, along with plug. Pressure tested to 300 mbar 110 Deg C Normally Closed Thermal switch included Specification Thermal Rating based on 25 Deg C max inlet water temperature, and 50 Deg C max Ambient Type No Litres/min Device Rcw deg C/W mbar kg Continous Current (rms) KW62-TT570N16KOF 2 50 x 92 0.055 50 2.7kg 1050 Amp 4 50 x 92 0.042 190 1150 Amp Datasheet KW62 Datasheet TT570N16KOF
$703.00
$829.54 inclGST -
XW076NC16BS Water Cooler (Chiller) Block with 16x6.4mm Busbar, 47mm x 12.7mm Tube, 12mm x 13.7mm Nipples
XW076NC16BS Water Cooler (Chiller) Block with 16x6.4mm Busbar, 47mm x 12.7mm Tube, 12mm x 13.7mm Nipples To enable the correct cooling of the semiconductor device during operation, we provide a full range of water cooling blocks in both Copper and Aluminium. These have been designed to suit both the correct distribution of force during clamping and also the flows required to cool the devices during operation. Specification Property Value Weight (kg) 0.612 Kg (kilogram) Cooler Thickness (mm) 16 Busbar Thickness (mm) 6.4 Package Type WCL1 Description 47mm WC Cu with Busbar + spirol pins fitted (10mm Hose)
$695.00
$820.10 inclGST -
KW62-MCC552-16io1, Water Cooled AC Switch, 1100Amps, 1600VAC
KKW62-MCC552-16io1, Water Cooled AC Switch, 1100Amps, 1600VAC 130mm long Isolated Water Cooled SCR Module Replacement to Semikron SKIW900/16 Nominal 1000 Amp RMS Output using TT500N16KOF Nominal 1100 Amp RMS Output using MCC552-16 Comes with Brass inlet and outlet for hose, along with plug. Pressure Tested to 300 mbar 110 Deg C Normally Closed Thermal switch included Specification Thermal Rating based on 25 Deg C max inlet water temperature, and 50 Deg C max Ambient Type No Litres/min Device Rcw deg C/W mbar kg Continous Current (rms) KW62-TT500N16KOF 2 50 x 92 0.055 50 2.7 1000 Amp 4 50 x 92 0.042 190 1100Amp Datasheet KW62 Datasheet MCC552-16
$693.00
$817.74 inclGST -

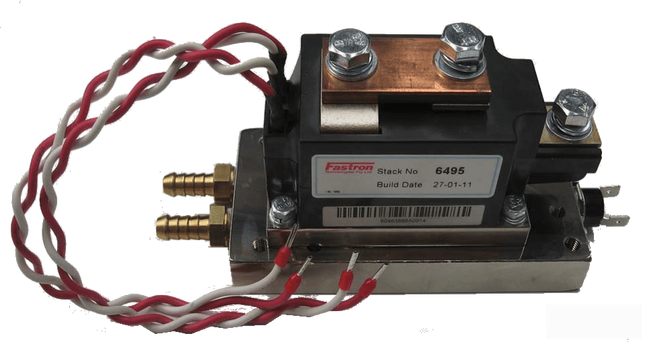

KW62-TT500N16KOF, Water Cooled AC Switch, 1000Amps, 1600VAC
KW62-TT500N16KOF 1000 Amp 130mm long Isolated Water Cooled SCR Module Replacement to Semikron SKIW900/16 Nominal 1000 Amp RMS Output using TT500N16KOF Nominal 1100 Amp RMS Output using MCC552-16 Comes with Brass inlet and outlet for hose, along with plug. Pressure Tested to 300 mbar 110 Deg C Normally Closed Thermal switch included Specification Thermal Rating based on 25 Deg C max inlet water temperature, and 50 Deg C max Ambient Type No Litres/min Device Rcw deg C/W mbar kg Continous Current (rms) KW62-TT500N16KOF 2 50 x 92 0.055 50 2.7 900 Amp 4 50 x 92 0.042 190 1000 Amp Datasheet KW62 Datasheet TT500N16KOF
$693.00
$817.74 inclGST -

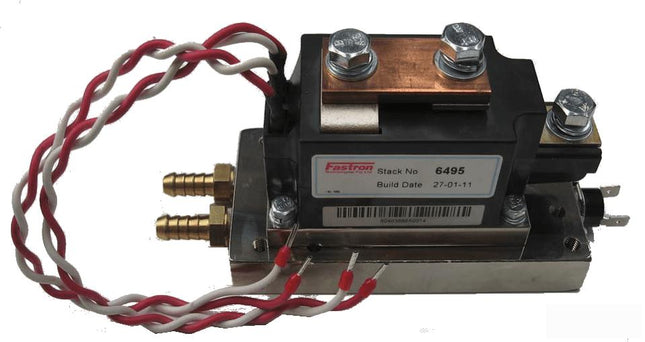

KW62-TT425N16KOF, Water Cooled AC Switch, 900Amp, 1600VAC
KW62-TT500N16KOF 900 Amp 130mm long Isolated Water Cooled SCR Module Replacement to Semikron SKIW700/16 Nominal 1000 Amp RMS Output using TT500N16KOF Nominal 1100 Amp RMS Output using MCC552-16 Comes with Brass inlet and outlet for hose, along with plug. Pressure Tested to 300 mbar 110 Deg C Normally Closed Thermal switch included Specification Thermal Rating based on 25 Deg C max inlet water temperature, and 50 Deg C max Ambient Type No Litres/min Device Rcw deg C/W mbar kg Continous Current (rms) KW62-TT425N16KOF 2 50 x 92 0.055 50 2.7 750 Amp 4 50 x 92 0.042 190 850 Amp Datasheet KW62 Datasheet TT425N16KOF
$643.00
$758.74 inclGST -
KW62-MDC300-16, Water Cooled AC Switch, 600Amp, 1600VAC
KW62-MDC300-16, 600 Amp 130mm long Isolated Water Cooled SCR Module Replacement to Semikron SKIW500/16 Nominal 1000 Amp RMS Output using TT500N16KOF Nominal 1100 Amp RMS Output using MCC552-16 Comes with Brass inlet and outlet for hose, along with plug. Pressure Tested to 300 mbar 110 Deg C Normally Closed Thermal switch included Specification Thermal Rating based on 25 Deg C max inlet water temperature, and 50 Deg C max Ambient Type No Litres/min Device Rcw deg C/W mbar kg Continous Current (rms) KW62-MDC300-16 2 50 x 92 0.055 50 2.7 500 Amp 4 50 x 92 0.042 190 600 Amp Datasheet KW62 Datasheet
$527.00
$621.86 inclGST -

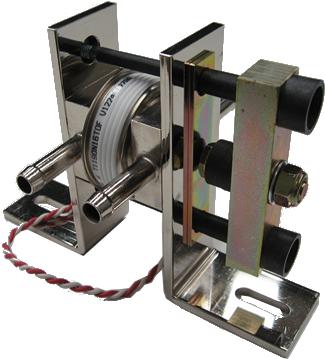

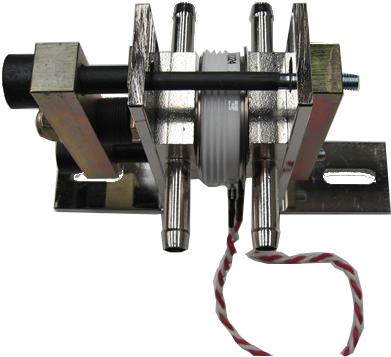

FWLS-T1190N1600-SP02 Semiconductor Assembly, Water Cooled, Standard Water Cooler, 1600VAC, 2000Amp RMS Continous, 12mm x 13.7mm Nipples
FWLS-T1190N1600-SP02 Semiconductor Assembly, Water Cooled, Standard Water Cooler, 1600VAC, 2000Amp RMS Continuous, 12mm x 13.7mm Nipples 1000 Amp RMS Output using T430N16KOF 1600 Amp RMS Output using T720N16KOF 2000 Amp RMS Output using T1190N16KOF Brass inlets and outlets for hose, along with plug. Pressure Tested to 300 mbar Specification Thermal Rating based on 40°C max inlet water temperature. Type No Litres/min Device Rck deg C/W mbar kg FWLS-1190N1600 (Replaces FWLS-T1050N1600) 4 T430N16KOF 0.10 190 3.5kg 4 T720N16KOF 0.08 190 4 T1190N16KOF 0.08 190 Type No Maximum Junction Temp Itsm RMS Current Vvrm Dimensions FWLS-1190N1600 (Replaces FWLS-T1050N1600) 125 Deg C 25500 A²/s 2000 Amp 1700V 196x227x110mm Datasheet Product Datasheet Drawing
$480.00
$566.40 inclGST -

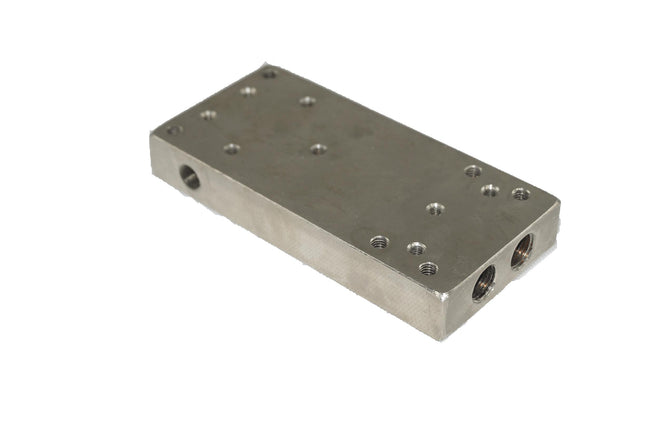

KW62 With Brass Inserts and Mounting Screws, Water Cooler Block (Chiller) for Isolated Modules including IGBT & Diodes and SCR's Replacement to Semikron SKIW900/16
KW62 With Brass Inserts and Mounting Screws, Water Cooler Block (Chiller) for Isolated Modules including IGBT & Diodes and SCR's Replacement to Semikron SKIW900/16 Replacement to Semikron SKIW900/16 1000 Amp RMS Output using TT500N16KOF 1100 Amp RMS Output using MCC552-16 Copper with Brass inlet and outlet, along with sealed end plug Pressure Tested to 300 mbar Thermal Rating based on 25 Deg C max inlet water temperature. Type No Litres/min Device Rcw deg C/W mbar kg KW62 2 50 x 92 0.055 50 1.2 4 50 x 92 0.042 190 Datasheet Product Datasheet
$395.00
$466.10 inclGST -

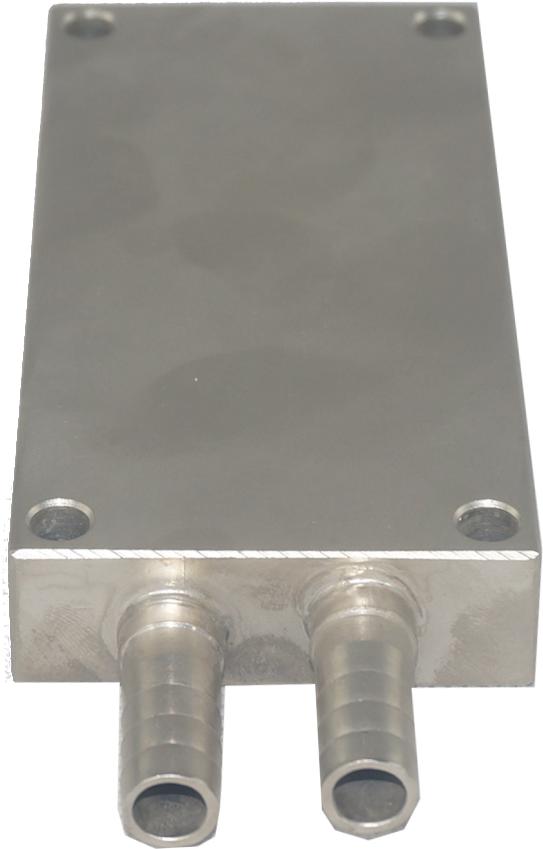

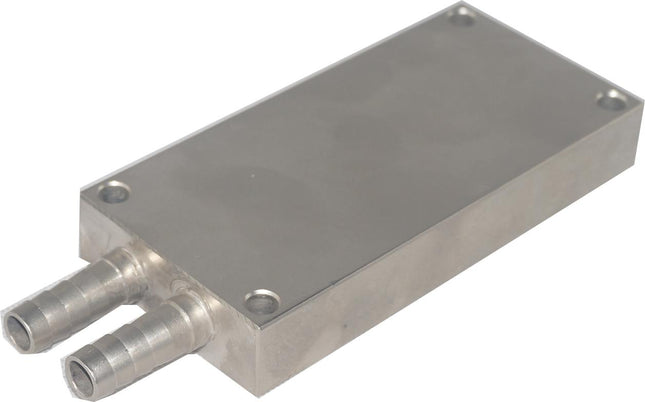

KW62B-With Plate, 130mm long water cooler block (Chiller) for Isolated Modules including IGBT & Diodes and SCR's
KW62B-With Plate, 130mm long water cooler block (Chiller) for Isolated Modules including IGBT & Diodes and SCR's M7 Holes for Mounting to Plate. Replacement to Semikron SKIW900/16 1000 Amp RMS Output using TT500N16KOF 1100 Amp RMS Output using MCC552-16 Copper with copper Binded inlet and outlet, sealed Pressure Tested to 300 mbar Nickel plated copper solid construction with aluminium mounting plate Thermal Rating based on 25 Deg C max inlet water temperature. Type No Litres/min Device Rcw deg C/W mbar kg KW62B 2 50 x 92 0.055 50 1.2 4 50 x 92 0.042 190 Datasheet Product Datasheet
$258.00
$304.44 inclGST -

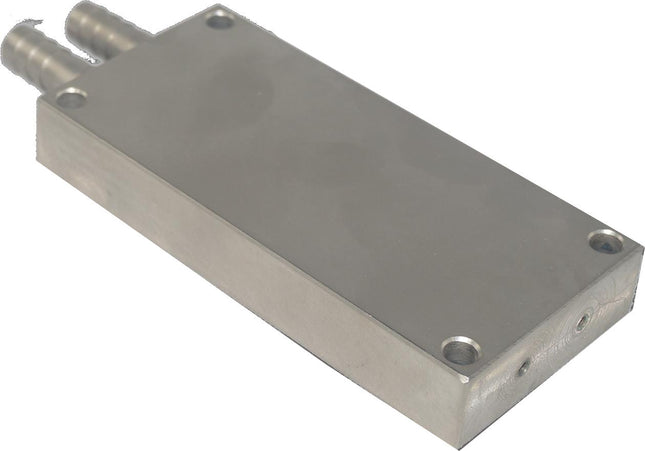

KW62B Water Cooler Block (Chiller) for Isolated Modules including IGBT & Diodes and SCR's Replacement to Semikron SKIW900/16
KW62B Water Cooler Block (Chiller) for Isolated Modules including IGBT & Diodes and SCR's Replacement to Semikron SKIW900/16 Replacement to Semikron SKIW900/16 1000 Amp RMS Output using TT500N16KOF 1100 Amp RMS Output using MCC552-16 Copper with Moulded Nickel Plated inlet and outlet, sealed. Pressure Tested to 300 mbar Thermal Rating based on 25 Deg C max inlet water temperature. Type No Litres/min Device Rcw deg C/W mbar kg KW62B 2 50 x 92 0.055 50 1.2 4 50 x 92 0.042 190 Datasheet Product Datasheet
$158.00
$186.44 inclGST
