DIN Rail Mount Voltage Transducer

Fastron FDV-200-V05-12, DC Voltage Transducer, Din Rail Mount, 0-200VDC, 0-5V output, 12VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-200-V05-12 Analogue Output 0-5V Input 0 - 200VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 12VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-DV6-D-RN, DC Voltage Transducer with Alarm, 0-300VDC Input, 22-60VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV6-D-RN Control Output 1 x SPST Alarms 3 Amp Input 0-300VDC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-DV7-D-RN, DC Voltage Transducer with Alarm, 0-600VDC Input, 22-60VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV7-D-RN Control Output 1 x SPST Alarms 3 Amp Input 0-600VDC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-AV7-D-RN, AC Voltage Transducer with Alarm, 0-600VAC Input, 22-60VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-AV7-D-RN Control Output 1 x SPST Alarms 3 Amp Input 0-600VAC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

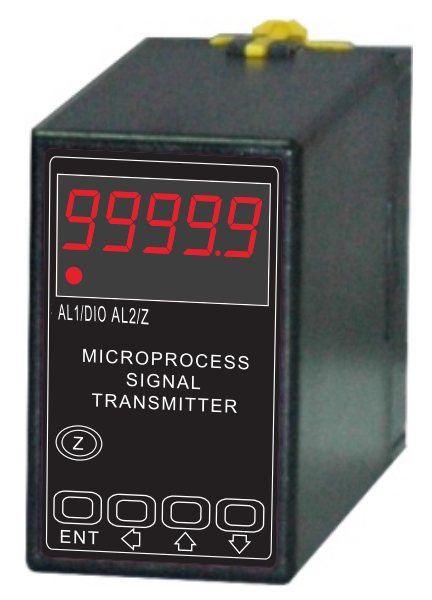

GMTA-AV6-D-RN, AC Voltage Transducer with Alarm, 0-300VAC Input, 22-60VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-AV6-D-RN Control Output 1 x SPST Alarms 3 Amp Input 0-300VAC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-DV6-A-RN, DC Voltage Transducer with Alarm, 0-300VDC Input, 100-240VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV6-A-RN Control Output 1 x SPST Alarms 3 Amp Input 0-300VDC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-DV7-A-RN, DC Voltage Transducer with Alarm, 0-600VDC Input, 100-240VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV7-A-RN Control Output 1 x SPST Alarms 3 Amp Input 0-600VDC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-AV7-A-RN, AC Voltage Transducer with Alarm, 0-600VAC Input, 100-240VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-AV7-A-RN Control Output 1 x SPST Alarms 3 Amp Input 0-600VAC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-AV6-A-RN, AC Voltage Transducer with Alarm, 0-300VAC Input, 100-240VAC/DC Aux, 1 x Relay Alarm Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-AV6-A-RN Control Output 1 x SPST Alarms 3 Amp Input 0-300VAC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-DV7D-AA, DC Voltage Transmitter with Dual Output and separate scale, 0-600VDC Input, 20-60VAC/DC Aux, 2 x 4-20mA Outputs Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV7D-AA Control Output 2 x 4-20mA Analogue Outputs Input 0-600VDC Alarm Type 2 x SPDT CO Relay 3 Amp (2 Independent Alarms) Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 20-60VAC/DC Span Adjustment Range +/-100% Zero Adjustment Range +/-100% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 250g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

GMTA-DV7A-AA, DC Voltage Transducer with Dual Output and separate scale, 0-600VDC Input, 100-240VAC/DC Aux, 2 x 4-20mA Outputs Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV7A-AA Control Output 2 x 4-20mA Analogue Outputs Input 0-600VDC Alarm Type 2 x SPDT CO Relay 3 Amp (2 Independent Alarms) Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-100% Zero Adjustment Range +/-100% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 250g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Current Transducer, GMTA-DV4-A-RN, DC Voltage Transmitter with Alarm, 0-10V DC Input, 100-240VAC/DC Aux, 1 x Relay Output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type), or given alarm Setpoint. Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Part Number GMTA-DV4-A-RN Control Output 1 x Relay  Input 0-10VDC Alarm Type 1 x SPST NO Relay 3 Amp Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
