FN600-5T0550G/0750P, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 55/75kW 112 Amp (Normal Duty)/150 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0550G/0750P Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 112 Amp(Normal Duty) / 150 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 530x290x250mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 27kg Factory Pack Qty 1 Datasheet User Manual

Read more less

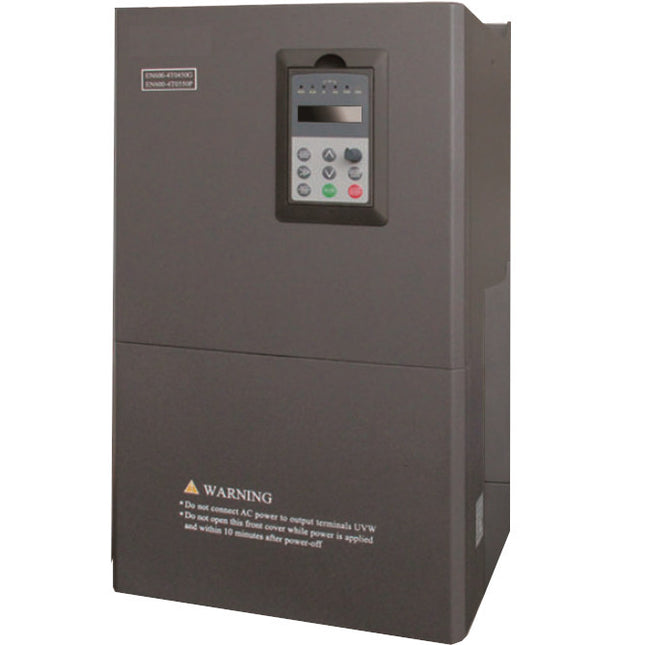

FN600-5T0450G/0550P, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 45/55kW 91 Amp (Normal Duty)/112 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining   Specification Fastron Part Number FN600-5T0450G/0550P Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 60 Amp(Normal Duty) / 75 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 530x290x250mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 27kg Factory Pack Qty 1 Datasheet User Manual

Read more less

FN600-5T0300G/0370P, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 30/37kW 60 Amp (Normal Duty)/75 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0300G/0370P Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 60 Amp(Normal Duty) / 75 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Comms RS485 Dimensions 450x280x240mm Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 20kg Factory Pack Qty 1 Datasheet User Manual

Read more less

FN600-5T0220G/0300P, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 22/30kW 45 Amp (Normal Duty)/60 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0220G/0300P Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 45 Amp(Normal Duty) / 60 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 398x250x210mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 14kg Factory Pack Qty 1 Datasheet User Manual

Read more less

FN600-5T0185G/0220P, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 18.5/22kW 39 Amp (Normal Duty)/45 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0185G/0220P Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 39 Amp(Normal Duty) / 45 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 398x250x210mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 14kg Factory Pack Qty 1 Datasheet User Manual

Read more less

FN600-5T0150G/0185PB, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 15/18.5kW 25 Amp (Normal Duty)/33 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0075G/0110PB Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 33 Amp(Normal Duty) / 25 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 304x180x189mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 6.3kg Factory Pack Qty 1 Datasheet User Manual

Read more less

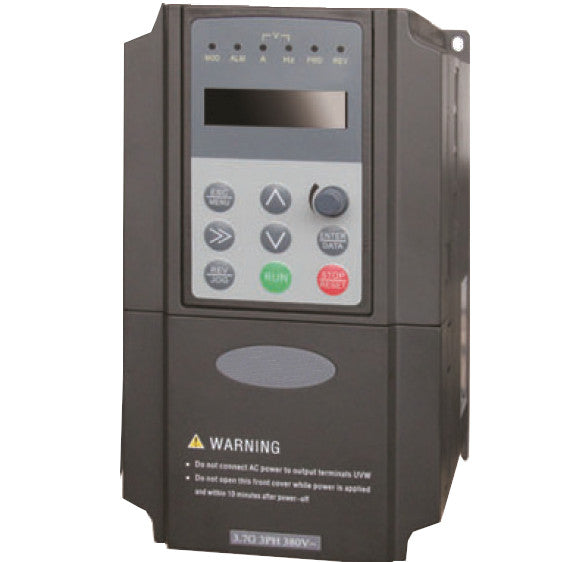

FN600-5T0110G/0150PB, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 11/15kW 25 Amp (Normal Duty)/33 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0075G/0110PB Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 25 Amp(Normal Duty) / 15 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 304x180x189mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 4.5kg Factory Pack Qty 1 Datasheet User Manual

Read more less

FN600-5T0075G/0110PB, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 11kW 17 Amp (Normal Duty)/25 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0075G/0110PB Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Variable Frequency Drive / Variable Frequnecy Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 17 Amp(Normal Duty) / 25 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 240x140x175mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC L-L Soft Start 0-6000s Termination Style Screw Unit Weight 4.5kg Factory Pack Qty 1 Datasheet User Manual

Read more less

FN600-5T0055G/0075PB, 3 Phase 3 Wire, Variable Frequency Drive, 0.1 - 600 Hz, 7.5kW 13 Amp (Normal Duty)/17 Amp (Heavy Duty), 320-480VAC L-L, RS485 Comms Features 3 Phase 3 Wire VFD/VSD 2 x 4-20mA, 0-10V Proportional Input Control 8 x Digital Inputs 1 High Speed Digital Input 4 x Open Collector Outputs 1 x High Speed Open Collector Outputs 1 x C/O Relay Output RS485 Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Fastron Part Number FN600-5T0055G/0075PB Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase 3 Wire AC Drive Control Voltage 4-20mA, 0-10V Inputs 7 x DI / 1 x High Speed DI, 2 x Analogue Load Current 13 Amp(Normal Duty) / 17 Amp(Heavy Duty) Per Phase Control Range 0.1-600 Hz Dimensions 240x140x175mm Comms RS485 Mounting Style Panel Mount Supply Voltage Range 320-480VAC Soft Start 0-6000s Termination Style Screw Unit Weight 4.5kg Factory Pack Qty 1 Datasheet User Manual

Read more less

VFD25AMS43ANSAA, 3 Phase Variable Frequency Drive, 460VAC, 11kW, 19.5 Amp (Normal Duty)/21.3 Amp (Heavy Duty), 460VAC L-L, 0.1-599 Hz, 250x130x185mm Features 3 Phase VFD/VSD 4-20mA, 0-5V, 0-10V Proportional Input Control 7 x Digital Input 2 x STO Inputs Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining Specification Delta Part Number VFD25AMS43ANSAA Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase AC Drive Control Voltage 4-20mA, 0-20mA, 0-10V Digital Inputs 7 x Mix / 2 x STO Load Current 19.5 Amp(Normal Duty) / 21.3 Amp(Heavy Duty) Per Phase Control Range 0.1-599 Hz Dimensions 250x130x219mm Mounting Style Panel Mount Supply Voltage Range 323-528VAC Soft Start 0-6000s Termination Style Screw Unit Weight 6.5kg Factory Pack Qty 1 Datasheet MS300 Brochure User Manual

Read more less

VFD13AMS43ANSAA, 3 Phase Variable Frequency Drive, 460VAC, 13 Amp (Normal Duty)/15.7 Amp (Heavy Duty), 460VAC L-L, 0.1-599 Hz, 207x109x187mm Features 3 Phase VFD/VSD 4-20mA, 0-5V, 0-10V Proportional Input Control 7 x Digital Input 2 x STO Inputs Fully enclosed IP20 (Optional IP40) Small frame Size Applications Fan Motor Control Production Lines Transportation Controlled Power Applications Suitable for extreme environments such as mining   Specification Delta Part Number VFD13AMS43ANSAA Rated Operation Temperature 50°C (With Derating) Configuration 3 Phase AC Drive Control Voltage 4-20mA, 0-20mA, 0-10V Digital Inputs 7 x Mix / 2 x STO Load Current 13 Amp(Normal Duty) / 15.7 Amp(Heavy Duty) Per Phase Control Range 0.1-599 Hz Dimensions 207x109x187mm Mounting Style Panel Mount Supply Voltage Range 323-528VAC Soft Start 0-6000s Termination Style Screw Unit Weight 2.5kg Factory Pack Qty 1 Datasheet MS300 Brochure User Manual

Read more less
