Trent NBR-FR22GR69V25T Series 25 Amp 690V Semiconductor I²t Fuse Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V25T Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 410 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 58 x 21mm Fuse Holder RT18-125L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-125L Datasheet

Read more less

Trent NBR-FR22GR69V63T Series 63 Amp 690V Semiconductor I²t Fuse Cartridge Style 22 x 58mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V63T Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 3080 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 58 x 21mm Fuse Holder RT18-125L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-125L Datasheet

Read more less

FK-1-75, Fuse Kit for 50-75 Amp F311 Single Phase Power Controller Contains: 1 x 75AF 2 x M5x25mm Isolated Standoff Mounting Hardware Datasheet Product Datasheet Cross Reference Chart Insulated Standoffs

Read more less

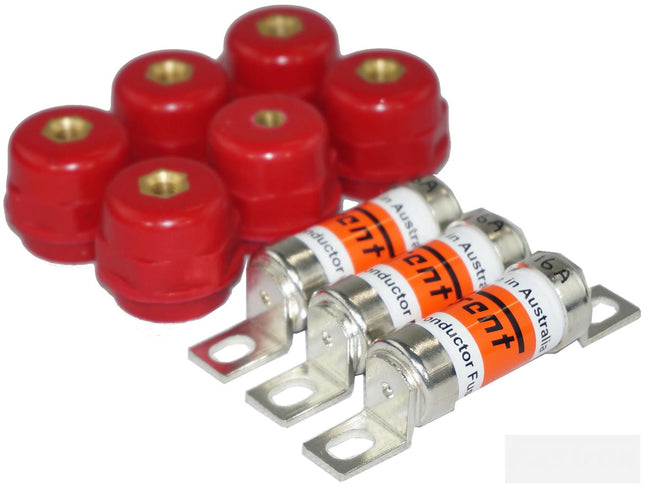

FK-3-70, aR Type Fuse Kit for 60-70 Amp F330, F430, F431 Three Phase Power Controller or VSD Drives Contains: 3 x 75AF Trent Fuses 6 x M5x25mm Isolated Standoffs Mounting HaRdwaRe Datasheet Product Datasheet Cross Reference ChaRt Insulated Standoffs

Read more less

Trent 63NAF Series 250V, 63 Amp Semiconductor I²t Fuse BS88 Style, aR Features Equivalent to Mersen 2.5 URGS 17/63 X076656, ETI BS17UQ/41/63A/240V 004750115 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 63NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 1100 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 14W Termination Style M6 Unit Weight 30g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent NBF Series 250V, 450 Amp Semiconductor I²t Fuse, aR BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 450NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 170000 A²/s Nominal Current (RMS + DC) 450 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 55W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 150BF Series 690V, 150 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/150 Q097166, Bussmann 150FM ETI BS38UQ/83/160A/690V 004750628 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 12600 A²/s I²t Rating (IP > 30IN) 14500 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 35.5W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 160NAF Series 250V, 160 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 160NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 11700 A²/s Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 16W Termination Style M6 Unit Weight 30g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 250BF Series 690V, 250 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/250 W097171, Bussmann 250FM ETI BS38UQ/83/250A/690V 004750636 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 97000 A²/s I²t Rating (IP > 30IN) N/A Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 34.5W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 150NAF Series 250V, 150 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 2.5 URZ 17/150 W085556, ETI BS17UQ/41/160A/240V 004750128 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150NAF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 9590 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 54 x 18mm Hole Centers 38 x 42.8mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 14W Termination Style M6 Unit Weight 30g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent MYG20-241 Series Metal Oxide Varistor (MOV), 200VAC, 240VDC, K20 Axial Package 60W, Replaces V200K20 High Energy Absorption Rating Industry Standard Package Wide Operating Range 35 - 1100VAC High Peak Current Capability (70kA) UL/CSA/ROHS/ISO9001:2015 Approved Panel Mount Screw Terminals APPLICATION AREAS: 1. Railways and trams: For the protection of electrical equipment, power electronics (IGBT, thyristors...) in systems with alternating, direct or combined AC + DC power supply, especially in power supply of AC/DC, DC/AC, DC/DC converters. They may be used in systems with main and auxiliary power supply for example: automatic control and regulation systems, cooling systems, warming systems, ventilation systems, and combination systems (electromechanical, electropneumatic and other systems). 2. Wind powerplants For protection of automatic control and regulation in power electronics (IGTB, tyristors...), as well as the protection of sensitive electronic systems (e. g. AC/DC, DC/AC, DC/DC converters, drive systems) from direct or indirect lightning strikes. 3. Photovoltaic systems For protection of photopanels, automatic control electronics with sensitive electronic components, and DC/AC converters (inverters) from direct or indirect lightning strikes. Depending on the application, both serial and parallel connections are possible. With serial connection the required voltage is achieved. With parallel connection higher current absorption is achieved in the modules. Specification Trent Part Number MYG20-241 Operating Voltage AC (50-60Hz) 200V Operating Voltage DC 240V Average Power Dissipation 1W Permissable Peak Current 10kA Energy Absorption(2ms) 127W(max) Tolerance(Vn) +/- 10% Termination Style Axial Lead Weight 3g Factory Pack Qty 1 ROHS Yes UL Yes CSA Yes Datasheet Product Datasheet Application Notes Technical Blog MOV Article
