3 Phase Bridge Rectifier
-
DWF100A40 Three Phase Half Wave Diode Rectifier Bridge, Common Cathode 100 Amp @ Tc = 122 Deg C
IXYS DWF100A40 Three Phase Half Wave Diode Rectifier Bridge, Common Cathode 100 Amp @ Tc = 122 Deg C Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Sanrex Part Number DWF100A40 AC Line voltage 400VAC Device Configuration Three Phase Half Wave Diode Rectifier Bridge Common Cathode DC Output @ Tc = 122 Deg C 100 Amp Package Size W:25mm L:92mm D:31mm Itsm 2000 A Tj(max) 150°C Terminals M5 (1.5Nm) Hole Centres 20mm (M4) Gate Terminals N/A R th(j-c) 0.25°C/W Weight 170g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Sanrex Headquarters Japan Datasheet Product Datasheet Alternatives See Powersem PSYD120/16 for for alternative
$90.00
$106.20 inclGST -
PSD55T/12, 3 Phase Diode Rectifier Bridge, 55 Amp, 1200V
Powersem PSD55T/12 Three Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD50/12 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD55T/12 AC Line voltage 400V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 50 Amp Package Size W:72mm L:60mm D:28mm Itsm 750 A VF(to) 0.85V Tj(max) 150°C rF 11mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 2.6°C/W R th(c-h) 0.24°C/W Weight 260g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD51/18 or PSD85/16 for higher rated equivalent
$88.20
$104.08 inclGST -

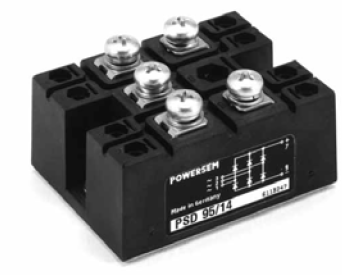

PSD95/16, 3 Phase Diode Rectifier Bridge, 140 Amp, 1600V
Powersem PSD95/16 Three Phase Diode Rectifier Bridge, Replaces Semikron SKD100/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD95/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 140 Amp Package Size W:67mm L:60mm D:30mm Itsm 1200 A VF(to) 0.8V Tj(max) 150°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 0.9°C/W R th(c-h) 0.2°C/W Weight 250g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD162/16 for higher rated equivalent
$85.05
$100.36 inclGST -
PSD55/12, 3 Phase Diode rectifier Bridge, 55 Amp, 1200V
Powersem PSD55/12, 3 Phase Diode rectifier Bridge, 55 Amp, 1200V, Replaces Semikron SKD50/12 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD55/12 AC Line voltage 400V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 50 Amp Package Size W:72mm L:60mm D:28mm Itsm 750 A VF(to) 0.85V Tj(max) 150°C rF 11mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 2.6°C/W R th(c-h) 0.24°C/W Weight 260g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD51/18 or PSD85/16 for higher rated equivalent
$83.44
$98.46 inclGST -
PSDH70/16, 3 Phase Half Controlled Bridge, 70 Amp, 1600V, Spade Connections
Powersem PSDH70/16, 3 Phase Half Controlled Bridge, 70 Amp, 1600V, Spade Connections, Can Replace Semikron SKCH28, SKCH43 or SI S3PHBD70 series Features Half Controlled Braking/Freewheeling Diode Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Lift Motor Control with Braking Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSFD70/16 AC Line voltage 533V Device Configuration Three Phase Half Controlled Rectifier Bridge DC Output @ 85 Deg C 70 Amp Package Size W:29mm L:68mm D:17mm Itsm 550 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals Faston (6.3mm) Hole Centres 68mm (M5) Gate Terminals M3 (1.5Nm) R th(j-c) 0.9°C/W R th(c-h) 0.20°C/W Weight 100g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSDF70/16 for alternative with freewheeling diode
$75.49
$89.08 inclGST -
PSFH70/16, 3 Phase Half Controlled Bridge with freewheeling diode, 70 Amp, 1600V, Spade Connections
Powersem PSFH70/16 Three Phase Half Controlled Rectifier Bridge with Freewheeling Diode, Can Replace Semikron SKCH28, SKCH40 series Features Half Controlled Braking/Freewheeling Diode Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Lift Motor Control with Braking Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSFH70/16 AC Line voltage 533V Device Configuration Three Phase Half Controlled Rectifier Bridge with Freewheeling Diode DC Output @ 85 Deg C 70 Amp Package Size W:29mm L:68mm D:17mm Itsm 550 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals Faston (6.3mm) Hole Centres 68mm (M5) Gate Terminals M3 (1.5Nm) R th(j-c) 0.9°C/W R th(c-h) 0.20°C/W Weight 100g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSDH70/16 for alternative with no freewheeling diode
$75.49
$89.08 inclGST -

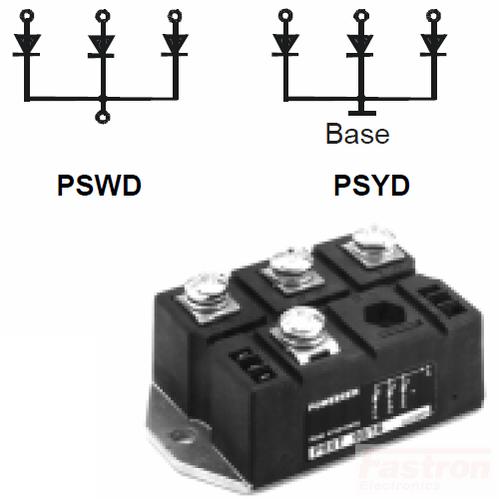

PSWD80/16, 3 Phase Half Wave Rectifier Bridge 80 Amp, 1600V, with Isolated Base
3 Phase Half Wave Rectifier Bridge 80 Amp, 1600V, with Isolated Base
$69.90
$82.48 inclGST -

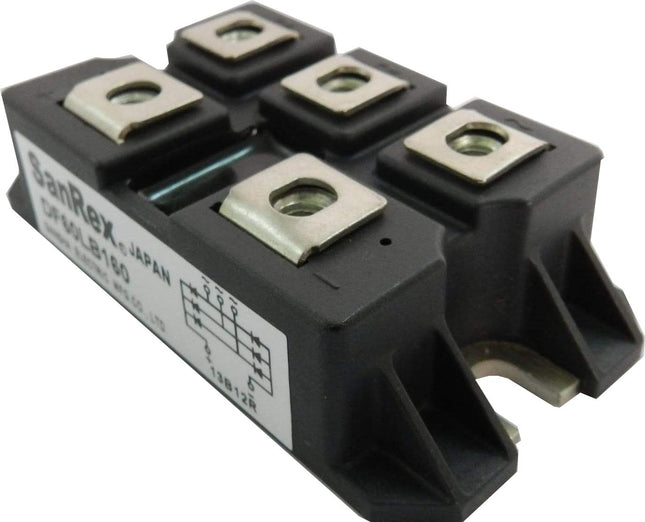

DF60LB160, 60A, 1600V 3 Phase Bridge Rectifier, 40mm base width
Sanrex DF60LB160 Three Phase Diode Rectifier Bridge Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control DC Power Supply Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Sanrex Part Number DF60LB160 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 111 Deg C 60 Amp Package Size W:40mm L:80mm D:22mm Itsm 1200 A VFM 1.3V Tj(max) 150°C rF Not Published Terminals M5 (1.5Nm) Hole Centres 68mm (M5) Gate Terminals N/A R th(j-c) 0.25°C/W R th(c-h) Not Published Weight 100g Isolation 2.5kV Factory Pack Qty 5 Certification N/A Sanrex Headquarters Japan Datasheet Product Datasheet
$69.00
$81.42 inclGST -

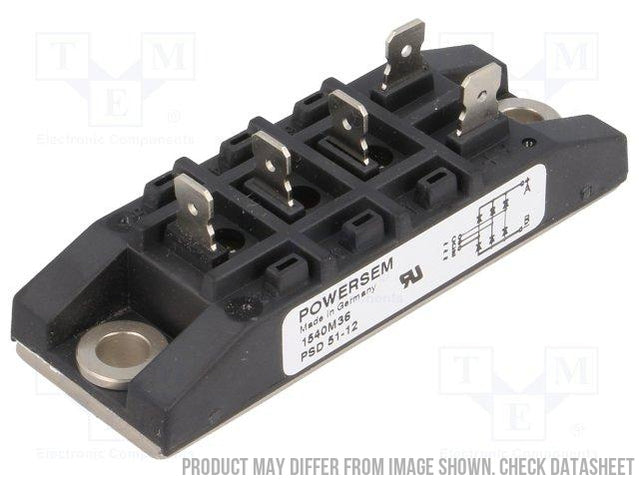

PSD51/18, 3 Phase Bridge, 51 Amp, 1800V, Spade connections
Powersem PSD51/18 Three Phase Diode Rectifier Bridge, Replaces Semikron SKD51/18 or IXYS VUO70-18NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD51/18 AC Line voltage 600V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 100 Deg C 85 Amp Package Size W:80mm L:29mm D:17mm Itsm 750 A VF(to) 0.8V Tj(max) 150°C rF 6mΩ Terminals Fastron (6.3mm) Hole Centres 60mm (M6) Gate Terminals N/A R th(j-c) 1.3°C/W R th(c-h) 0.3°C/W Weight 110g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD85/16 for higher rated equivalent with screw terminals
$65.56
$77.36 inclGST -

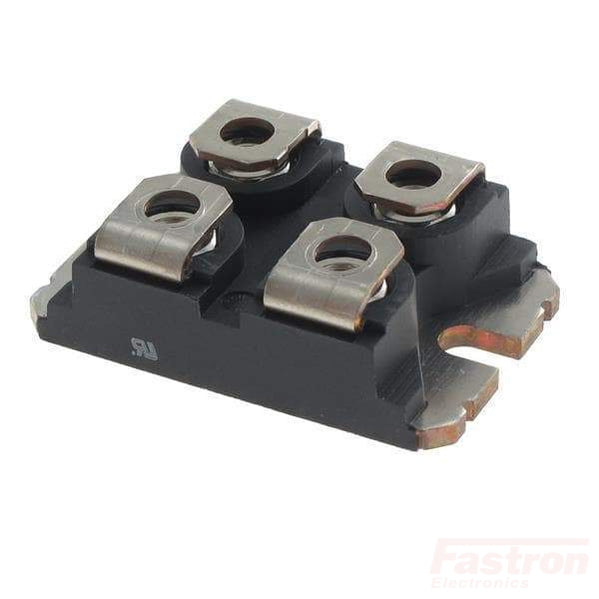

DMA150YA1600NA, 3 Phase Half Wave Diode Bridge, Common Anode, 1600V, 150Amp, SOT-227B
Westcode-IXYS-Littlefuse DMA150YA1600NA, 3 Phase Half Wave Diode Bridge, Common Anode, 1600V, 150Amp, SOT-227B Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Westcode-IXYS-Littlefuse Part Number DMA150YA1600NA AC Line voltage 533V Device Configuration Three Phase Half Wave Diode Rectifier Bridge DC Output @ 95 Deg C 150 Amp Package Size W:38mm L:25mm D:12mm (SOT-227B) Itsm 800 A VF(to) 0.82V Tj(max) 150°C rF 6.3mΩ Terminals M4 (1.5Nm) Hole Centres 32mm (M4) Gate Terminals N/A R th(j-c) 0.6°C/W R th(c-h) 0.1°C/W Weight 30g Isolation 3kV Factory Pack Qty 10 Certification UL Listed IXYS Headquarters United States Datasheet Product Datasheet Alternatives See PSWD120/16 for alternative with larger package
$59.00
$69.62 inclGST -
VUO98-16NO7, 3 Phase Diode rectifier Bridge, 98 Amp, 1600V, Fress Fit
Powersem VUO98-16NO7, 3 Phase Diode rectifier Bridge, 98 Amp, 1200V, Fress Fit Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification IXYS Part Number VUO98-16NO7 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 110 Deg C 98 Amp Package Size W:72mm L:42mm D:30mm Itsm 750 A VF(to) 0.81V Tj(max) 150°C rF 5.9mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 0.7°C/W R th(c-h) 0.3°C/W Weight 24g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet
$58.45
$68.97 inclGST -

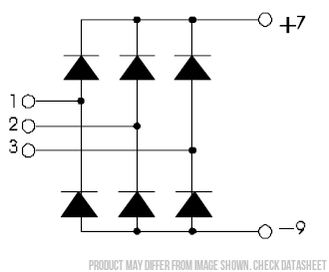

PSD35T/20, 3 Phase Diode rectifier Bridge, 35 Amp, 2000V
Powersem PSD35T/20 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKD30/20 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD35T/20 AC Line voltage 680V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 38 Amp Package Size W:55mm L:45mm D:24mm Itsm 400 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M4 (1.5Nm) Hole Centres 45mm (M4) Gate Terminals N/A R th(j-c) 2.8°C/W R th(c-h) 0.6°C/W Weight 110g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet
$57.60
$67.97 inclGST
