Momentary Switches
-

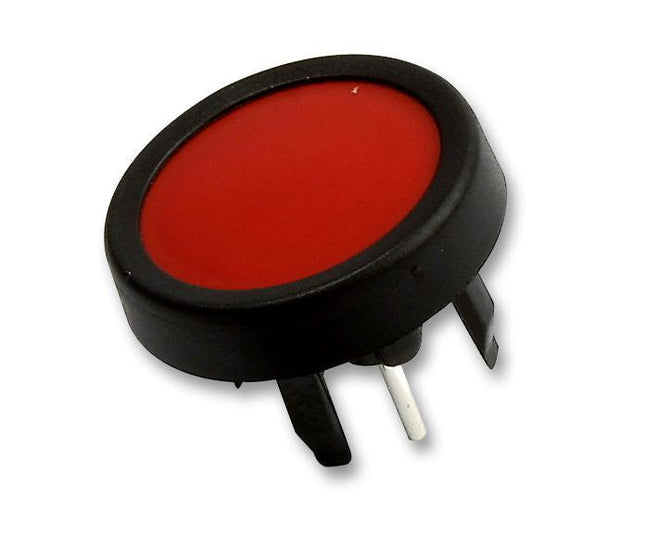

1241.1110.7093 MCS switch 18mm Round Panel Mount Red
Schurter 1241.1110.7093 MCS switch 18mm Round Panel Mount Red Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1110.7093 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour Red Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$14.98
$17.68 inclGST -
3-132-516, CHS3 5-28VDC 2 Amp Capacitive Switch 30x30mm Square Panel Mount Backlit, RGB, with Connector Terminals
Schurter CHS-30-MONO02AF0-AIRGB00RF0-P4BKP-G020, CHS3 5-28VDC 2 Amp Capacitive Switch 30x30mm Square Panel Mount Backlit, RGB, with Connector Terminals Description Momentary action switch available with various configurations, and in different colours Adhesive Mounted Flying Terminal Leads or Connector Terminals For up to 2mm glass Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Wide range of colours - Switching voltage max. 28 VDC, switching current max. 2 Amp Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number CHS-30-MONO02AF0-AIRGB00RF0-P4BKP-G020 Switching Type Momentary Switch Size Square 30 x 30mm Switch Colour Black with RGB Housing Colour Black Nominal Voltage 5-48VDC Rated Power 56W Rated Actuations 100 Million Nominal Current (DC) 5A Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet Video Demo Video 1 Demo Video 2 Left: CHS 2 (non-conductive wood surface) – solution for switch with optical feedback. The RGB lighting can be used as design element. Middle: CHS 1 – design without illumination and with a mounting depth of less than 6mm, the optimal solution for smaller developments. Right: CHS 3 (Black surface) – potted version with lighting for demanding use in harsh environments. These are Momentary switch (by default) but we should be able to tweak it for a Latching function by means of programming.
$85.00
$100.30 inclGST -
1241.1100.7098 MCS switch 18mm Square Panel Mount White
Schurter 1241.1100.7098 MCS switch 18mm Square Panel Mount White Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1100.7098 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour White Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$8.44
$9.96 inclGST -
0098.9201 Panel Kit Seal for MCS switch 18mm
Schurter 0098.9201 Panel Kit Seal for MCS switch 18mm Description IP65 Seal Kit
$3.06
$3.61 inclGST -
1241.1104.7091 MCS switch 18mm Round Panel Mount Yellow
Schurter 1241.1104.7091 MCS switch 18mm Round Panel Mount Yellow Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1104.7091 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour Yellow Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$13.02
$15.36 inclGST -
1241.1104.7095 MCS switch 18mm Round Panel Mount Green
Schurter 1241.1104.7095 MCS switch 18mm Round Panel Mount Green Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1104.7095 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour Green Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$14.40
$16.99 inclGST -
1241.1100.7095 MCS switch 18mm Square Panel Mount Green
Schurter 1241.1100.7095 MCS switch 18mm Square Panel Mount Green Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1100.7095 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour Green Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$8.44
$9.96 inclGST -

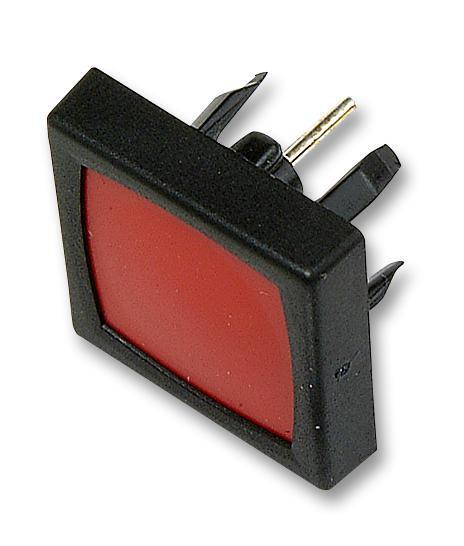

1241.1100.7093 MCS switch 18mm Square Panel Mount Red
Schurter 1241.1100.7093 MCS switch 18mm Square Panel Mount Red Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1100.7093 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour Red Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$12.81
$15.12 inclGST -
1241.1100.7091 MCS switch 18mm Square Panel Mount Yellow
Schurter 1241.1100.7091 MCS switch 18mm Square Panel Mount Yellow Description Momentary action switch available with custom lettering, and in different colours Snap in Assembly Pin connections for Soldering Characteristics PES Thermoplastic Housing PBT Thermoplastic Bezel Contacts material CuZn37 3 um Ni 2um Au; CuZn37 2.5 um Ag Wide range of colours, lettering - Switching voltage max. 48 VDC, switching current max. 125 mA Varnished Version Colour adjustments to customer housings possible, as standard 13/14mm Aperture Round, and Square versions available. Specification Schurter Part Number 1241.1100.7091 Switching Type Momentary Switch Size Square 4 x 18mm (13 x 18mm total) Switch Colour Yellow Housing Colour Black Nominal Voltage 5-48VDC Rated Power 0.72W Rated Actuations 1-5 Million Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <50m Ohm/ >100 M Ohm Dimensions ø18 x 13mm Operating Temperature Range -25°C / 60°C Termination Solder Terminals IP Protection Rating 65 (Snap in) Mounting Snap in Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$12.00
$14.16 inclGST
