Temperature Control Relays & Transducers

9 products

Filter

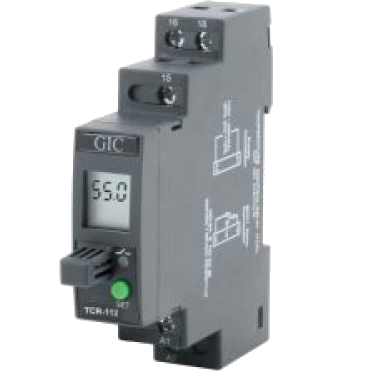

  • 41A111AR Temp Control Relay, Din Rail, 110-240VAC, Relay output, Dual Setpoint -10 to 55 Deg C Range

    41A111AR Temp Control Relay, Din Rail, 110-240VAC, Relay output, Dual Setpoint -10 to 55 Deg C Range

    39 pcs in stock

    GIC Controls 41A111AR Temp Control Relay, Din Rail, 110-240VAC, Relay output, Dual Setpoint -10 to 55 Deg C Range 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 41A111AR Control Output Relay NO 5 Amp/NC 3 Amp (Resistive) Input Internal NTC Sensor  Temp Control Ranges -15°C to 45°C  Mounting Style 17.5 x 75mm Din Rail Mount Supply Voltage 110 - 240VAC Termination Style Screw Weight 230g Factory Pack Qty 1 ROHS Yes CE Yes Datasheet Datasheet

    Read more

    39 pcs in stock

    $59.00
    $69.62 inclGST

  • 47A3D412(OBSOLETE) Temp Control Relay, PT100 Input Din Rail, 24-240VAC/DC, Relay output, Adjustable Setpoint -50 to 300 Deg C Range

    View options

    47A3D412(OBSOLETE) Temp Control Relay, PT100 Input Din Rail, 24-240VAC/DC, Relay output, Adjustable Setpoint -50 to 300 Deg C Range

    Out of stock

    GIC Controls 47A3D412 Temp Control Relay, PT100 Input Din Rail, 24-240VAC/DC, Relay output, Adjustable Setpoint -50 to 300 Deg C Range   Feastures 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 47A3D412 Control Output Relay C/O 10 Amp Analogue Output 2 x 0-10V Input External PT100 Sensor (not supplied) Mounting Style 17.5 x 75mm Din Rail Mount Supply Voltage 24 - 240VAC/DC Termination Style Screw Weight 230g Factory Pack Qty 1 ROHS Yes CE Yes   Datasheet Datasheet Alternative See FRW8-01

    Read more

    Out of stock

    $124.00
    $146.32 inclGST

    View options

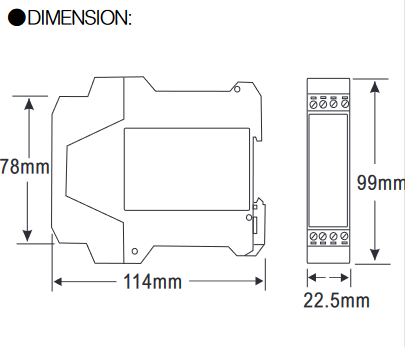

  • Last stock! GT-T/TO(0-150)/D1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 22-60VAC/DC supply GT-T/TO(0-150)/D1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 22-60VAC/DC supply

    GT-T/TO(0-150)/D1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 22-60VAC/DC supply

    4 pcs in stock

    Fastron Electronics GT-T/TO(0-150)/D1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 22-60VAC/DC supply Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GT-T/TO(0-150)/D1(0-20mA) Control Output 4-20mA Input RTD (Pt100) Over Range N/A Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    4 pcs in stock

    $219.00
    $258.42 inclGST

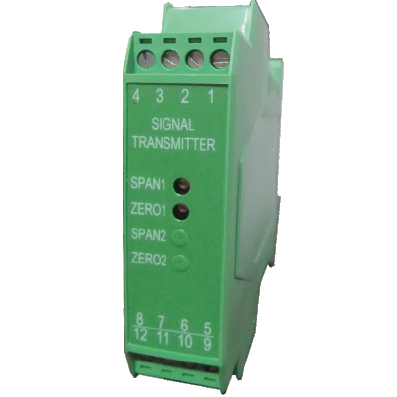

  • Last stock! GT-T/TO(0-150)/A1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 100-240VAC/DC supply GT-T/TO(0-150)/A1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 100-240VAC/DC supply

    GT-T/TO(0-150)/A1, Signal Isolator/Conditioner, DIN Rail Mount, PT100 RTD (0-150 Deg C) Input, 4-20mA output, 100-240VAC/DC supply

    2 pcs in stock

    Fastron Electronics GTD-T/TO(0-150)/A1 PT100 to 4-20mA Signal Conditioner or Transmitter Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-T/TO(0-150)/A1(0-20mA) Control Output 4-20mA Input RTD (Pt100) Over Range N/A Operating Temperature 0 - 60°C Load Voltage 100 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    2 pcs in stock

    $219.00
    $258.42 inclGST

  • Last stock! GT-T/TO(0-300)/A/O(0-20mA), Signal Isolator/Conditioner, PT100 RTD (0-300 Deg C) Input, 0-20mA output, 100-240VAC/DC supply GT-T/TO(0-300)/A/O(0-20mA), Signal Isolator/Conditioner, PT100 RTD (0-300 Deg C) Input, 0-20mA output, 100-240VAC/DC supply

    GT-T/TO(0-300)/A/O(0-20mA), Signal Isolator/Conditioner, PT100 RTD (0-300 Deg C) Input, 0-20mA output, 100-240VAC/DC supply

    3 pcs in stock

    Fastron Electronics GTD-T/TO(0-300 Deg C)/A/O(0-20mA) Signal Conditioner or Transmitter Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 0 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number GTD-T/TO(0-300 Deg C)/A/O(0-20mA) Control Output 0-20mA Input RTD (Pt100) Over Range N/A Operating Temperature 0 - 60°C Load Voltage 100 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

    Read more

    3 pcs in stock

    $219.00
    $258.42 inclGST

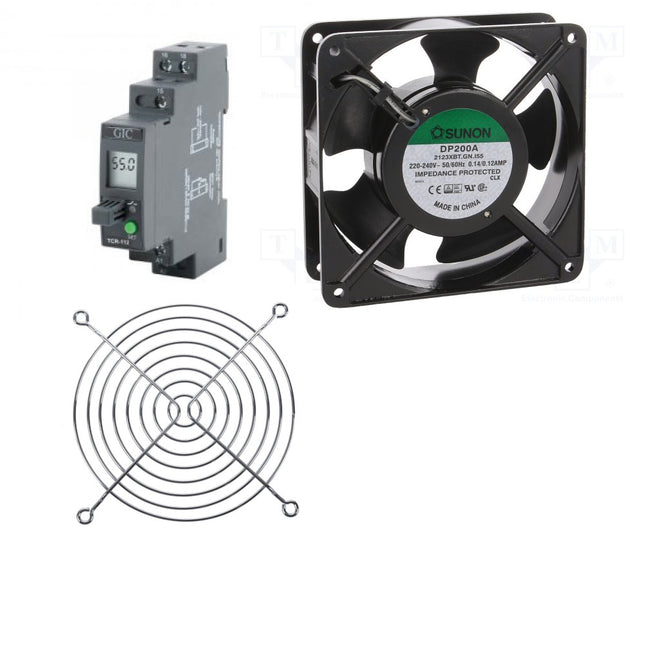

  • FAN120-FG-R , 120mm 94CFM 240VAC Fan, with Finger Guard and 41A111AR Temp Control Relay, Panel Mount and Din Rail Mount, Relay output, Dual Setpoint -10 to 55 Deg C Range

    FAN120-FG-R , 120mm 94CFM 240VAC Fan, with Finger Guard and 41A111AR Temp Control Relay, Panel Mount and Din Rail Mount, Relay output, Dual Setpoint -10 to 55 Deg C Range

    39 pcs in stock

    Fastron FAN120-FG-R , 120mm 94CFM 240VAC Fan, with Finger Guard and 41A111AR Temp Control Relay, Panel Mount and Din Rail Mount, Relay output, Dual Setpoint -10 to 55 Deg C Range 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 41A111AR Control Output Relay NO 5 Amp/NC 3 Amp (Resistive) Input Internal NTC Sensor Mounting Style 17.5 x 75mm Din Rail Mount Supply Voltage 110 - 240VAC Termination Style Screw Weight 230g Factory Pack Qty 1 ROHS Yes CE Yes   Datasheet Datasheet

    Read more

    39 pcs in stock

    $89.00
    $105.02 inclGST

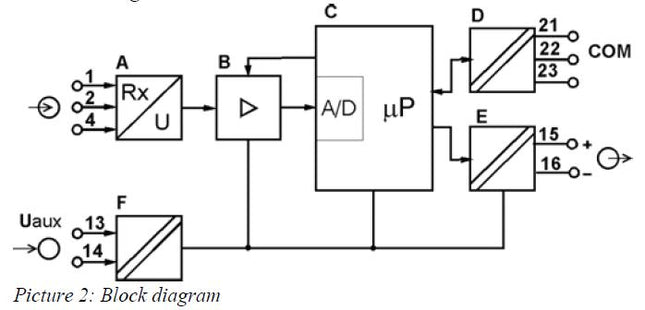

  • MI454, Potentiometer and Tap Position Programable Transducer, Class 0.5, Universal 20 - 300VDC/40 to 276VAC 40 to 70Hz , Aux Voltage 57.74V,100V,230V,400V,500VAC-AC Voltage Transducer-Iskra Doo-Fastron Electronics Store MI454, Potentiometer and Tap Position Programable Transducer, Class 0.5, Universal 20 - 300VDC/40 to 276VAC 40 to 70Hz , Aux Voltage 57.74V,100V,230V,400V,500VAC-AC Voltage Transducer-Iskra Doo-Fastron Electronics Store

    View options

    MI450; Pt100; 0..150 Deg C; 4-20mA; 3; A240V;2;L, Temperature Programable Transducer, Class 1, Pt100 0-150 Deg C, 4-20mA Output, 3 Wire, 240VAC, RS232 Comms, Linear Output

    Out of stock

    Iskra Doo MI450; Pt100; 0..150 Deg C; 4-20mA; 3; A240V;2;L, Temperature Programable Transducer, Class 1, Pt100 0-150 Deg C, 4-20mA Output, 3 Wire, 240VAC, RS232 Comms, Linear Output Class 1 (EN 60688) Programable DC Voltage Output 0-1V to 0-10V @ 20mA Programmable DC Current Output 0-1mA to 0-5mA, 0-5mA to 0-20mA @ 15V Features : Measurement of up to 500VAC Universal Supply 20 - 300VDC/40 to 276VAC 40 to 70Hz Accuracy class 1 Input frequency 40-70Hz Specification Iskra Doo Part Number MI450; Pt100; 0..150 Deg C; 4-20mA; 3; A240V;2;L Functions Programmable Temperature Transducer Supply Voltage 240VAC +/-20% Nominal Measurement Range 0-150 Deg C (pt100) Maximum Measurement Range 0-150 Deg C (pt100) Output 4-20mA Accuracy Class 1 Isolation 3.5kV Comms N/ Weight 340g Enclosure Material UL94 Factory Pack Qty 1 EU Directives N/A Safety Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002 Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 Enclosure Protection IP20 Shock Withstand 300g 8ms Pulse . 6 Shocks in each of 3 axes Vibration Withstand 0.7g, 3...100Hz, 1oct/min 10 cycles in each of three axes Operating Temperature -20 →+70 °C Datasheet Product Datasheet

    Read more

    Out of stock

    $396.00
    $467.28 inclGST

    View options

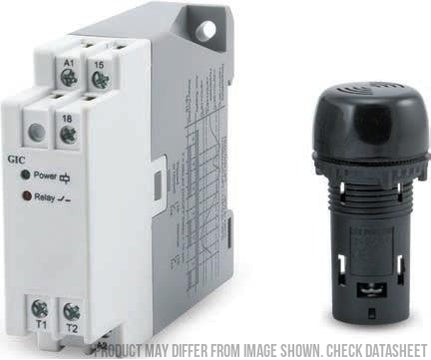

  • 45A131AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 230VAC, Relay Output

    45A131AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 230VAC, Relay Output

    10 pcs in stock

    GIC Controls 45A131AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 230VAC, Relay Output 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 45A131AR Control Output Relay NO 5 Amp/NC 3 Amp (Resistive) Input External NTC Sensor (Included) Mounting Style 17.5 x 75mm Din Rail Mount Trip Window 5 to 40 Deg C Supply Voltage 230VAC Termination Style Screw Weight 300g Factory Pack Qty 1 ROHS Yes CE Yes   Datasheet Datasheet

    Read more

    10 pcs in stock

    $149.00
    $175.82 inclGST

  • 45D331AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 24VDC, Relay Output

    45D331AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 24VDC, Relay Output

    10 pcs in stock

    GIC Controls 45D331AR, Temp Control Relay with NTC Probe, For Traction Lift Monitoring Monitoring, 24VDC, Relay Output 3-digit display (0.5s response) CE/ROHS Approved Each unit needs just 17.5mm width Din Rail space EC Compliant Specification GIC Controls Part Number 45D331AR Control Output Relay NO 5 Amp/NC 3 Amp (Resistive) Input External NTC Sensor (Included) Mounting Style 17.5 x 75mm Din Rail Mount Trip Window 5 to 40 Deg C Supply Voltage 24VDC Termination Style Screw Weight 300g Factory Pack Qty 1 ROHS Yes CE Yes   Datasheet Datasheet

    Read more

    10 pcs in stock

    $149.00
    $175.82 inclGST
