Fastron Electronics Fast ONE SVG 75kvar-400V-4W, 75kVar/108A Static Var Generator(SVG)/Inverter for Reactive Power Correction, 3 Phase 4 Wire, Wall Mounted For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 5 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE SVG 75kvar-400V-4W Mounting Wall Mounted Function Reactive Power Correction Configuration 4 Wire Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Power Factor 0.99 IND - 0.99 CAP LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 (Optional) Termination Style Screw Dimensions 486x220x610mm Weight 60kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet User Manual

Read more less

Fastron Electronics Fast ONE SVG 50kvar-400V-4W-R, 50kVar Static Var Generator(SVG)/Inverter for Reactive Power Correction, 3 Phase 4 Wire, Rack Mounted For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. Features Automatic Power Factor Correction up to Cos φ = 0.99 Auto rotation of same capacitors for long life Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE SVG 50kvar-400V-4W-R Mounting Rack Mounted Function Reactive Power Correction Configuration 4 Wire Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Power Factor 0.99 IND - 0.99 CAP LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 (Optional) Termination Style Screw Dimensions 540x278x540mm Weight 34kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet User Manual

Read more less

Fastron Electronics Fast ONE SVG 50kvar-400V-4W, 50kVar Static Var Generator(SVG)/Inverter for Reactive Power Correction, 3 Phase 4 Wire, Wall Mounted For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. Features Automatic Power Factor Correction up to Cos φ = 0.99 Auto rotation of same capacitors for long life Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE SVG 50kvar-400V-4W Mounting Wall Mounted Function Reactive Power Correction Configuration 4 Wire Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Power Factor 0.99 IND - 0.99 CAP LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 (Optional) Termination Style Screw Dimensions 540x278x540mm Weight 34kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet User Manual

Read more less

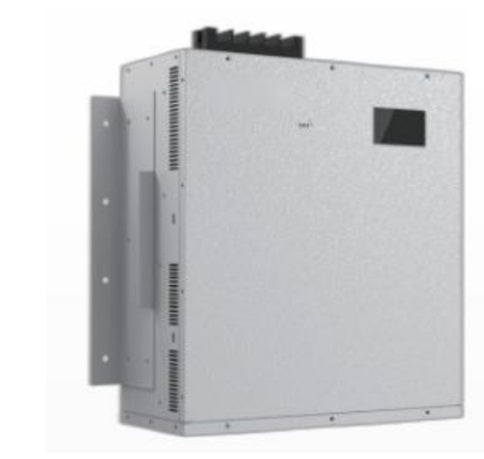

Fast One Fast One AHF 025-0.22-2L-W, Single Phase Active Harmonic Filter & Static Var Generator, 17Kvar/ 25 Amp, 220VAC +/-20%, WALL MOUNT For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installations Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast One AHF 025-0.22-2L-W Function Reactive Power Correction & Active Harmonic Filter Current /Load Rating 25 Amp Single Phase  /17Kvar Nominal Voltage (Un) 220VAC +/-20% Line to Line 50Hz  Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display Accuracy IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance Current imbalance < 5%  Comms RS485 (Optional) Mounting Style Wall Mount Termination Style Screw Dimensions 330x220x160mm Weight 25kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less

Fast ONE Complete AHF 200A-400V, Active Harmonic Filter & Static Var Generator, 140kvar/200 Amp @ 45 Deg C, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installations Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE Complete AHF 200A-400V, Function Reactive Power Correction & Active Harmonic Filter Configuration 2 x 100 Amp / 70kvar Modules Current /Load Rating 200 Amp per Phase (180 Amp @ 55 Deg C) /140 Kvar Nominal Voltage (Un) 400VAC Line to Line 50Hz +/-20% Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance Current imbalance < 5%  Comms RS485 (Optional) Termination Style Screw Dimensions L:950 x W:950 x H:2200mm Weight 100kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet AHF Module Datasheet Complete with Enclosure Datasheet User Manual

Read more less

Fastron Electronics Fast ONE SVG 100kvar-400V-4W-R, 400VAC L-L Static Var Generator(SVG)/Inverter for Reactive Power Correction and Compensation , Rack Mounted For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. Features Automatic Power Factor Correction up to Cos φ = 0.99 Auto rotation of same capacitors for long life Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE SVG 100kvar-400V-4W-R Mounting Rack Mounted Function Reactive Power Correction Configuration 4 Wire Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Power Factor 0.99 IND - 0.99 CAP LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 (Optional) Termination Style Screw Dimensions 540x278x540mm Weight 40kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet User Manual

Read more less

Fastron Electronics Fast ONE SVG 35kvar-400V-4W-R, 35kVar Static Var Generator(SVG)/Inverter for Reactive Power Correction and Compensation, Rack Mounted For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE SVG 35kvar-400V-4W-R Mounting Rack Mounted Function Reactive Power Correction Configuration 4 Wire Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Power Factor 0.99 IND - 0.99 CAP LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 (Optional) Termination Style Screw Dimensions 486x183x550mm Weight 45kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet User Manual Datasheet

Read more less

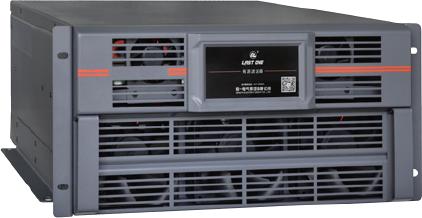

Fastron Electronics Fast ONE SVG 70kvar-400V-4W-R, 400VAC L-L Static Var Generator(SVG)/Inverter for Reactive Power Correction and Compensation , Rack Mounted For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 5 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE SVG 70kvar-400V-4W-R Mounting Rack Mounted Function Reactive Power Correction Configuration 4 Wire Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Power Factor 0.99 IND - 0.99 CAP LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms RS485 (Optional) Termination Style Screw Dimensions 486x220x610mm Weight 60kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet User Manual

Read more less

Fast ONE AHF 100A-400V, Active Harmonic Filter & Static Var Generator, 70Kvar/100 Amp, 3 Phase 3 Wire, 400VAC +/-20% For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features IP40  RS485 Comms IEC 654-1, UL Approved 1 Year Fastron Electronics Warranty For External Cabinet Mounting Control up to 6 Modules from a single HMI   Specification Fastron Part Number Fast ONE AHF 100A-400V Function Reactive Power Correction & Active Harmonic Filter Comms RS485 (Optional) Termination Style Screw Dimensions 153x237x36mm Weight 1kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP40 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Datasheet User Manual

Read more less

Fast ONE Complete AHF 200A-400V, Active Harmonic Filter & Static Var Generator, 140kvar/200 Amp @ 45 Deg C, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installations Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE Complete AHF 200A-400V, Function Reactive Power Correction & Active Harmonic Filter Configuration 2 x 100 Amp / 70kvar Modules Current /Load Rating 200 Amp per Phase (180 Amp @ 55 Deg C) /140 Kvar Nominal Voltage (Un) 400VAC Line to Line 50Hz +/-20% Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance Current imbalance < 5%  Comms RS485 (Optional) Termination Style Screw Dimensions L:950 x W:950 x H:2200mm Weight 400kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet AHF Module Datasheet Complete with Enclosure Datasheet User Manual

Read more less

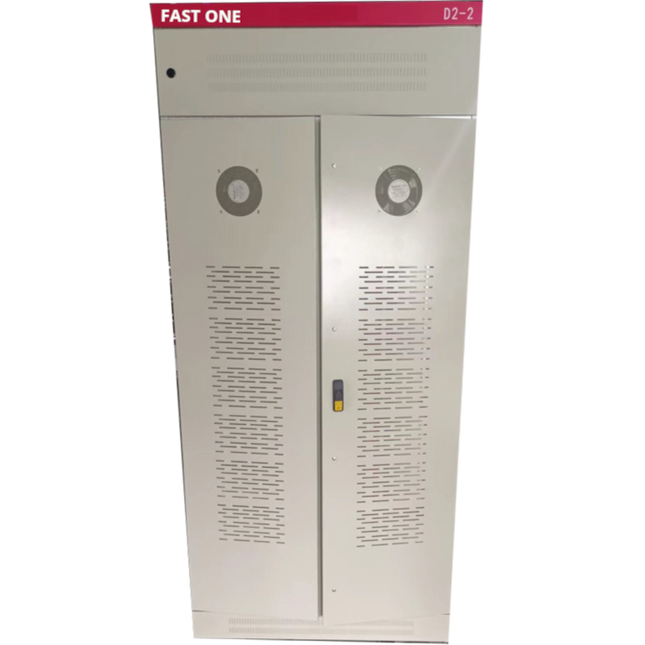

Fastron Electronics Fast ONE Complete AHF 300A-400V, Active Harmonic Filter & Static Var Generator, 300 Amp @ 45 Deg C, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installations Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE Complete AHF 300A-400V, Function Reactive Power Correction & Active Harmonic Filter Configuration 3 x 100 Amp / 70kvar Modules Current /Load Rating 300 Amp per Phase (270 Amp @ 55 Deg C) /210Kvar Nominal Voltage (Un) 400VAC Line to Line 50Hz +/-20% Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance Current imbalance < 5%  Comms RS485 (Optional) Termination Style Screw Dimensions L:950 x W:950 x H:2200mm Weight 460kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet AHF Module Datasheet Complete with Enclosure Datasheet User Manual

Read more less

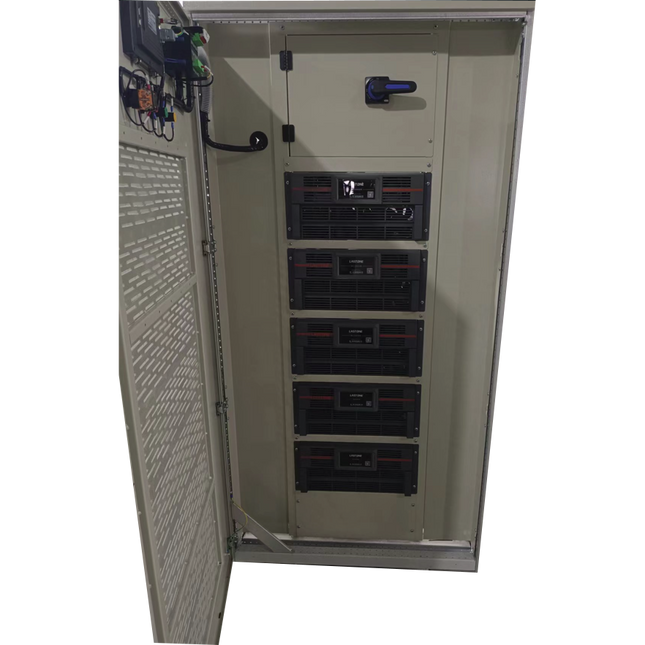

Fast ONE Complete AHF 500A-400V, Active Harmonic Filter & Static Var Generator, 350Kvar/500 Amp, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms IEC 654-1, UL Approved 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installations Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number Fast ONE Complete AHF 500A-400V Function Reactive Power Correction & Active Harmonic Filter Configuration 5 x 100 Amp/70Kvar Modules Current /Load Rating 500 Amp per Phase (450 Amp @ 55 Deg C)/350 Kvar Nominal Voltage (Un) 400VAC Line to Line 50Hz Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display Accuracy IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance PCurrent imbalance < 5%  Comms RS485 (Optional) Termination Style Screw Dimensions L:950 x W:950 x H:2200mm Weight 580kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet AHF Module Datasheet Complete with Enclosure Datasheet User Manual

Read more less
