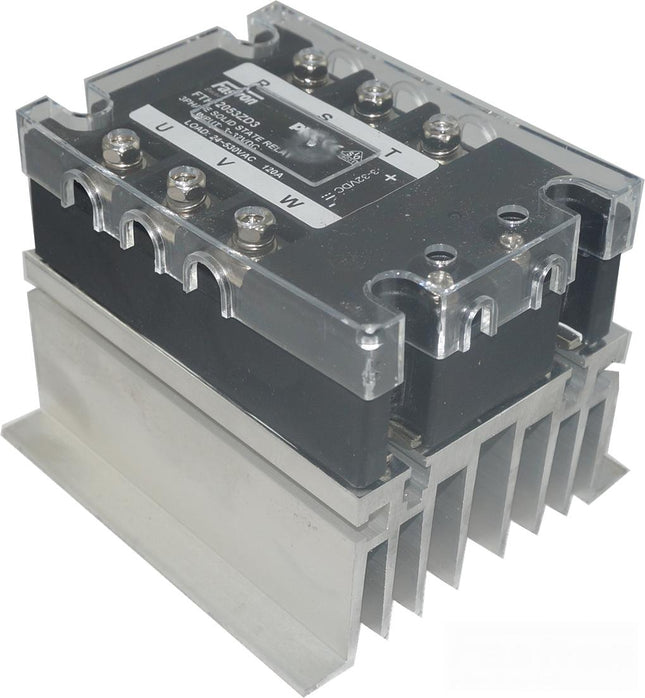

H71/110M + FTH2553ZD3, 4-32VDC Control, 3 x 13Amp, 48-530VAC Load, LED Status Indicator, Three Phase Solid State Relay 4-32VDC Control, 3 x 13Amp, 48-530VAC Load, with IP20 Cover Ratings from 25A to 120 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Fastron Part Number H71/110M + FTH2553ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 13 Amp (rms) per Phase @ 50 Deg C Surge Capability 350 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 650g Factory Pack Qty 10   Datasheet H71 Datasheet FTH Series Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here

Read more less

Crydom HS151DR-A4850, Panel or Din Rail Mount Solid State Relay, 90-280VAC Control Input, 90-530VAC Output, 40 Amps Features Ratings from 25A to 125 Amp @ 48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + A4850 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 630Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 48-530VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 20   Datasheets HS151DR Datasheet A4850 Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

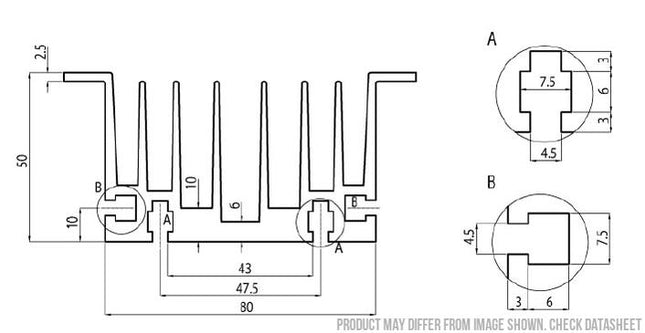

Fastron H71/110M + FTH2553ZA4, 90-280VAC Control, 3 x 13Amp, 48-530VAC Load, LED Status Indicator, Three Phase Solid State Relay 90-280VAC Control, 3 x 13Amp, 48-530VAC Load, with IP20 Cover Ratings from 25A to 120 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Fastron Part Number H71/110M + FTH2553ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 13 Amp (rms) per Phase @ 50 Deg C Surge Capability 350 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 650g Factory Pack Qty 10   Datasheet H71 Datasheet FTH Series

Read more less

Crydom HS151DR + HD6050-10, Panel or Din Rail Mount Heatsink, 4-32VDC Control Input, 48-660VAC Output, 40 Amps @ 40 Deg C ambient Features Ratings from 25A to 125 Amp @ 48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + HD6050-10 Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 93-32VDC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 630Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 48-660VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:145mm Unit Weight 450g Factory Pack Qty 20   Datasheets HS151DR HD6050 Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

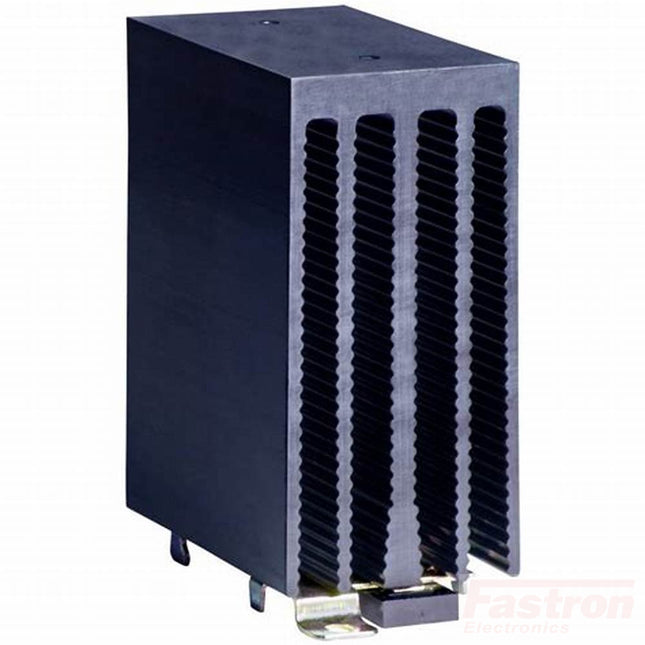

Crydom HS151DR-HD4850-10, Panel or Din Rail Mount Heatsink, 3-32VDC Control Input, Random Crossing 90-530VAC Output, 40 Amps @ 40 Deg C Features Ratings from 25A to 125 Amp @ 48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + HD4850-10 Switching Type Random Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 630Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 48-530VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 20   Datasheets HS151DR Datasheet HD4850-10 Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here

Read more less

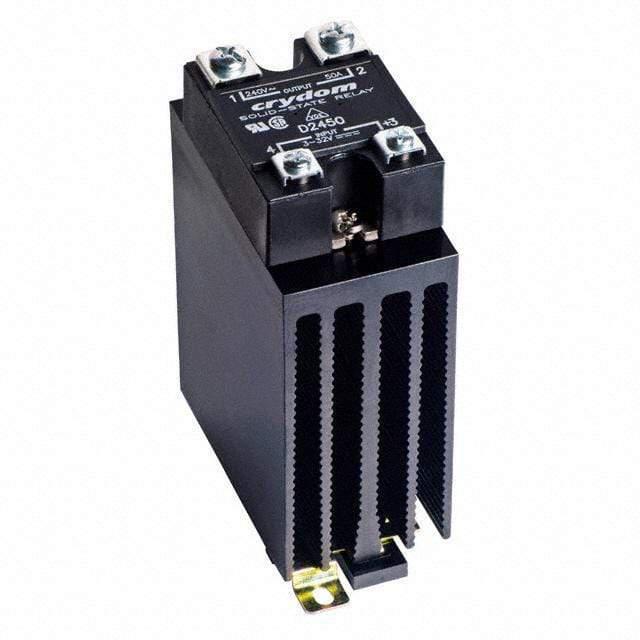

Crydom HS151DR-CWD4890H, Panel or Din Rail Mount Solid State Relay, 3-32VDC Control Input, LED Status, High Surge, 24-280VAC Output, 40 Amps Features Proportional Phase Control Input Ratings from 25A to 125 Amp @ 24-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Includes Plastic IP20 Terminal Cover Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + CWD4890H Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 1350Amp (peak) Special Feature LED Status Indicator + High Surge Mounting Style Panel Mount Load Voltage 48-660VAC Max Non Repetitive Peak Voltage 1200 Vp Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 20   Datasheets HS151DR Datasheet CWD4890HP Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS501DR + 10PCV2425, Single Phase Proportional Phase Controller with Heatsink, 2-10VDC Input, 240V, 9 Amps Features Proportional Phase Control Input Ratings from 25A to 90 Amp @ 180-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS501DR + 10PCV2425 Switching Type Phase Angle (Random Crossing) ROHS/CE/UL Yes Control Voltage 2-10V Proportional Input Load Current 9 Amp (rms) @ 40 Deg C Surge Capability 239 Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Din Rail or Panel Mount Load Voltage Range 180-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Dimensions L:81mm x W:45mm x D:73.4mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS501DR 10PCV Series Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS501DR + H12D4840DE, Panel or slide on Din Rail Dual Solid State Relay, 3-32VDC Control, LED Status 1200V Transient, 24-530VAC Output, 2 x 5Amps Features Ratings from 25A to 40 Amp @48-530 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS501DR + H12D4840DE Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 2 x 5 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature Dual SSR Mounting Style Din Rail or Panel Mount Load Voltage Range 48-530VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Faston Terminals Dimensions L:79.9mm x W:45mm x D:40.3mm Unit Weight 296g Factory Pack Qty 20   Datasheet HS501DR H12D Series Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

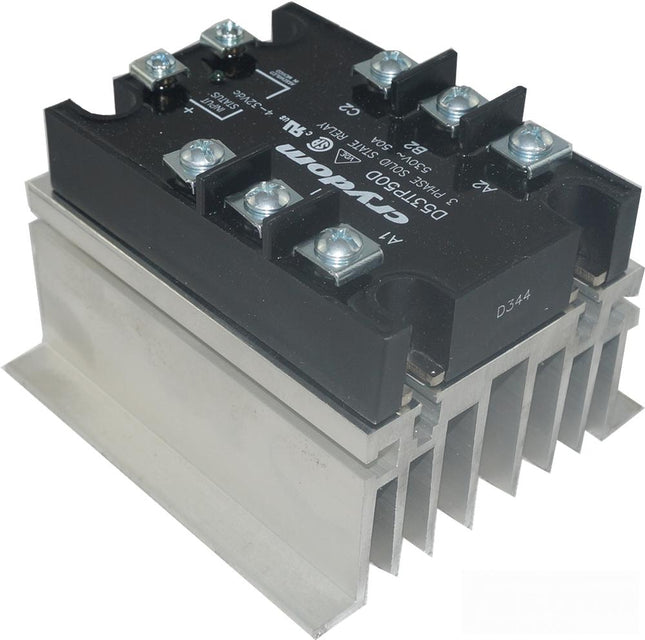

H71/110M + D53TP50D Three Phase Solid State Relay 4-32VDC Control, 3 x 13Amp, 48-530VAC Load Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Specification Crydom Part Number H71/110M + D53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 13 Amp (rms) per Phase @ 50 Deg C Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Din Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Dimensions L:110mm x W:100mm x D:90mm Termination Style Screw Weight 650g Factory Pack Qty 10   Datasheet H71 Datasheet D53TP Series Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here

Read more less

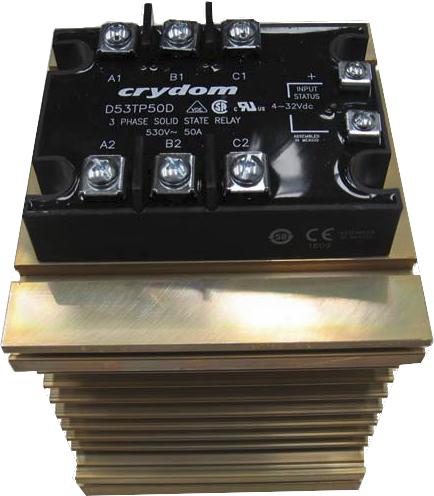

Fastron H31/110M + D53TP50D, Three Phase Solid State Relay with Heatsink 3.5-32VDC Control, 3 x 34Amp, 48-530VAC Load Features Ratings from 25 to 120 Amp @ 48-533 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number H31/110M + D53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 3 x 34 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Dimensions L:110 x W:125 x D:180mm Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 2kg Factory Pack Qty 10 Datasheet Product Datasheet H31 Datasheet Equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron H31/110M + A53TP50D, Three Phase Solid State Relay with Heatsink 3.5-32VDC Control, 3 x 34Amp, 48-530VAC Load Features Ratings from 25 to 120 Amp @ 48-533 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number H31/110M-B + A53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 34 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 48-530VAC Dimensions L:110 x W:125 x D:180mm EMC Compliant Level 3 Termination Style Screw Unit Weight 2kg Factory Pack Qty 10 Datasheet Product Datasheet H31 Datasheet Equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
