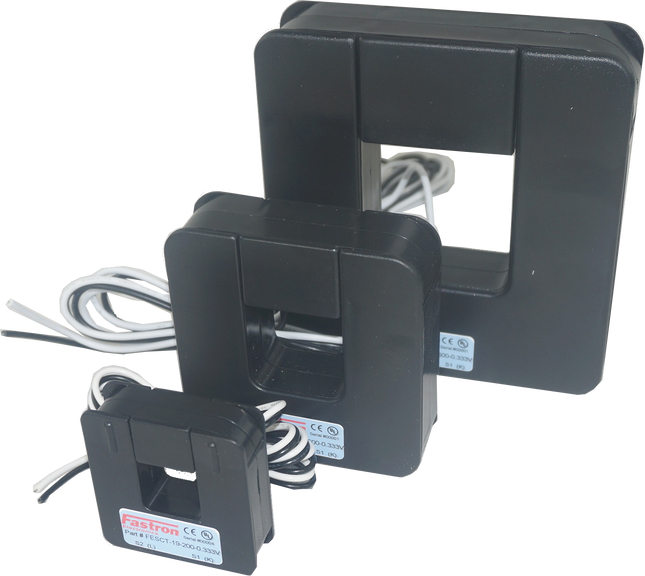

Fastron Electronics FESCT-19-250-100mA, 250Amp/100mA measurement Split Core CT's, w/1M Flying Leads, HY2.0 Connection, 19x19mm Aperture, 100mV Class 1 Series Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FESSCT-19-250-100mA Technology Split Core AC Current Transformer Ratio 250/100mA Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 100mA (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 250Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCT-19-100-100mV, 100Amp measurement Split Core CT's, Class 1, w/1M Flying Leads, HY2.0 Connection, 19x19mm Aperture Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FESSCT-19-100-100mV Technology Split Core AC Current Transformer Ratio 100/100mV Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 100mVAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 100Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

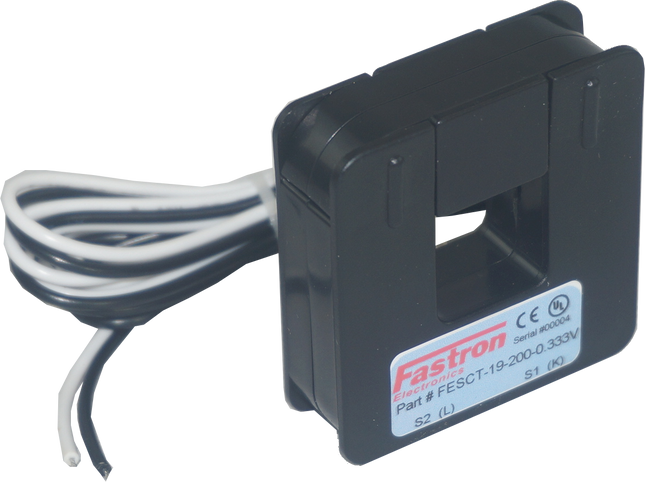

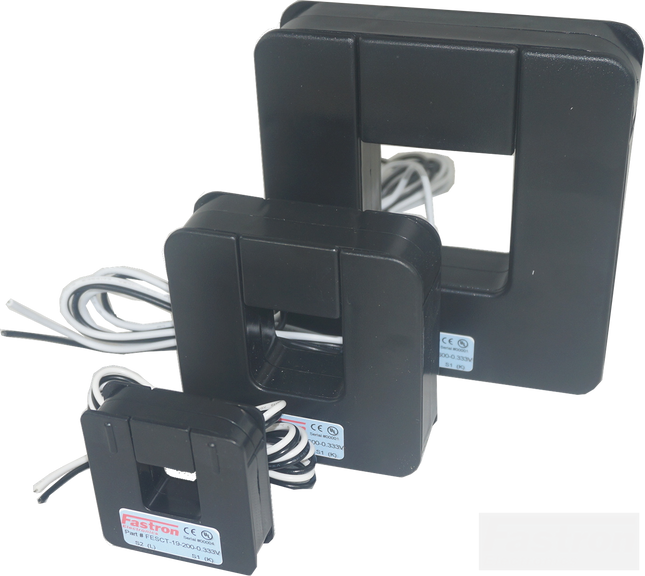

Fastron Electronics FESCT-19-200-100mV, 200Amp measurement Split Core CT's, w/1M Flying leads, 19x19mm Aperture, Class 1 Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FESCT-19-200-100mV Technology Split Core AC Current Transformer Ratio 200/100mV Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 100mVAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 200Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCT-19-150-100mA, 150Amp/100mA measurement Split Core CT's, Class 1, w/1M Flying Leads, HY2.0 Connection, 19x19mm Aperture, 100mV Class 1 Series Current Transformer Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FESSCT-19-150-100mA Technology Split Core AC Current Transformer Ratio 150/100mA Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 100mA (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 150Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCT-19-50-100mV, 50Amp measurement Split Core CT's, w/1M Flying Leads, HY2.0 Connection, 19x19mm Aperture, Class 1 Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FESSCT-19-50-100mV Technology Split Core AC Current Transformer Ratio 50/100mV Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 100mV AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 50Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics FESCTHY-3000-1250, 1250Amp 100mA Class 1 Measurement Split Core CT's, 1M Flying Leads, 76x127mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCTHY-3000-1250 Technology Split Core AC Current Transformer Ratio 1200/100mA Aperture Size 76x127mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 1250Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Installation Guide FESCTHY Install Guide

Read more less

Fastron Electronics FESCTHY-3000-1200, 1200Amp 100mA Class 1 Measurement Split Core CT's, 1M Flying Leads, 76x127mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCTHY-3000-1200 Technology Split Core AC Current Transformer Ratio 1200/100mA Aperture Size 76x127mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 1200Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Installation Guide FESCTHY Install Guide

Read more less

Fastron Electronics FESCTHY-19-400-100mA, 400Amp measurement Split Core CT's, w/1M Flying leads, 19x19mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FESSCT-19-400-100mA Technology Split Core AC Current Transformer Ratio 400/100mA Aperture Size 19 x 19mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 400Amp x 1.2 Termination Style 1M Twisted Pair 0.34mm^2 Unit Weight 350g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Fastron Electronics FESCTHY-3000-1000, 1000Amp 100mA Class 1 Measurement Split Core CT's, 1M Flying Leads, 76x127mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCTHY-3000-1000 Technology Split Core AC Current Transformer Ratio 1000/100mA Aperture Size 76x127mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 1000Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Installation Guide FESCTHY Install Guide

Read more less

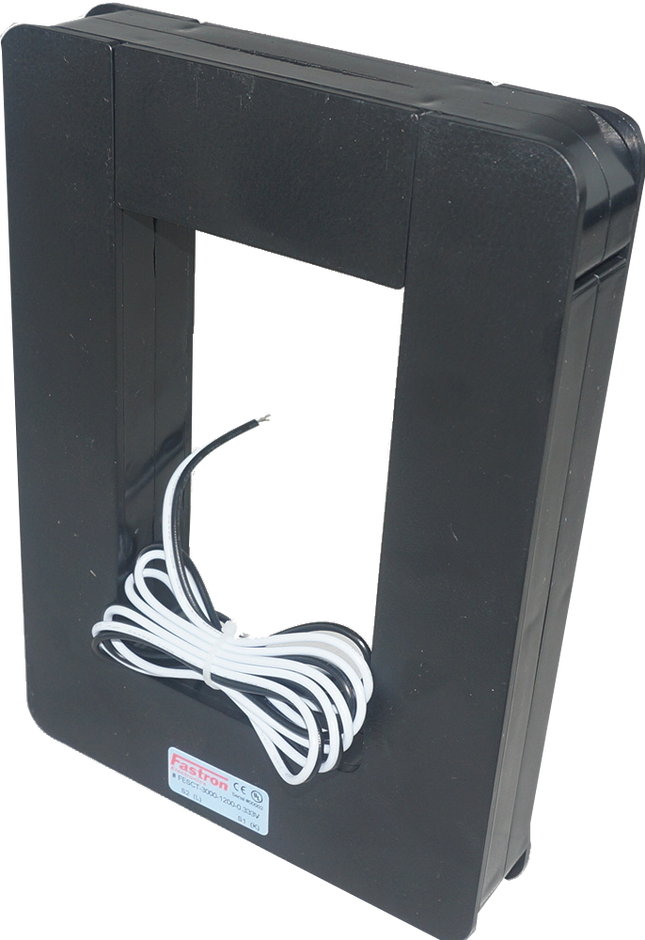

Fastron Electronics FESCTHY-3000-1500, 1500Amp 100mA Class 1 Measurement Split Core CT's, 1M Flying Leads, 76x127mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCTHY-3000-1500 Technology Split Core AC Current Transformer Ratio 1500/100mA Aperture Size 76x127mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 1500Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Installation Guide FESCTHY Install Guide

Read more less

Fastron Electronics FESCTHY-3000-2000, 2000Amp 100mA Class 1 Measurement Split Core CT's, 1M Flying Leads, 76x127mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCTHY-3000-2000 Technology Split Core AC Current Transformer Ratio 2000/100mA Aperture Size 76x127mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 2000Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Installation Guide FESCTHY Install Guide

Read more less

Fastron Electronics FESCTHY-3000-2500, 2500Amp 100mA Class 1 Measurement Split Core CT's, 1M Flying Leads, 76x127mm Aperture Features Quick Release Split Core System 1m Flying Leads Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FESCTHY-3000-2500 Technology Split Core AC Current Transformer Ratio 2500/100mA Aperture Size 76x127mm VA Rating N/A Accuracy Class Class 1 Output 100mAAC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 55°C Continuous Current (max) 2500Amp x 1.2 Termination Style Terminals Unit Weight 3000g Factory Pack Qty 9   Datasheet Product Datasheet Installation Guide FESCTHY Install Guide

Read more less
