Fastron H31/110M-B + FTH6053ZD3, Three Phase Solid State Relay 4-32VDC Control, 3 x 34Amp, 48-530VAC Load, LED Status Indicator, with IP20 Cover & Front Mounting Brackets Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Specification Fastron Part Number H31/110M-B + FTH6053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 34 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Panel Mount Dimensions L:110 x W:125 x D:180mm Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet Product Datasheet H31 Datasheet

Read more less

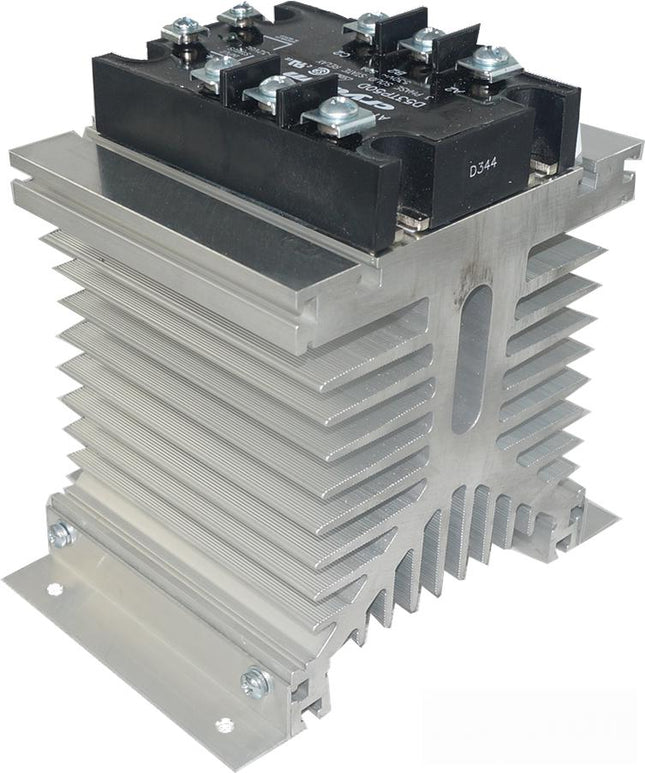

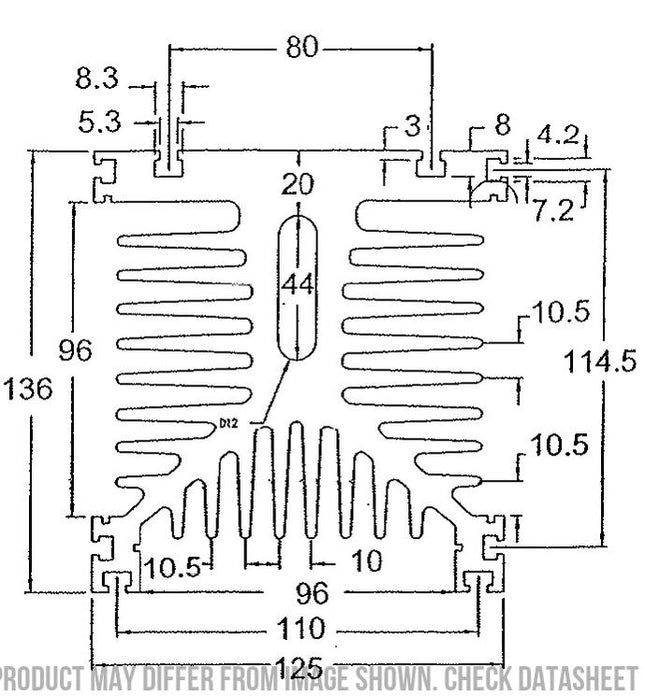

Fastron H31/110M-B + A53TP50D, Three Phase Solid State Relay with Heatsink 4-32VDC Control, 3 x 34Amp, 48-530VAC Load Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Specification Fastron Part Number H31/110M-B + A53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 34 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Dimensions L:110 x W:125 x D:180mm Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 2kg Factory Pack Qty 10 Datasheet Product Datasheet H31 Datasheet

Read more less

Fastron HS103DR-FTH6053ZA4, Three Phase Solid State Relay 90-280VAC Control, 3 x 21Amp, 48-530VAC Load, LED Status Indicator, with IP20 Cover Ratings from 25A to 70 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Crydom Part Number HS103DR + FTH6053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 23 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Din Rail Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 900g Factory Pack Qty 10   Datasheet HS103DR Product Datasheet

Read more less

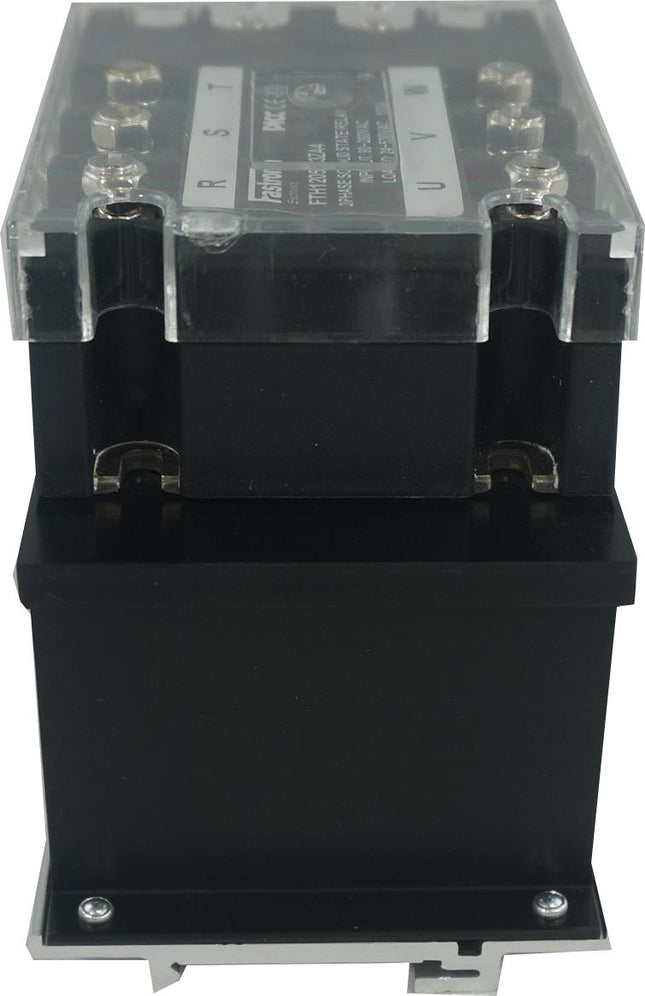

Fastron HS103DR + FTH2553ZD3, 4-32VDC Control, 3 x 21Amp, 48-530VAC Load, LED Status Indicator - Phase Solid State Relays + Heatsink, with IP20 Cover Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Crydom Part Number HS103DR + FTH2553ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 3 x 18 Amp (rms) per Phase Surge Capability 350 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Din Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 900g Factory Pack Qty 10   Datasheet HS103DR D53TP Series

Read more less

Fastron HS103DR + FTH6053ZD3, 4-32VDC Control, 3 x 21Amp, 48-530VAC Load, LED Status Indicator 3 Phase Solid State Relays + Heatsink, with IP20 Cover Ratings from 25A to 70 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Crydom Part Number HS103DR + FTH6053ZD3 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC Load Current 3 x 23 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator, with IP20 Cover Mounting Style Din Rail Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 900g Factory Pack Qty 10   Datasheet HS103DR Product Datasheet

Read more less

HS103DR-D53TP50D, Solid State Relay, and Heatsink Assembly, 3 Phase 4-32VDC Control, 19.33 Amp per phase @ 40 Deg C, 48-530VAC Load, LED Status Indicator Features Ratings from 25A to 50 Amp @ 70-530 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number HS103DR + D53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 3 x 21 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Din Rail Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10 Datasheet HS103DR D53TP Series App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron H31/110M-B + D53TP50D, Three Phase Solid State Relay with Heatsink 3.5-32VDC Control, 3 x 34Amp, 48-530VAC Load Features Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number H31/110M-B + D53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 3 x 34 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Dimensions L:110 x W:125 x D:180mm Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 2kg Factory Pack Qty 10 Datasheet Product Datasheet H31 Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
