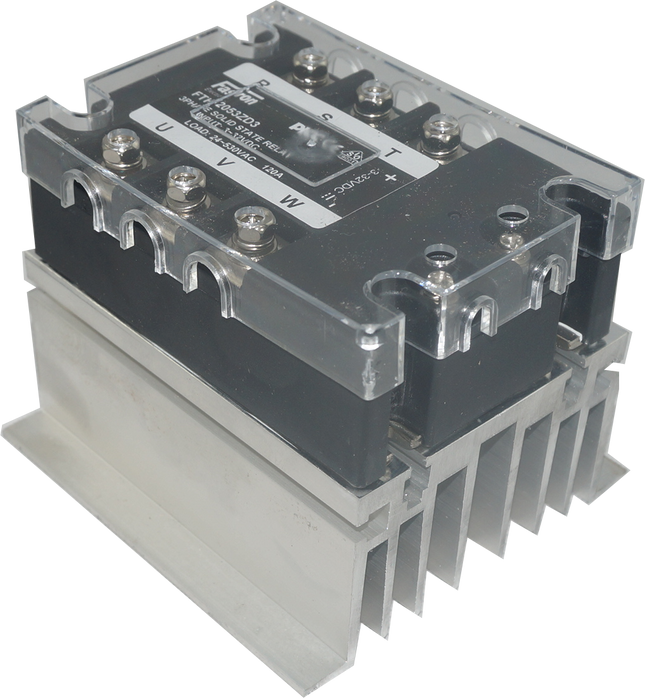

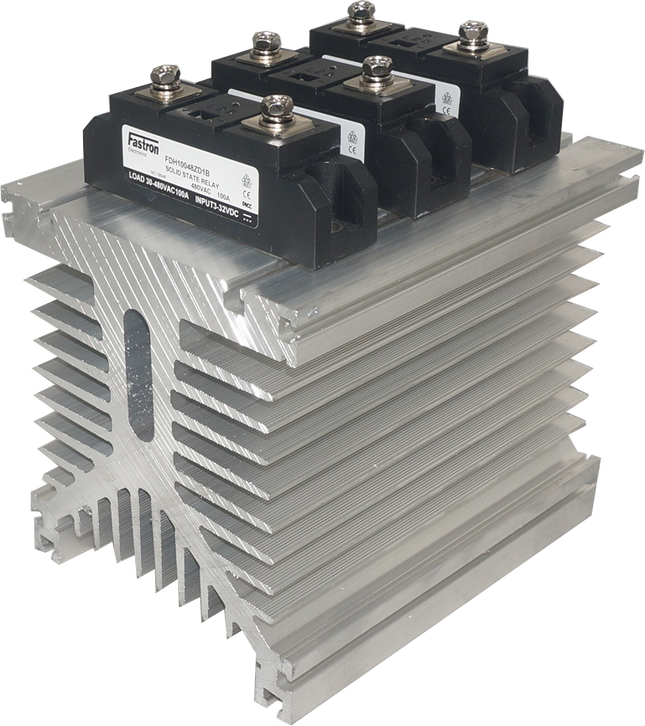

F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

Read more less

F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

Read more less

F135 Series Panel Mount 3 Phase Solid State Contactors, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A   If you need a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

Read more less

Crydom DR2260A35U, Solid State Relay 4-32VDC Control, 35A, 48-600VAC Load, Din Rail Mount, w/status LED Features Ratings from 20 Amp up to 35 Amp @ 600 VAC Mosfet output for heavy industrial loads UL/CSA/VDE Approved, CE Compliant to EN60950-1 Din Rail Mount with bonded Heat sink Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D35U Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 35 Amp (rms) @ 45 Deg C Ambient, 28 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 25 Amp (rms) @ 40 Deg C Ambient, 20 Amp (rms) @ 50 Deg C Ambient Surge Capability 1290 Amp RMS Special Feature None Mounting Style DIN Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR2260D35V, Solid State Contactor SSR, Single Phase 4-32VDC Control, 35A, 48-600VAC Load, Din Rail Mount Features Ratings from 20A to 35 Amp @ 48-660 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D35V Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 35 Amp (rms) @ 40 Deg C Ambient, 30 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 25 Amp (rms) @ 40 Deg C Ambient, 20 Amp (rms) @ 50 Deg C Ambient Surge Capability 1290 Amp (peak) Special Feature Contactor Style Terminals Mounting Style DIN Rail Mount Load Voltage Range 48 - 660VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives SSR Style CKRD4830 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR2260A35V, Solid State Contactor SSR, Single Phase 90-280VAC Control, 35A, 48-600VAC Load, Din Rail Mount Features Ratings from 20A to 35 Amp @ 48-660 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260A35V Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 90-280VAC Load Current (single unit) 35 Amp (rms) @ 40 Deg C Ambient, 30 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 25 Amp (rms) @ 40 Deg C Ambient, 20 Amp (rms) @ 50 Deg C Ambient Surge Capability 1290 Amp (peak) Special Feature Contactor Style Terminals Mounting Style DIN Rail Mount Load Voltage Range 48 - 660VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives SSR Style CKRD4830 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR2260D20V, Solid State Contactor SSR, Single Phase 4-32VDC Control, 20A, 48-600VAC Load, Din Rail Mount w/status LED Features Ratings from 20 Amp up to 30 Amp @ 200 VDC Mosfet output for heavy industrial loads UL/CSA/VDE Approved, CE Compliant to EN60950-1 Din Rail Mount with bonded Heat sink Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D20V Switching Type DC Load ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 20 Amp (rms) @ 45 Deg C Ambient, 18 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 16.5 Amp (rms) @ 40 Deg C Ambient, 13 Amp (rms) @ 50 Deg C Ambient Surge Capability 286 Amp RMS Special Feature None Mounting Style DIN Rail Mount Load Voltage Range 48 - 600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR2260D30V, Solid State Contactor SSR, Single Phase 4-32VDC Control, 30A, 48-600VAC Load, Din Rail Mount w/status LED Features Ratings from 20A to 35 Amp @ 48-660 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D30V Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 30 Amp (rms) @ 40 Deg C Ambient, 26 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 23 Amp (rms) @ 40 Deg C Ambient, 18.5 Amp (rms) @ 50 Deg C Ambient Surge Capability 716 Amp (peak) Special Feature Contactor Style Terminals Mounting Style DIN Rail Mount Load Voltage Range 48 - 660VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives SSR Style CKRD4830 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron GPH10048ZA3, Solid State Contactor SSR, Single Phase 90-280VAC Control, 100A, 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH10048ZA3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 90-280VAC Load Current (single unit) 92 Amp (rms) @ 20 Deg C Ambient, 68 Amp (rms) @ 40 Deg C Ambient Surge Capability 1600 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron GPH10048ZD3, Solid State Contactor SSR, Single Phase 5-24VDC Control, 100Amp 70-480VAC Load, Din Rail Mount Ratings from 10A to 100 Amp @ 70-480 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 IP20 AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Spec Fastron Part Number GPH10048ZD3 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 5-24VDC Load Current (single unit) 92 Amp (rms) @ 20 Deg C Ambient, 68 Amp (rms) @ 40 Deg C Ambient Surge Capability 1600 Amp (peak) Special Feature Contactor Style IP20 Terminals Mounting Style DIN Rail Mount Load Voltage Range 70 - 480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 500g Factory Pack Qty 20 Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR2260D20U, Solid State Relay 4-32VDC Control, 20A, 48-600VAC Load, Din Rail Mount, w/status LED Features Ratings from 20 Amp up to 35 Amp @ 600 VAC Mosfet output for heavy industrial loads UL/CSA/VDE Approved, CE Compliant to EN60950-1 Din Rail Mount with bonded Heat sink Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number DR2260D20U Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4 - 32VDC Load Current (single unit) 20 Amp (rms) @ 45 Deg C Ambient, 18 Amp (rms) @ 50 Deg C Ambient Load Current (multiple units) 16.5 Amp (rms) @ 40 Deg C Ambient, 13 Amp (rms) @ 50 Deg C Ambient Surge Capability 286 Amp RMS Special Feature None Mounting Style DIN Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 298g Factory Pack Qty 20   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
