Solid Core AC Current Transformers with 32mm - 61mm Aperture or up to 61 x 12mm Busbar
-

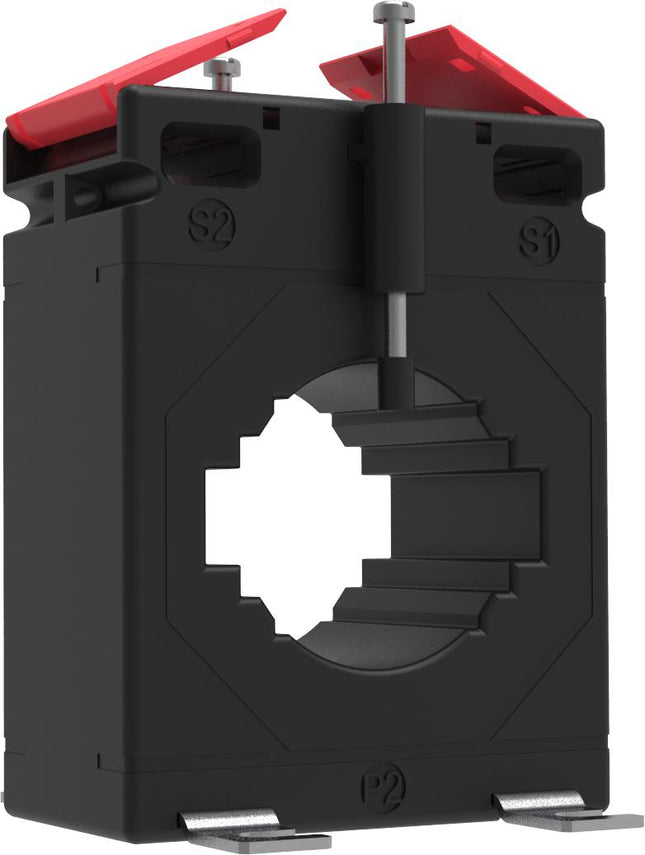

Rish Xmer 74-50 (45) 800/5 Class 1, 15VA, ⌀ 51mm or 51 x 12mm Busbar
Rishabh Rish Xmer 74-50 (45) 800/5 Class 1 Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 74-50 (45) 800/5 Class 1 Technology AC Current Transformer Ratio 800/5 Aperture Size ⌀ 41mm or 51 x 12mm Busbar VA Rating 15VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 800Amp x 1.2 Termination Style Screw Unit Weight 0.6kg Factory Pack Qty 9 Datasheet Product Datasheet
$71.40
$84.25 inclGST -

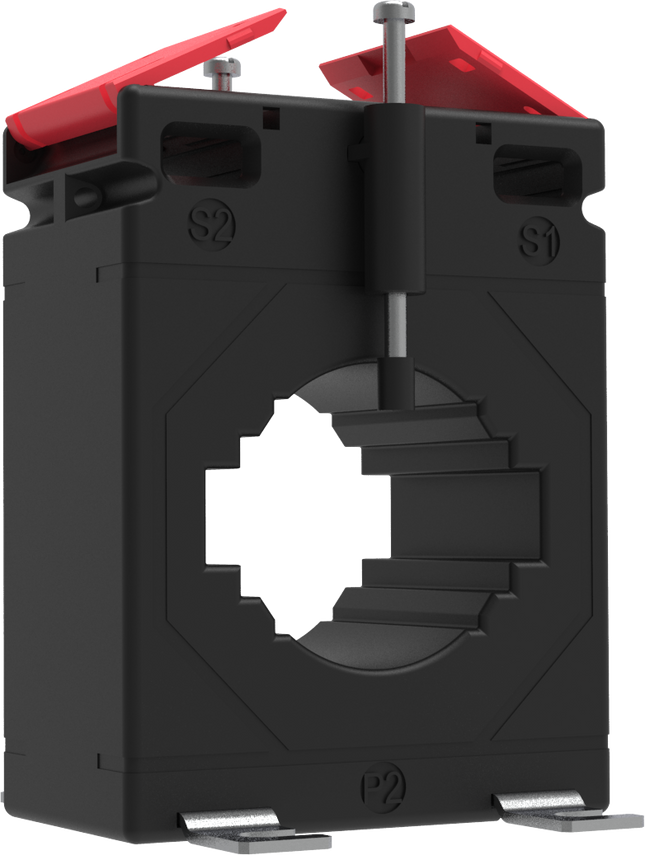

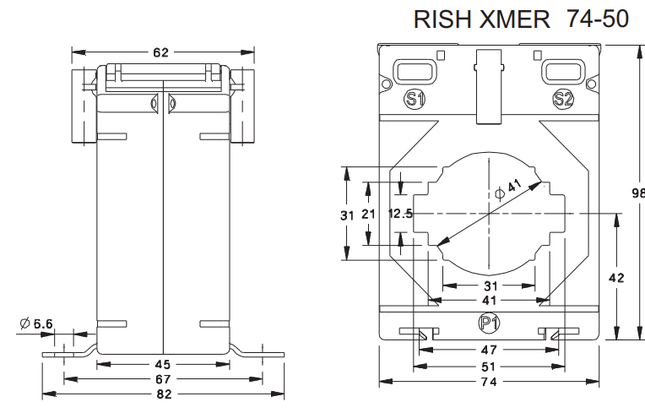

Rish Xmer 74-50 (45) 800/5 Class 0.2, 1.5VA, 41mm Aperture
Rish Xmer 74-50 (45) 800/5 Class 0.2, 1.5VA, 41mm Aperture Current Transformer Features High Accuracy Class 0.2 Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Rish Xmer 74-50 (45) 800/5 Class 0.2 Technology AC Current Transformer Ratio 800/5 Aperture Size 51 x 12.5mm VA Rating 1.5VA Accuracy Class Class 0.2 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 500g Factory Pack Qty 9 Datasheet Product Datasheet
$79.00
$93.22 inclGST
