Solid Core AC Current Transformers up to 30mm Aperture, or 31x10mm Busbar

Rishabh CT 500/5 Class 1 30VA 62/30 (50), Current Transformer 500/5Amp CT 30VA HIGH BURDEN Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 500/5 Class 1 15VA 62/30 (50) Technology AC Current Transformer Ratio 500/5 Aperture Size 31mm or 11x40mm Busbar VA Rating 30VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 500Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

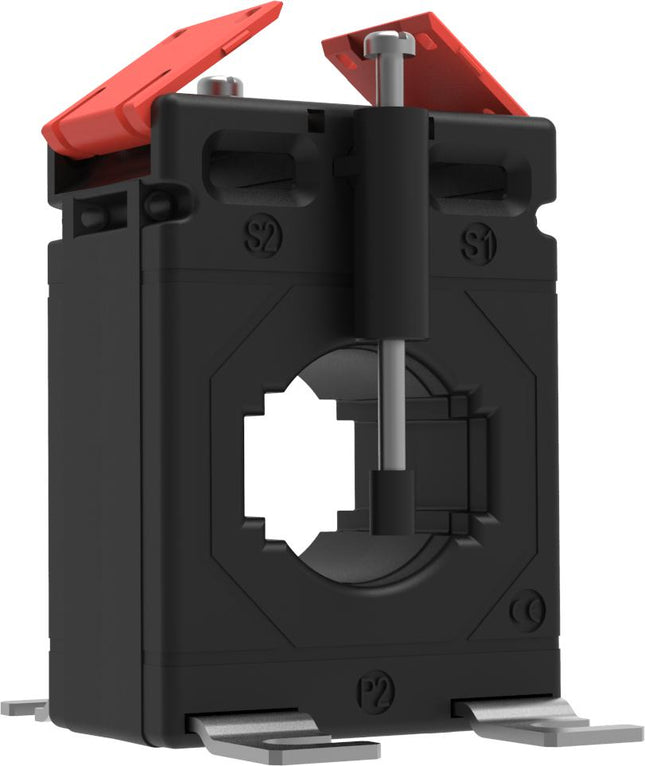

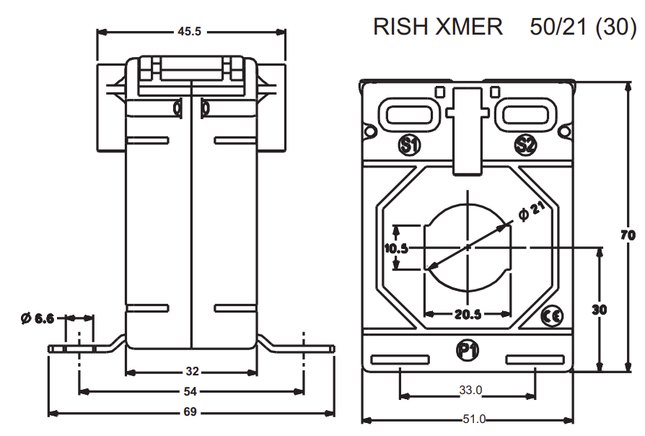

Rishabh CT 50/5 Class 1 1VA 50/21 (30) Series Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number CT 50/5 Class 1 1VA 50/21 (30) Technology AC Current Transformer Ratio 50/5 Aperture Size ⌀ 21mm or 20x10mm Busbar VA Rating 1VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less
