RTR Energia EA0525500500000 Power Factor Correction Capacitor, Single Phase, Dry Type 5.0 KVAR, 57.74uF, 525V, 50HZ, 60 x 200mm Characteristics and utility 5.0 kVar @ 525V @ 50 Hz , 57.74uF10.0kvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525500500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 200mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 5.0 Kvar Capacitance 57.74uF Tolerance On Capacitance -5% + 10% Current (In) 9.52 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet

Read more less

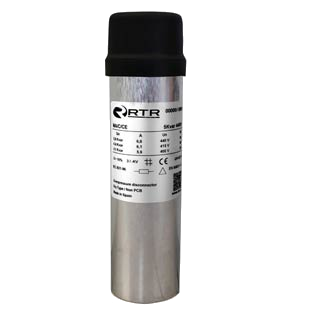

RTR Energia EA0525167500000 Power Factor Correction Capacitor, Single Phase, Dry Type 1.67 KVAR, 19.29uF, 525V, 50HZ, 60 x 150mm Characteristics and utility 1.67 kVar @ 525V @ 50 Hz , 19.29uF10.0kvar 10kvar Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification RTR Energia Part Number EA0525167500000 Technology Dry Type, Low Loss, Self Healing Dimensions 60 x 150mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 1.67 Kvar Capacitance 19.29uF Tolerance On Capacitance -5% + 10% Current (In) 3.18 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES DWCAP system (Patented) internal windings Displacement YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Unit Weight 0.5kg Factory Pack Quantity 25   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog
