PMG500-S, Single Phase Diode Rectifier Bridge, Switchable, 2 Amp 450VDC Output, 500VAC, Uin max 500VAC rms Features Low forward voltage drop CE Certified  Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Part Number PMG500-S AC Line voltage 500VAC Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 2 Amp DC Package Size Itsm 20 Amp VF(to) 0.85V Tj(max) 150°C rF 11mΩ Terminals M5 (5Nm) Switching Terminals screw Weight 70g Factory Pack Qty 10   Datasheet Datasheet

Read more less

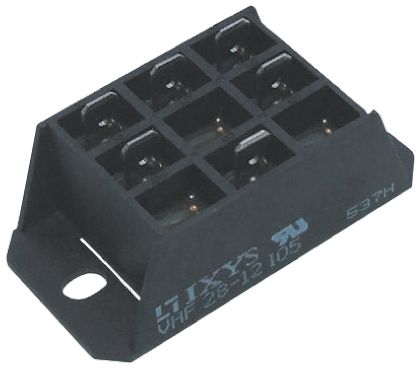

IXYS VHF28-16io5, Single Phase Half Controlled Rectifier Bridge, 32 Amp, 480VAC Line Features For AC or DC Variable Voltage Output Up to 15KW Electrically insulated base plate Industrial standard package 2500V Isolation UL Recognized E72445 Applications Power Supplies Rectifier for drives applications Rectifiers for UPS Battery Chargers Spec Crydom Part Number VHF28-16io5 AC Line voltage 480V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 85 Deg C 32 Amp Package Size W:31.7mm L:63.5mm D:19.7mm Itsm 330 A VF 1.6V Tj(max) 125°C rF 15m Ohm Terminals Faston (6.3mm) Hole Centres 48.2mm (M5) Gate Terminals Faston (6.3mm) R th(j-c) 1.4°C/W R th(c-h) 2.0°C/W Weight 50g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See B614F-2T or PSD51/18 for higher rated equivalent App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Semikron SKB 50/16 A3, Single Phase Diode rectifier Bridge, 50Amp, 1600V, Replaces IXYS VBO52-12NO7, Powersem PSB55T/12, PSB 55/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKB 50/16 A3 AC Line voltage 400V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 50 Amp Package Size W:60mm L:60mm D:30mm Itsm 750 A VF(to) 0.85V Tj(max) 150°C rF 8mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 0.64°C/W R th(c-h) 0.06°C/W Weight 250g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Crydom M505015F, Bridge, single phase, half controlled, 480VAC input, 50 Amp, with freewheeling diode Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Spec Crydom Part Number M505015F AC Line voltage 480V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 100 Deg C 100 Amp Package Size W:57.5mm L:44mm D:34.6mm Itsm 600 A VF(to) 1.7V Tj(max) 125°C rF N/A Terminals M5 (1.5Nm) Hole Centres 41.2mm (M5) Gate Terminals N/A R th(j-c) 0.7°C/W R th(c-h) N/A Weight 106g Isolation 2.5kV Factory Pack Qty 10 Certification UL Listed Crydom Headquarters USA   Datasheet Product Datasheet Alternatives M5010012F App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Powersem PSBH55/12 Single Phase Half Controlled Rectifier Bridge, Replaces Semikron SKBH40/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSBH55/12 AC Line voltage 400V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 85 Deg C 46 Amp Package Size W:67mm L:50mm D:30mm Itsm 520 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals M5 (5Nm) Hole Centres 48.2mm (M5) Gate Terminals M3 (1.5Nm) R th(j-c) 1.2°C/W R th(c-h) 0.11°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives

Read more less

Semikron SKB 30/16 A1, Single Phase Diode rectifier Bridge, 30Amp, 1600V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKB 30/16 A1 AC Line voltage 533V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 30 Amp Package Size W:55mm L:45mm D:24mm Itsm 370 A VF(to) 0.85V Tj(max) 150°C rF 12mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 0.7°C/W R th(c-h) 0.1°C/W Weight 125g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Littlefuse-IXYS, VBO130-12N07, Single Phase Diode rectifier Bridge, 130Amp, 1200V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification IXYS Part Number VBO130-12N07 AC Line voltage 400V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 130 Amp Package Size W:72mm L:60mm D:28mm Itsm 1.8kA VF(to) 0.77V Tj(max) 150°C rF 3.4mΩ Terminals M6 (5Nm) Hole Centres 80mm (M5) Gate Terminals N/A R th(j-c) 0.5°C/W R th(c-h) 0.20°C/W Weight 273g Isolation 3kV Factory Pack Qty 10 Certification UL Listed IXYS Headquarters USA   Datasheet Product Datasheet Alternatives See PSD192T/16 for Fastron Terminal equivalent

Read more less

Techsem MDQ150-16-221H5, Single Phase Diode Rectifier Bridge, 145 Amp, 1600V, 42 x 94mm Package Features Package with DCB ceramic base plate Isolation voltage 3600 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Techsem Part Number MDQ150-16-221H5 AC Line voltage 533V Device Configuration Single Phase Rectifier Bridge DC Output @ 100 Deg C 145 Amp Package Size W:94mm L:42mm D:30mm Itsm 1800 A VF(to) 0.75V Tj(max) 150°C rF 1.9mΩ Terminals M5 (4Nm) Hole Centres 68mm (M5) Gate Terminals N/A R th(j-c) 0.148°C/W R th(c-h) 0.10°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See PSD192T/16 for alternative

Read more less

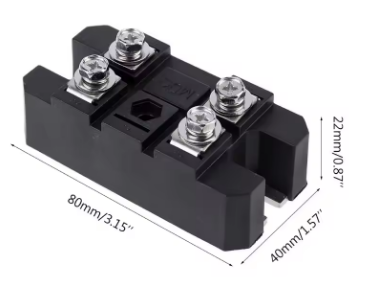

Huajing Rectifier MDQ100-160, 3 Phase Diode Rectifier Bridge, 100 Amp, 1600V, 40 x 90mm Package Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Techsem Part Number MDQ100-160 AC Line voltage 533V Device Configuration Single Phase Rectifier Bridge DC Output @ 100 Deg C 100 Amp Package Size W:80mm L:40mm D:30mm Itsm 1800 A VF(to) 0.75V Tj(max) 150°C rF 1.9mΩ Terminals M5 (4Nm) Hole Centres 68mm (M5) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.028°C/W Weight 180g Isolation 3kV Factory Pack Qty 10 Huajing Headquarters China   Datasheet Product Datasheet Alternatives See PSD125/16 for alternative

Read more less

Semikron SKB 52/16, Single Phase Diode rectifier Bridge, 60Amp, 1600V, Replaces IXYS VBO52-12NO7, Powersem PSB55T/12, PSB 55/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKB 52/16 AC Line voltage 533V Device Configuration Phase Diode Rectifier Bridge DC Output @ 85 Deg C 60 Amp Package Size W:42mm L:72mm D:30mm Itsm 500 A VF(to) 0.85V Tj(max) 150°C rF 8mΩ Terminals M5 (5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 0.64°C/W R th(c-h) 0.06°C/W Weight 250g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Semikron SKCH28/16, Single Phase Half Controlled Rectifier Bridge with Freewheeling Diode, 28 Amp, 1600V Features For AC or DC Variable Voltage Output Up to 15KW Electrically insulated base plate Industrial standard package 2500V Isolation UL Recognized E72445 Applications Power Supplies Rectifier for drives applications Rectifiers for UPS Battery Chargers Spec Semikron Part Number SKCH28/08 AC Line voltage 480V Device Configuration Single Phase Half Controlled Rectifier Bridge, DC Output @ 85 Deg C 30 Amp Package Size W:31.7mm L:63.5mm D:19.7mm Itsm 320 A VT 2.25V Tj(max) 125°C rF Not Published Terminals Faston (6.3mm) Hole Centres 48.2mm (M5) Gate Terminals Faston (6.3mm) R th(j-c) 0.9°C/W R th(c-h) Not Published Weight 42.5g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed Crydom Headquarters United States   Datasheet Product Datasheet Alternatives See B514F-2T, B612F-2T, B614F-2T or PSFH70-16 for higher rated equivalents
