Semiconductor Fuses

Trent I^2t Blade Style Semiconductor Fuse, 450 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4263 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4263 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 120000A??/s Nominal Current (RMS DC) 450 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 70W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 500 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4264 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4264 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 170000A^2/s Nominal Current (RMS DC) 500 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 72W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 550 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4265 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4265 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 170000A^2/s Nominal Current (RMS DC) 550 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 75W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 600 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4266 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4266 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 350000A^2/s Nominal Current (RMS DC) 600 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 75W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 700 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4267 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplIications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4267 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 465000A^2/s Nominal Current (RMS DC) 700 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 85W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 800 Amp, 690VAC, NH Style, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4268 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4267 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 725000A^2/s Nominal Current (RMS DC) 800 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 95W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t Blade Style Semiconductor Fuse, 900 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) with Indicator and Microswitch F170M4269 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Fuse Blown Indicator and Microswitch ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4267 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 850000A^2/s Nominal Current (RMS DC) 900 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 138 x 61 x 50mm Hole Centers 108mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 100W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

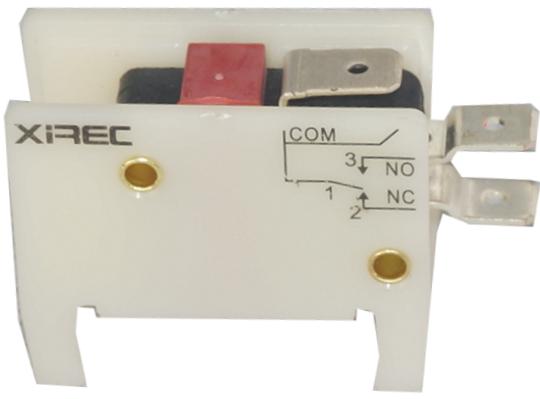

Trent F170H0069 Series Fuse Indicator for NH Fuses Features To Suit trent or Bussmann Nh Fuse with Indicator Applications Fault Monitoring/Detection Specification Trent Part Number F170H0069 Contact Rating 1 Amp 250VAC Operating Temperature Range -40°C / 125°C Unit Weight 30g Factory Pack Qty 10 Datasheet

Read more less

Trent 275BF Series 660V, 275 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/275 B097176, Bussmann 315FM ETI BS38UQ/83/315A/690V 004750640 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 275BF Fuse Type I²t aR Class Nominal Voltage 660VAC @ 50Hz I²t Rating 125000 A²/s Nominal Current (RMS + DC) 300 Amp Tested Breaking Capacity 200kA @ 660VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 43W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 125AF 690VAC 125 Amp, aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussmann 100FE, ETI BS17UQ/63/100A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 125AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 7500 A²/s I²t Rating (IP > 30IN) 9940 A²/s Nominal Current (RMS + DC) 125 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 28.5W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Vicfuse AFT50A60VDC, Automotive Fuse 50 Amp, 60VDC Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 200 Amp Quick Release with AFS Fuse Holder 60VDC Voltage Rating complying with UL248 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection Battery, Charger, or DC Motor I²t Protection Specification Vicfuse Part Number AFT50A60VDC Fuse Type I²t GR Class Nominal Voltage 60VDC I²t Rating (Pre Arcing) 6832 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 1kA @ 60VDC Dimensions 42 x 12 x 8.2mm Fuse Holder AFS Fuse Holder Mounting Style Panel Mount or fuse holder Operating Temperature Range -40°C / 125°C DC Breaking Capacity 1kA Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder AFS Fuse Holder

Read more less

Fuse Holder AFS-522N~RoHS, Fuse Holder for Blade Style 30mm Hole Centers, 60VDC, 200Amp Datasheet Product Datasheet
