Gigavac Sensata GV211CAX, Contactor SPST-NO, 150+ AMP, 12-900VDC, 24VDC Coil, 38cm Flying leads, IP67, IP69 Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV211CAX Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 24VDC Load Current 150+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 900VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 250g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

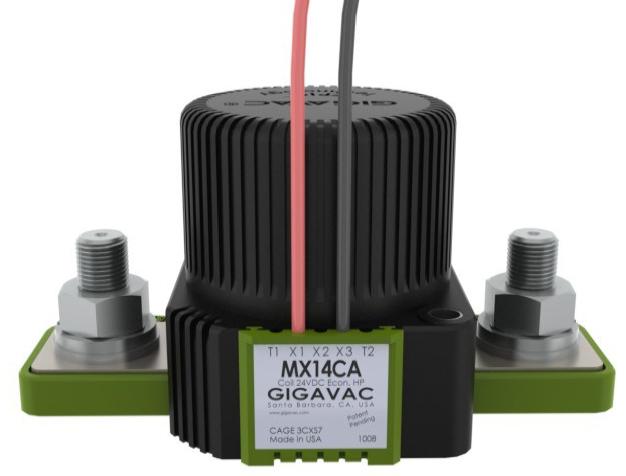

Gigavac MX14CAB, Contactor Military Grade SPST-NO, 400 AMP, 12-48VDC, 24VDC Coil, 38cm Flying leads, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K Milspec MIL-R-6106 ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number MX14CAB Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 400 Amp Mechanical Life @ 0 Amp 300,000 Cycles Dielectric at Sea Level (leakage <1mA) 1.5kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals N/A Special Feature Hermetically Sealed rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-48VDC Standards MIL-R-6106, IP67, IP69K, ROHS Termination Style M8 Unit Weight 500g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac GV142FAX, Contactor SPST-NO, 400+ AMP, 12-100VDC, 48VDC Coil, 38cm Flying leads, IP67, SIDE MOUNTING Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Giagavac Part Number GV142FAX Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 48VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature None Mounting Style Side Panel Mount (M5) Load Voltage Range 12 - 100VDC Standards CE, UL1604, IP67, SAEJ1171 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac GV142CAX, Contactor SPST-NO, 400+ AMP, 12-100VDC, 24VDC Coil, 38cm Flying leads, IP67, SIDE MOUNTING Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Giagavac Part Number GV142CAX Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 24VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature None Mounting Style Side Panel Mount (M5) Load Voltage Range 12 - 100VDC Standards CE, UL1604, IP67, SAEJ1171 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac GV142BAX, Contactor SPST-NO, 400+ AMP, 12-100VDC, 12VDC Coil, 38cm Flying leads, IP67, SIDE MOUNTING Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Giagavac Part Number GV142BAX Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 12VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature None Mounting Style Side Panel Mount (M5) Load Voltage Range 12 - 100VDC Standards CE, UL1604, IP67, SAEJ1171 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac GV122FAX, Contactor SPST-NO, 200+ AMP, 12-100VDC, 48VDC Coil, 38cm Flying leads, IP67, SIDE MOUNTING Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV122FAX Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 48VDC Load Current 200+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature None Mounting Style Side Panel Mount (M5) Load Voltage Range 12 - 100VDC Standards CE, UL1604, IP67, SAEJ1171 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac GV241MAB, Contactor SPST-NO, 400+ AMP, 100-800VDC, 12/24VDC PWM Rated Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67 Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV241MAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12/24VDC PWM Rated Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 100 - 800VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac GV141MAB, Contactor SPST-NO, 400+ AMP, 12-100VDC, 12/24VDC PWM Coil Features Hermetically Sealed UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Giagavac Part Number GV141MAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12/24VAC/DC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature PWM Rated Coil Mounting Style Panel Mount (M5) Load Voltage Range 12 - 100VDC Standards CE, UL1604, IP67, SAEJ1171 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac HX241BAB, Contactor SPST-NO 400+ Amp 1500VDC, 12VDC Coil, 38cm Flying leads, with SPST-NO Auxiliary Contact Continuous Duty, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number HX241BAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846, CE Termination Style M8 Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Gigavac Contactor HX21CBB, Contactor SPST-NO 350 AMP, 1500VDC, 24VDC Coil, 61cm Flying leads, with SPST-NO Auxiliary Contact Continuous Duty, IP67, IP69 Features Hermetically Sealed (Patented) UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Integrated safety cover Specification Gigavac Part Number HX21CBB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 4.3kV rms Control Input Terminals 61cm Flying Leads Aux Contact Terminals 61cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards UL1604, IP67, IP69 Termination Style M8 Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac Contactor HX21BBB, Contactor SPST-NO 350 AMP, 1500VDC, 12VDC Coil, 61cm Flying leads, with SPST-NO Auxiliary Contact Continuous Duty, IP67, IP69 Features Hermetically Sealed (Patented) UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Integrated safety cover Specification Gigavac Part Number HX21BBB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 4.3kV rms Control Input Terminals 61cm Flying Leads Aux Contact Terminals 61cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69 Termination Style M8 Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
