Sealed DC Contactors 150Amp to 450 Amp
-

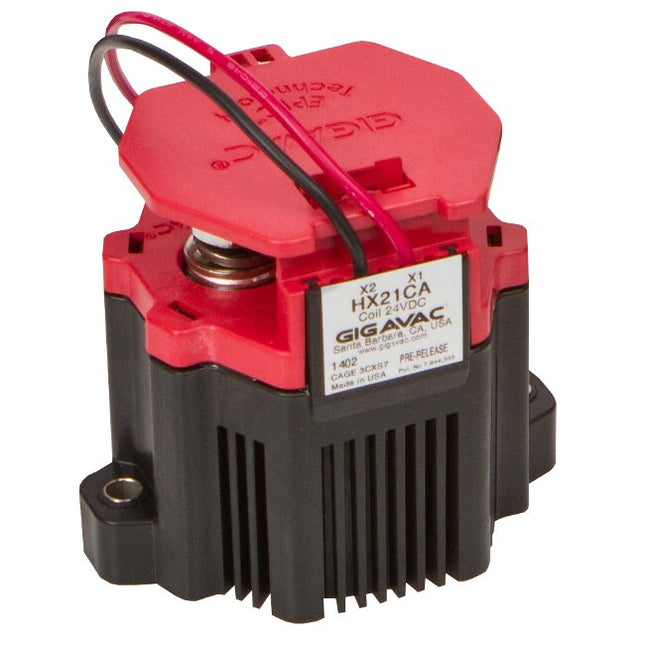

HX21CAB, Contactor SPST-NO 350 AMP, 1500VDC, 24VDC Coil, 38cm Flying leads, with SPST-NO Auxiliary Contact Continuous Duty, IP67, IP69
Gigavac Contactor HX21CAB, Contactor SPST-NO 350 AMP, 1500VDC, 24VDC Coil, 38cm Flying leads, with SPST-NO Auxiliary Contact Continuous Duty, IP67, IP69 Features Hermetically Sealed (Patented) UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 IP69 SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Integrated safety cover Specification Gigavac Part Number HX21CAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 4.3kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69 Termination Style M8 Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet
$343.14
$404.91 inclGST -
GV242CAB, Contactor SPST-NO, 400+ AMP, 100-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, IP67, Side Mounting
Gigavac GV242CAB, Contactor SPST-NO, 400+ AMP, 100-800VDC, 24VDC Coil Features Hermetically Sealed Side Mounting UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 - Temporary water immersion (30 Min) SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Specification Gigavac Part Number GV242CAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals 38cm Flying Leads Special Feature N/A Mounting Style Panel Mount (M5), Side Mounted Load Voltage Range 100 - 800VDC Standards CE, UL1604, IP67, SAEJ1171, UL508 Termination Style M8 Unit Weight 450g Factory Pack Qty 1 Datasheet Product Datasheet
$230.28
$271.73 inclGST -
DEVD200E48DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 48VDC Coil, SPST-NO Auxiliary Contact
Fastron Electronics DEVD200E48DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 48VDC Coil, SPST-NO Auxiliary Contact Features Hermetically Sealed with inert gas CE, CCC Approved Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Side mounted version available Specification Fastron Part Number DEVD200E48DA4 Main Contact Type SPST-NO (silver plated copper) Auxiliary Contact Type SPST-NO Coil Voltage 48VDC Load Current 200 Amp Mechanical Life @ 0 Amp 200,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals Lead Wire Connection Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, CCC Termination Style M8 Unit Weight 550g Factory Pack Qty 1 Datasheet Product Datasheet
$185.00
$218.30 inclGST -
DEVD200E12DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 12VDC Coil, SPST-NO Auxiliary Contact
Fastron Electronics DEVD200E12DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 12VDC Coil, SPST-NO Auxiliary Contact Features Hermetically Sealed with inert gas CE, CCC Approved Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Side mounted version available Specification Fastron Part Number DEVD200E12DA4 Main Contact Type SPST-NO (silver plated copper) Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 200 Amp Mechanical Life @ 0 Amp 200,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals Lead Wire Connection Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, CCC Termination Style M8 Unit Weight 550g Factory Pack Qty 1 Datasheet Product Datasheet
$165.00
$194.70 inclGST -
DEVD200E24DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 24VDC Coil, SPST-NO Auxiliary Contact
Fastron Electronics DEVD200E24DA4, Contactor SPST-NO Non Polar, 200 AMP, 12-800VDC, 24VDC Coil, SPST-NO Auxiliary Contact Features Hermetically Sealed with inert gas CE, CCC Approved Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Side mounted version available Specification Fastron Part Number DEVD200E24DA4 Main Contact Type SPST-NO (silver plated copper) Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 200 Amp Mechanical Life @ 0 Amp 200,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals Lead Wire Connection Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, CCC Termination Style M8 Unit Weight 550g Factory Pack Qty 1 Datasheet Product Datasheet
$165.00
$194.70 inclGST -

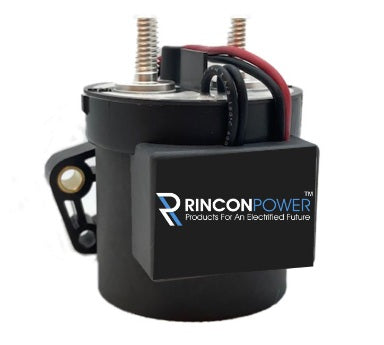

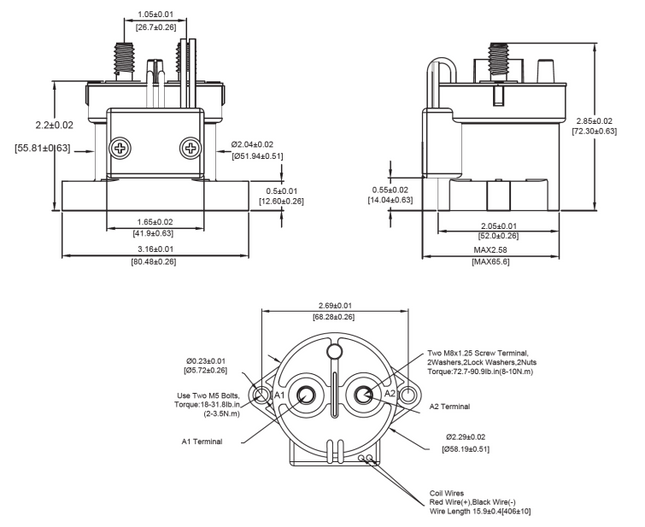

RECNC46B1QB, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 24VDC Coil (Dual Economised), SPST-NC Auxiliary Contact, Exceeds IP69
Rincon Power RECNC46B1QB, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 24VDC Coil (Dual Economised), SPST-NC Auxiliary Contact, Exceeds IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C Gas Filled Normally Closed Exceeds IP69 CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in dual Coil suppression for all DC Coils Flexible package for installation Specification Rincon Power Part Number RECNC46B1QB Main Contact Type SPST-NC Auxiliary Contact Type SPST-NC Coil Voltage 24VDC (Economised) Load Current 400 Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards IEC60947-4-1 compliant, Meets RoHS 2011/65/EU Termination Style M12 Unit Weight 430g Factory Pack Qty 24 Datasheet Product Datasheet
$449.00
$529.82 inclGST -
RECNC46B1RA, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 48VDC Coil (Dual Economised), SPST-NO Auxiliary Contact, Exceeds IP69
Rincon Power RECNC46B1RA, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 48VDC Coil (Dual Economised), SPST-NO Auxiliary Contact, Exceeds IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C Gas Filled Normally Closed Exceeds IP69 CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in dual Coil suppression for all DC Coils Flexible package for installation Specification Rincon Power Part Number RECNC46B1RA Main Contact Type SPST-NC Auxiliary Contact Type SPST-NO Coil Voltage 48VDC (Economised) Load Current 400 Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards IEC60947-4-1 compliant, Meets RoHS 2011/65/EU Termination Style M12 Unit Weight 430g Factory Pack Qty 24 Datasheet Product Datasheet
$449.00
$529.82 inclGST -
RECNC46B1PA, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 12VDC Coil (Dual Economised), SPST-NO Auxiliary Contact, Exceeds IP69
Rincon Power RECNC46B1PA, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 12VDC Coil (Dual Economised), SPST-NO Auxiliary Contact, Exceeds IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C Gas Filled Normally Closed Exceeds IP69 CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in dual Coil suppression for all DC Coils Flexible package for installation Specification Rincon Power Part Number RECNC46B1PA Main Contact Type SPST-NC Auxiliary Contact Type SPST-NO Coil Voltage 12VDC (Economised) Load Current 400 Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards IEC60947-4-1 compliant, Meets RoHS 2011/65/EU Termination Style M12 Unit Weight 430g Factory Pack Qty 24 Datasheet Product Datasheet
$449.00
$529.82 inclGST -
RECNC46B1QA, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 24VDC Coil (Dual Economised), SPST-NO Auxiliary Contact, Exceeds IP69
Rincon Power RECNC46B1Q, DC Contactor SPST-NC, 400 Amp Continuous, 1000VDC, 24VDC Coil (Dual Economised), SPST-NO Auxiliary Contact, Exceeds IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C Gas Filled Normally Closed Exceeds IP69 CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in dual Coil suppression for all DC Coils Flexible package for installation Specification Rincon Power Part Number RECNC46B1QA Main Contact Type SPST-NC Auxiliary Contact Type SPST-NO Coil Voltage 24VDC (Economised) Load Current 400 Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards IEC60947-4-1 compliant, Meets RoHS 2011/65/EU Termination Style M12 Unit Weight 430g Factory Pack Qty 24 Datasheet Product Datasheet
$449.00
$529.82 inclGST -
RXC15P9QA, Contactor SPST-NO, 225+ AMP, 12-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, Exceeds IP69
Rincon Power RXC15P9QA, Contactor SPST-NO, 225+ AMP, 12-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NO Auxiliary Contact, Exceeds IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48,72,120VDC, or 120,240VAC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Rincon Power Part Number GX11CAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 150+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1000VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet
$245.00
$289.10 inclGST -
HX241FAC, Contactor SPST-NO 400+ Amp 1500VDC, 48VDC Coil, 38cm Flying leads, with SPST-NC Auxiliary Contact Continuous Duty, IP67, IP69K
Gigavac HX241FAC, Contactor SPST-NO 400+ Amp 1500VDC, 48VDC Coil, 38cm Flying leads, with SPST-NC Auxiliary Contact Continuous Duty, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number HX241FAC Main Contact Type SPST-NO Auxiliary Contact Type SPST-NC Coil Voltage 48VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846, CE Termination Style M8 Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet
$399.00
$470.82 inclGST -
HX241BAC, Contactor SPST-NO 400+ Amp 1500VDC, 12VDC Coil, 38cm Flying leads, with SPST-NC Auxiliary Contact Continuous Duty, IP67, IP69K (Copy)
Gigavac HX241BAC, Contactor SPST-NO 400+ Amp 1500VDC, 12VDC Coil, 38cm Flying leads, with SPST-NC Auxiliary Contact Continuous Duty, IP67, IP69K (Copy) Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number HX241BAC Main Contact Type SPST-NO Auxiliary Contact Type SPST-NC Coil Voltage 12VDC Load Current 400+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 5.375kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 1500VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846, CE Termination Style M8 Unit Weight 440g Factory Pack Qty 1 Datasheet Product Datasheet
$399.00
$470.82 inclGST
