Schottky Diodes
-
SR803, Schottky Single Diode, Axial, DO-201AD, 8 Amp, 30VAC, Vf = 0.55V
Schottky Single Diode, Axial, DO-201AD, 8 Amp, 30VAC, Vf = 0.55V
$1.00
$1.18 inclGST -
MBR600100CT, Schottky Diode Rectifier Module, 600 Amp, 100V, NON Isolated BRA PACK
Sanrex MBR600100CT, Schottky Diode Rectifier Module, 600 Amp, 100V, NON Isolated BRA PACK Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification GeneSiC Part Number MBR600100CT Vrrm 100V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 400 Amp per device, 200 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 4.0 kA VF(to) 0.84V Tj(max) 150°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) R th(c-h) 0.28°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Datasheet Product datasheet
$149.00
$175.82 inclGST -

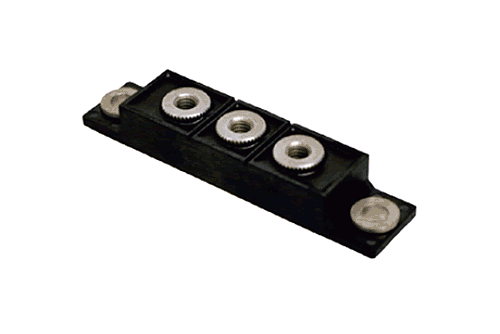

BKA400AA10, Schottky Diode Rectifier Module, 400 Amp, 100V, Isolated TO-244 Package
Sanrex BKA400AA10, Schottky Diode Rectifier Module, 400 Amp, 100V, Isolated TO-244 Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Sanrex Part Number BKA400AA10 Vrrm 100V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 400 Amp per device, 200 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 3.62 kA VF(to) 0.78 -> 0.93V Tj(max) 150°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) R th(c-h) 0.20°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Sanrex Headquarters Japan Datasheet Product datasheet
$128.00
$151.04 inclGST -
BKR400AB10, Schottky Diode Rectifier Module, 400 Amp, 100V, NON Isolated BRA PACK
Sanrex BKR400AB10, Schottky Diode Rectifier Module, 400 Amp, 100V, NON Isolated BRA PACK Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Sanrex Part Number BKR400AB10 Vrrm 100V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 400 Amp per device, 200 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 3.62 kA VF(to) 0.78 -> 0.93V Tj(max) 150°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) R th(c-h) 0.20°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Sanrex Headquarters Japan Datasheet Product datasheet
$107.00
$126.26 inclGST -
201CNQ050PbF, Schottky Diode Rectifier Module, 200 Amp, 50V, TO-244 Package
Vishay 201CNQ050PbF, Schottky Diode Rectifier Module, 200 Amp, 50V, TO-244 Package Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 2500V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Vishay Part Number 201CNQ050PbF Vrrm 50V Diode Configuration Schottky Diode Rectifier - Common Cathode IF(av) @ 125 Deg C (50% Duty) 200 Amp per device, 100 Amp per leg Package Size W:20mm L:93mm D:16.5mm Itsm 16 kA VF(to) 0.67 -> 0.81V Tj(max) 175°C rF Not Published Terminals 1/4"-20UNC Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.19°C/W R th(c-h) 0.10°C/W Weight 68g Mounting Torque 40 Nm (40 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Vishay Headquarters Germany Datasheet Product datasheet
$89.00
$105.02 inclGST
