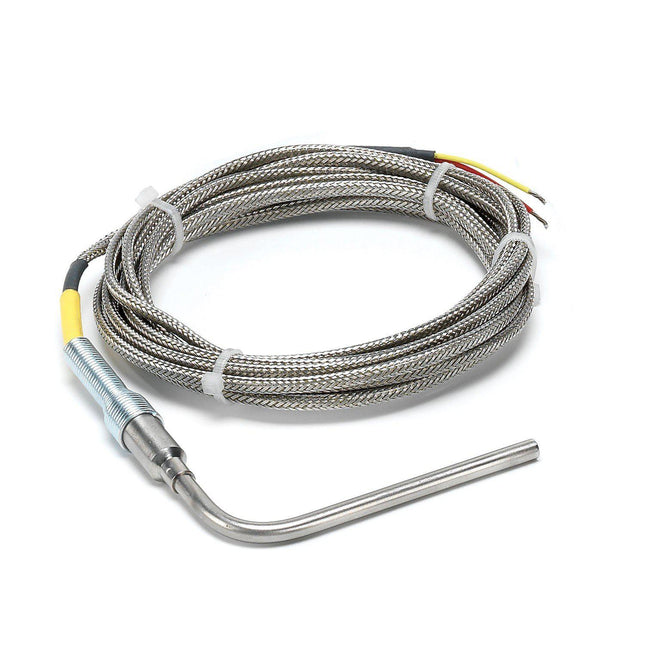

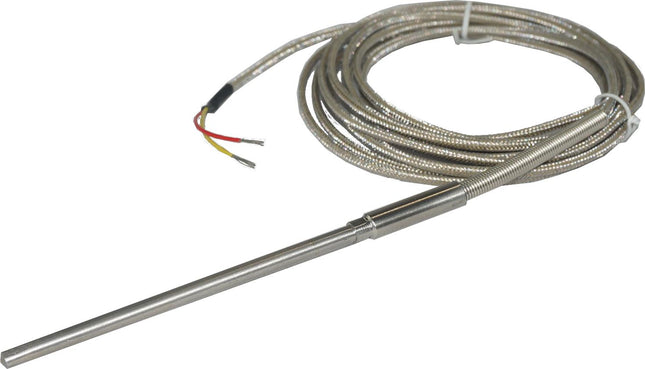

Fastron FRTD Series Pt100 Resistance Temperature Detector (RTD)Mineral Insulated 304 Stainless Steel Sheath, Braided SS/Teflon Screeend Tail, Various Dimensions Class A Accuracy CE, ANSI, ROHS Approved Teflon Screened SS Braided Cable (3M standard) Low Long Term Drift Rated for -50 to 350 Deg C Max (300 Deg C for L shaped style) Spring Cable Connection 3/5mm Sheath Diameter or custom 50-500mm Sheath Length or custom MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD Series Sensor Type Pt100 Resistance Temperature Detector No of Wires 2 Probe Length 50-100mm or custom Sheath Thickness 3/5mm or custom Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length 3 Meters (Standard) or custom Cable Type Teflon/Braided Stainless Steel Temperature Range -50 to 350 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 300-500g Factory Pack Qty 1 Datasheet RTD Standard Datasheet

Read more less

Fastron FRTD-Transmitter-0-400-420-24, Pt100 , 4-20mA Transmitter, 0 to 400 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-400-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class B Temperature Range 0 to 400 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1

Read more less

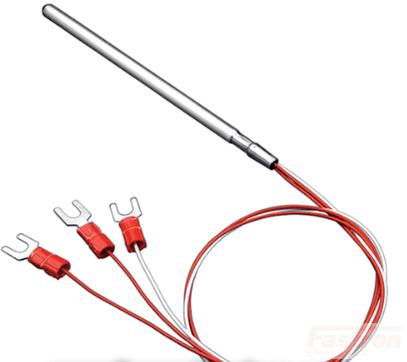

Fastron FRTD-6-250-500 Resistance Temperature Detectors (RTD's) Class B Accuracy Pt100 output Teflon Screened Cable Low Long Term Drift Rated for -50 to 350 Deg C Max 250 x 6mm MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-6-250-500 Sensor Type RTD - Resistance Temperature Detectors No of Wires 3 Shaft Length 250mm Shaft Thickness 6mm Accuracy Class B Cable length 500cm Cable Type Teflon/Teflon Terminal Head Type N/A Maximum Temperature -50 to 350 Deg C Special Feature N/A Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 300g Factory Pack Qty 1 Datasheet Datasheet

Read more less

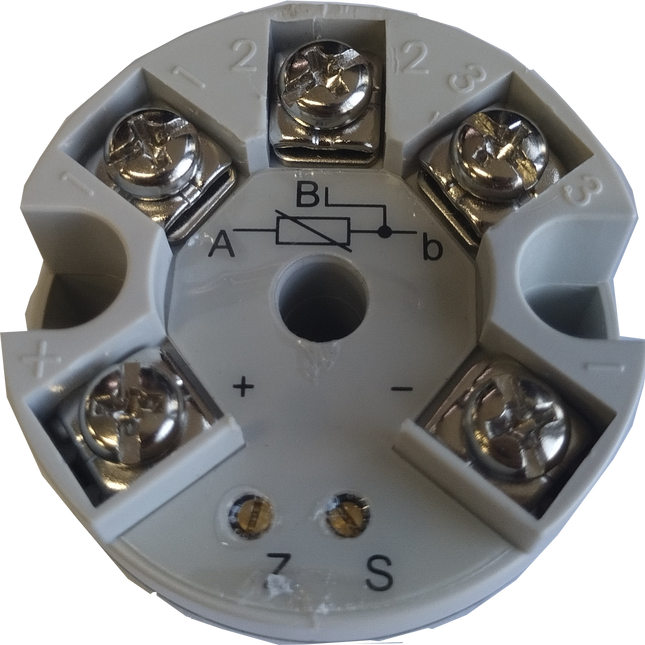

Fastron FRTD-Transmitter-0-200-420-24, Pt100 , 4-20mA Transmitter, 0 to 200 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-200-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class A Temperature Range 0 to 200 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1

Read more less

Fastron FRTD-6-3-750-2500 (ST6352) Resistance Temperature Detectors (RTD's) 500 Deg C, 6mm x 3500mm, 6mm x 50mm SS Tip, SS POT Seal potted with high temp epoxy resin, 100 Ohms @ 0 Deg C, Class A, 750mm screened PFA insulated cable Class A Accuracy Teflon Screened Cable Low Long Term Drift Rated for -50 to 350 Deg C Max Spring Cable Connection 3500 x 3mm (6 x 50mm Tip) MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-6-3-3500-750 (ST6352) Sensor Type RTD - Resistance Temperature Detectors No of Wires 4 Shaft Length 3500mm Shaft Thickness 3mm (6mm Tip) Accuracy Class A Cable length 750mm Cable Type Teflon/Screened/Teflon Temperature Range -50 to 500 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 1500g Factory Pack Qty 1 Datasheet ST6352

Read more less

Fastron FRTD-Transmitter-0-100-420-24, Pt100, 4-20mA Transmitter, 0 to 100 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-100-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class B Temperature Range 0 to 400 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1

Read more less

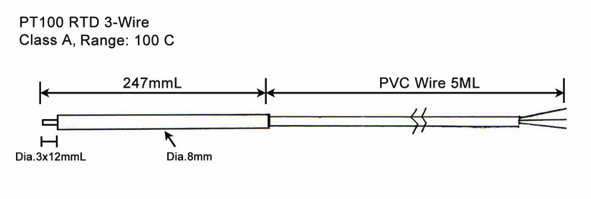

Fastron FRTD-8-247-3-12-5000PVC, Class A 247 x 8mm Probe, 12 x 3mm Tip, 304 Stainless Steel w/ 5000mm PVC Tails, -50 to 100 Deg C Class A Accuracy Teflon/Screen/Teflon Cable Low Long Term Drift Rated for -50 to 200 Deg C Max Spring Cable Connection 6 x 150mm MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-8-247-3-12-5000PVC Sensor Type RTD Pt100 Thermocouple No of Wires 3 Material 304 Stainless Steel Shaft Length 247mm (12mm Tip) Shaft Thickness 8mm (3mm Tip) Approvals CE, ANSI, ROHS Accuracy Class A Cable length 5 Meter Cable Type Teflon/Screen/Teflon Temperature Range -50 to 200 Deg C Special Feature High Temperature Epoxy Sealed Mounting Style Loose (BSP Fitting recommended) Weight 500g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

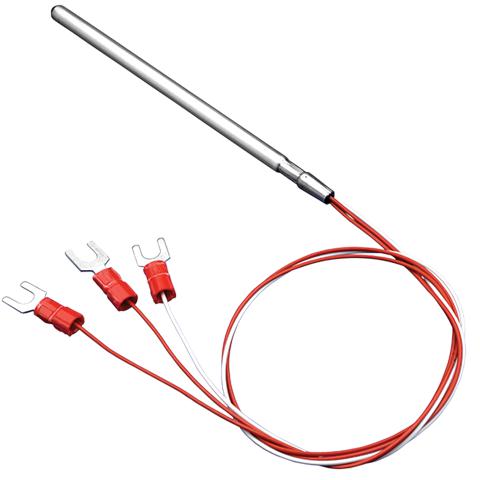

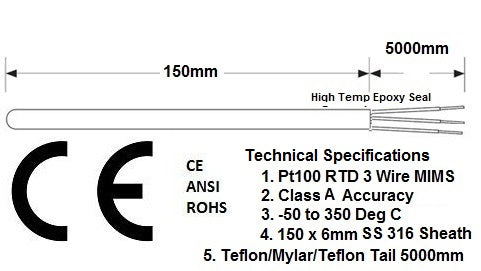

Fastron RTD, Class A 150 x 6mm Probe, 316 Stainless Steel, Bare High Temp Epoxy Seal, w/ 5000mm Teflon/Screen/Teflon, -50 to 200 Deg C Class A Accuracy Teflon/Screen/Teflon Cable Low Long Term Drift Rated for -50 to 200 Deg C Max Spring Cable Connection 6 x 150mm MIMS Recommended to use BSP Fitting for mounting Specification Fastron Part Number FRTD-6-150-5000-ES Sensor Type Type K Thermocouple No of Wires 2 Material 316 Stainless Steel Shaft Length 150mm Shaft Thickness 6mm Approvals CE, ANSI, ROHS Accuracy Class A Cable length 2 Meter Cable Type Teflon/Screen/Teflon Temperature Range -50 to 200 Deg C Special Feature High Temperature Epoxy Sealed Mounting Style Loose (BSP Fitting reccomended) Weight 900g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Fastron FRTD-6-3-2000-2000 Resistance Temperature Detectors (RTD's) Class A Accuracy CE, ANSI, ROHS Pt100 output 4 wire Teflon Cable Low Long Term Drift Rated for -50 to 350 Deg C Max 2000 x 3mm (6 x 50mm Tip) MIMS Specification Fastron Part Number FRTD-6-3-2000-2000 Sensor Type RTD - Resistance Temperature Detectors No of Wires 4 Shaft Length 2000mm Shaft Thickness 3mm (6mm Tip) Approvals CE, ANSI, ROHS Accuracy Class A Cable length 2 Meter Cable Type Teflon/Screened/Teflon Maximum Temperature -50 to 350 Deg C Special Feature Spring Cable Strain Relief Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 800g Factory Pack Qty 1 Datasheet Datasheet
