Rocker & Pushbutton Switches with Thermal Overload Protection
-
4430.0034 ABTWF160C0, 2 Pole Rocker Switch, Non Latched, 16 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed White
Schurter, 4430.0034 ABTWF160C0, 2 Pole Rocker Switch, Non Latched, 16 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed White Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 2-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4430.0034 ABTWF160C0 Functions 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 28VDC Nominal Current Range 16 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Illumination Transparent Green Insulation Resistance 500VDC Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 100g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$46.50
$54.87 inclGST -
4430.0012 ABTWF060C0, 2 Pole Rocker Switch, Non Latched, 6 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed White
Schurter, 4430.0012 ABTWF060C0, 2 Pole Rocker Switch, Non Latched, 6 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed White Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 2-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4430.0012 ABTWF060C0 Functions 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 28VDC Nominal Current Range 6 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Illumination Transparent Green Insulation Resistance 500VDC Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 100g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$35.00
$41.30 inclGST -

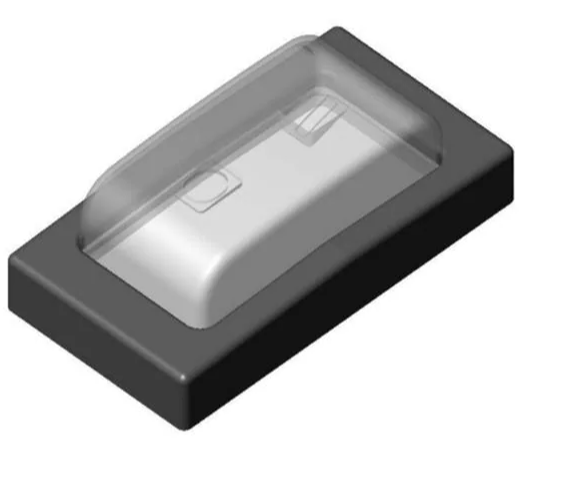

4430.1172, IP54 Cover for TA45 Pole Rocker Switch #AZM11
Schurter, 4430.1172, IP54 Cover for TA45 Pole Rocker Switch #AZM11 Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description IP54 Cover for TA45 Series Rocker Switches Specification Schurter Part Number 4430.1172 (AZM11) Functions IP54 Cover Material PVC,PA6 Datasheet Product Datasheet
$3.20
$3.78 inclGST -
4435.0259 TA35-C8F4M100C0, 1 Pole Rocker Switch, Non Latched, 10 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Green Illumination with White I/O
Schurter 4435.0259 TA35-C8F4M100C0, 1 Pole Rocker Switch, Non Latched, 10 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Green Illumination with White I/O Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 1-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4435.0259 TA35-C8F4M100C0 Functions 1 Pole Rocker Switch with 1 Bimetal Thermal Circuit Breaker, Illuminated Nominal Voltage 240VAC @ 50Hz or 60VDC Nominal Current Range 10 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Insulation Resistance 500VDC Illumination GREEN (12VDC) Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 10g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$38.75
$45.73 inclGST -
4435.0257 TA35-C8F4M050C0, 1 Pole Rocker Switch, Non Latched, 5 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Green 12VDC Illumination with White I/O
Schurter 4435.0257 TA35-C8F4M050C0, 1 Pole Rocker Switch, Non Latched, 5 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Green 12VDC Illumination with White I/O Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 1-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4435.0257 TA35-C8F4M050C0 Functions 1 Pole Rocker Switch with 1 Bimetal Thermal Circuit Breaker, Illuminated Nominal Voltage 240VAC @ 50Hz or 60VDC Nominal Current Range 5 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Insulation Resistance 500VDC Illumination GREEN (12VDC) Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 10g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$38.75
$45.73 inclGST -

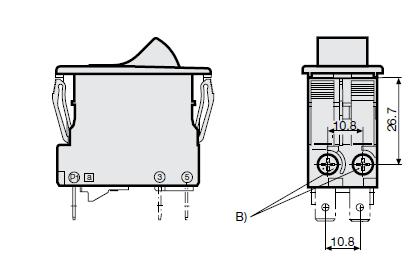

4430.2051 TA45-A624F200C0, 2 Pole Rocker Switch, Non Latched, 20 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed Green Transparent Illumination
Schurter, 4430.2051 TA45-A624F200C0, 2 Pole Rocker Switch, Non Latched, 20 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed Green Transparent Illumination Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 2-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4430.2050 TA45-A624F160C0 Functions 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 28VDC Nominal Current Range 20 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Illumination Transparent Green Insulation Resistance 500VDC Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 100g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$47.56
$56.12 inclGST -
4435.0347 TA35-CBDBF200C0, 2 Pole Rocker Switch, Non Latched, 20 AMP, 240VAC, 60VDC, Faston Connection, Black with White I/O Embossed
Schurter 4435.0347 TA35-CBDBF200C0, 2 Pole Rocker Switch, Non Latched, 20 AMP, 240VAC, 60VDC, Faston Connection, Black with White I/O Embossed Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch 2-pole Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4435.0347 TA35-CBDBF200C0 Functions 2 Pole Rocker Switch with 2 Bimetal Thermal Overload Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 60VDC Nominal Current Range 20 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Insulation Resistance 500VDC Illumination None Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 10g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$45.00
$53.10 inclGST -

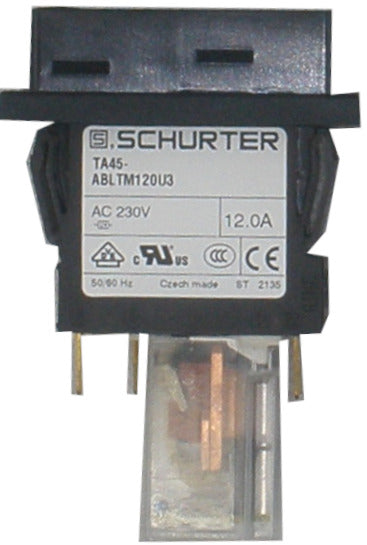

4430.2027 TA45-ABLTM120U3, 2 Pole Pushbutton Switch, Non Latched, 12 AMP, 240VAC, 1 Pole Thermal Overload Protection, Undervoltage Release, Faston Connection, No Illumination, IP40
Schurter, 4430.2027 TA45-ABLTM120U3, 2 Pole Pushbutton Switch, Non Latched, 12 AMP, 240VAC, 1 Pole Thermal Overload Protection, Undervoltage Release, Faston Connection, No Illumination, IP40 Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Pushbutton Switch Undervoltage release Thermal circuit breaker 2-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4430.2027 (TA45-ABLTM120U3) Functions 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker and Undervoltage release (230VAC) Nominal Voltage 240VAC @ 50Hz or 28VDC Nominal Current Range 12 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Insulation Resistance 500VDC Illumination Transparent Green Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 100g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$69.00
$81.42 inclGST -
4430.2031 TA45-A624F140C0-AZM10, 2 Pole Rocker Switch, Non Latched, 14 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed Green Transparent Illumination, Collar with Cover Narrow IP54
Schurter, 4430.2031 TA45-A624F140C0-AZM10, 2 Pole Rocker Switch, Non Latched, 14 AMP, 240VAC, 1 Pole Thermal Overload Protection, Screw Connection, Embossed Green Transparent Illumination, Collar with Cover Narrow IP54 Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 2-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4430.2031 (TA45-A624F140C0-AZM10) Functions 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 28VDC Nominal Current Range 14 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Insulation Resistance 500VDC Illumination Transparent Green Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 100g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$75.00
$88.50 inclGST -
4430.2450 TA45-A126F050E3-AZM11, 2 Pole Rocker Switch, 5 AMP, 240VAC, 1 Pole Thermal Overload Protection, 230VAC Undervoltage Release, Quick Connection, Embossed Orange Transparent Illumination, Collar IP54
Schurter, TA45-A126F050E3-AZM11, 2 Pole Rocker Switch, 5 AMP, 240VAC, 1 Pole Thermal Overload Protection, 230VAC Undervoltage Release, Quick Connection, Embossed Orange Transparent Illumination, Collar IP54 Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 2-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4430.2031 (TA45-A126F050E3-AZM11) Functions 2 Pole Rocker Switch with 1 Pole Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 28VDC (230VAC Undervoltage Release) Nominal Current Range 5 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Insulation Resistance 500VDC Illumination Transparent Green Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 100g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$75.00
$88.50 inclGST -

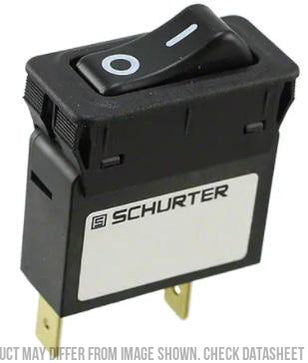

4435.0254 TA35-CFTBL100C0, 1 Pole Rocker Switch, Non Latched, 10 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Black with White I/O
Schurter 4435.0254 TA35-CFTBL100C0, 1 Pole Rocker Switch, Non Latched, 10 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Black with White I/O Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 1-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4435.0254 TA35-CFTBL100C0 Functions 1 Pole Rocker Switch with Bimetal Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 60VDC Nominal Current Range 10 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Insulation Resistance 500VDC Illumination None Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 60g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$26.50
$31.27 inclGST -
4435.0478 TA35-CFTBL160C0, 1 Pole Rocker Switch, Non Latched, 16 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Black with White I/O
Schurter 4435.0478 TA35-CFTBL160C0, 1 Pole Rocker Switch, Non Latched, 16 AMP, 240VAC, 60VDC with Thermal Overload Protection, Faston Connection, Black with White I/O Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Rocker Switch Thermal circuit breaker 1-pole - Power tools Manual ON/OFF type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 1kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 5000 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4435.0254 TA35-CFTBL160C0 Functions 1 Pole Rocker Switch with Bimetal Thermal Circuit Breaker Nominal Voltage 240VAC @ 50Hz or 60VDC Nominal Current Range 16 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Insulation Resistance 500VDC Illumination None Dielectric Strength 1.5kV (50Hz) Short Circuit Current 1kA Approvals UL, CSA Standards IEC 6094 Weight 10g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet
$26.35
$31.09 inclGST
