Recommended products

Fastron FPC1-63-31C-230VAC, 4 Pole 3 x SPST NO, Configuration_SPST (1 x NC) Modular Contactor 440VAC 63 Amp 50/60Hz, 230VAC Coil Voltage, Hum Free Features 63 Amp (rms) @ 440VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-63-31C-230VAC Switching Type 3 x SPST NO, 1 x SPST NO Approvals CE Coil Voltage 230VAC 50/60Hz Load Current (RMS/DC) 63 Amp (rms) @ 440VAC Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet Auxiliary Contacts Selection Guide

Read more less

Trent FGM6DC-3PL-320 250A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 20kA 250 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 20kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-320 250A Functions DC MCCB Nominal Voltage 1500VDC Nominal Current Range 250 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 20kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 3.3kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

Fastron FPC1-25-20C-24VAC/DC, Two Pole 2 x SPST NO Modular Contactor 230VAC 25 Amp, 24VAC/DC 50/60Hz Coil Voltage, Hum Free Features 25 Amp (rms) @ 230VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-25-20C-24VAC/DC Switching Type 2 x SPST NO Approvals CE Coil Voltage 230VAC 50/60Hz Load Rating 25 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 24VAC/DC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

TSWNC-125, 125 Deg C, Normally Closed Thermal Switch 10 Deg C Hysteresis, +/-2% Tolerance, Wired, KSD9700

Read more less

Infineon BSM50GB120DLC, IGBT Dual, 50Amp, 1200V IGBT Dual Module Features IGBT for Low Frequency Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 34mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number BSM50GB120DLC Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 80 Deg C 50 Amp Package Size W:34mm L:94mm D:30mm V(isol) 2.5 kV Vf @ 25 Deg C 1.8 - 2.3V Tj(max) 150°C Td(on) @ 25 Deg C 0.05uS Td(off) @ 25 Deg C 0.3uS I(ces) @ 25 Deg C 500uA Rcc 1.0mOhm Terminals M5 Screw Hole Centres 80mm(M6) Gate Terminals Spade (A 2.8 - 0.5mm) R th(j-c) 0.3°C/W R th(c-h) 0.3°C/W Weight 250g Mounting Torque 5 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

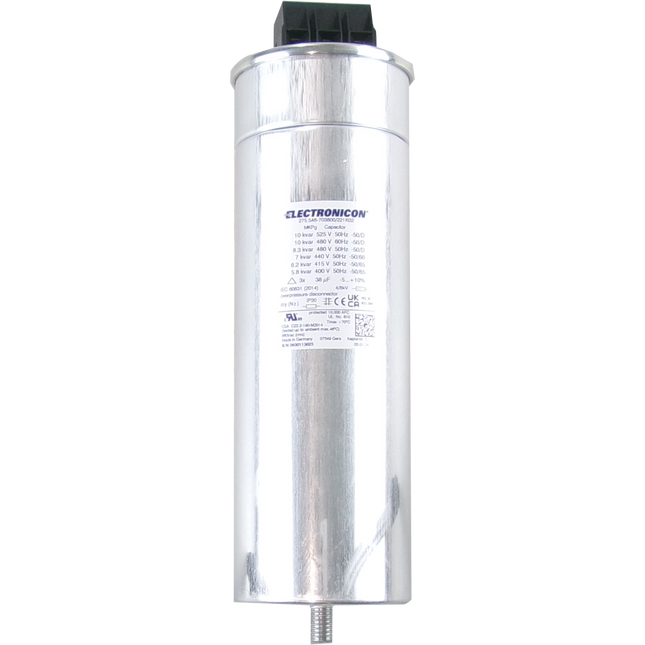

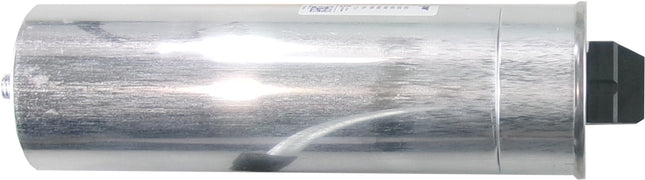

Electronicon 275.546-703800/221K02, 10kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 75 x 230(+32 +5/-2)mm Gas Filled, 3 x 38.5uF Characteristics and utility 10kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.546-703800/221K02 Technology Gas Filled, Low Loss, Self Healing Dimensions 75 x 230(+32)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 10 Kvar Capacitance 3 x 38.5uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 11 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 1.6kg Factory Pack Quantity 30   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Meanwell APV-12-12, 12VDC 1A 12W Constant Voltage Universal Power Supply with Flying Leads, Used as LED Driver Supply Voltage: 120-370VDC or 85-264VAC Output Voltage: 12V Output Current: 1A Power Rating: 12W Connection: flying leads Short Circuit, Overload, Overvoltage Protected IP67 for internal wall mounting Datasheet Product Datasheet

Read more less

Fastron Electronics AM5S-R-VEH-D-R1, 48x24mm Frequncy/RPM Counter 0.1-100kHz, 12-24VAC/DC Pulse Input, 22-60VDC supply Large 5 Digit 0.4 Inch LED Display 250mS Response Time PC 94 UL V0 Input signals can be NPN, PNP, or 24VDC Pulses depending on the model used Each unit needs just 48 x 24mm Panel Space 86.2mm Depth Specification Fastron Electronics Part Number AM5S-R-VEH-D-R1 Input 10.8 - 24VDC Measurement Range 0.1Hz - 100kHz Operating Temperature 0 - 60°C Load Voltage 22-60VAC/DC Termination Style Screw Mounting Style 48 x 24mm Panel Mount Case Material PC - UL 94 V0 Safety Approvals CE Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron FRTD-Transmitter-0-100-420-24, Pt100, 4-20mA Transmitter, 0 to 100 Deg C, 24VDC Supply Class A Accuracy Steel Insulated Cable Low Long Term Drift Rated for 0 to 220 Deg C Max Spring Cable Connection 60mm Jaw Clip Specification Fastron Part Number FRTD-Transmitter-0-100-420-24 Sensor Type Pt100 to 4-20mA Transmitter No of Wires 3 Shaft Length N/A Shaft Thickness N/A Accuracy Class B Temperature Range 0 to 400 Deg C Span/ Zero Adjustment YES Weight 50g Factory Pack Qty 1

Read more less

Fastron FGIR-32-C-230VAC, One Pole 1 x SPDT CO Bistable Relay with Manual Override 240VAC 32 Amp, 230VAC 50/60Hz Control Voltage Features 32 Amp (rms) @ 240VAC DIN Rail Mount 1 x SPDT CO Changeover Contact Slim package CCC Compliant IP20 Specification Fastron Part Number FGIR-32-C-230VAC Switching Type 1 x SPDT CO Approvals CE Coil Voltage 230VAC 50/60Hz Load Rating 32 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 240VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Relay Datasheet

Read more less

RCS-1800-2000 Three-Phase Flexible Current Sensor System (Rogowski Coils): The RCS-1800 three-phase flexible rope CT from Magnelab converts AC input current of up to 5000 amperes to an AC output of 0.333 volt. A 9 to 36 VDC power supply is required to operate these coils. The RCS-1800 comes with an integrator which includes flexible strain relief cables. Included is an 12 inch circumference rope CT with Integrator, and 8 feet of twisted pair (600V) output leads. Magnelab Coils come with 10 year warranty Suitable Alternative to Solar Edge CTRC-07500-2000 Specification Magnelab Part Number RCS-1800-2000 Function AC Current Measurement Nominal Measurement Current (Ipn) 2000 Amp RMS Measurement Range 10% - 130% if Ipn Frequency Measuring Range 50-1500Hz (15th Harmonic) Operating Voltage 9 - 36VDC Accuracy 1% from 25 to 2000 Amp Phase Angle < 0.5 Degrees Coil Diameter (⌀) 6 Inch Coil Circumference 18 Inch Integrator to Coil Cable 8 Feet Shielded Maximum Voltage 600V (on bare conductor) Operating Temperature -15°C to 65°C Storage Temperature -45°C to 80°C Power Consumption < 2VA Overload 20,000 Amp (continuous) Termination Style Screw Weight 1200g Certification CE Factory Pack Qty 1 Certifications UL Recognized E96927 to IEEE C57.13, CAN/CSA 60044-1 Meets UL STD 61010-1, CAN/CSA C22.2 No. 61010 CE ROHS Datasheet Product Datasheet Application Notes RCS/RCT Series Installation Guide

Read more less

Schurter 4301.6004, IEC Appliance Inlet C14/M with 1 Stage EMC (RFI), Line Switch 2 Pole, Line Switch 2 Pole KFA Series, 6 Amp Features Panel Mount : Screw-on mounting from front side 3 Functions : Appliance Inlet Protection class I, Line Switch 2-pole, EMC Filter 1 Stage Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement 2-stage line filter with increased attenuation With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number 4301.6004 (KFA Series) Rated Voltage 250V Rated Current 6A Filter Stages 1 Stage Standard Attenuation Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder N/A Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 66g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less
