Recommended products

Iskra Doo KNL22-00-24VAC Contactor Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp UL, CSA Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KNL22-00-24VAC Functions 3 Pole Contactor Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 22 Amp Continuous @ 55 Deg C Overload Capability 304(10s), 320(5s), 350(1s), 900(0.001s) Auxiliary Contacts 3 x NO Trip Delay Time 2-10ms Electrical Life 200,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 10.000,000 Ops Control Voltage 24VAC Power Dissipation 2.3W each pole Approvals UL, CSA Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 200g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet Contactor Catalogue Iskra Contactor Catalogue

Read more less

Iskra Doo KNK3053 40 KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 116 x 285mm Dry Type, 3 x 154uF Characteristics and utility 40kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 40 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 116 x 285mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 40 Kvar Capacitance 3 x 154uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 44 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Feed Through Terminal Unit Weight 3.6kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less

LEM LA 55-P/SP1 Series Closed Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 200kHz Closed loop transducer using Hall effect Compact and versatile PCB Mount Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LA55-P Technology Closed Loop Hall Effect Aperture 13.5 x 10mm ROHS Yes Supply Voltage +/-12..15 VDC Bipolar, Isolated Load Current (RMS + DC) 50 Amp Measurement Range +/-70 Amp Output 25 mA Isolation 2.5 kV Bandwidth DC-200 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 0.65% Termination Style Through Hole PCB Unit Weight 18g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Westcode-IXYS-Littlefuse DMA150YC1600NA, 3 Phase Half Wave Diode Bridge, Common Cathode, 1600V, 150Amp, SOT-227B Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Westcode-IXYS-Littlefuse Part Number DMA150YC1600NA AC Line voltage 533V Device Configuration Three Phase Half Wave Diode Rectifier Bridge DC Output @ 95 Deg C 150 Amp Package Size W:38mm L:25mm D:12mm (SOT-227B) Itsm 800 A VF(to) 0.82V Tj(max) 150°C rF 6.3mΩ Terminals M4 (1.5Nm) Hole Centres 32mm (M4) Gate Terminals N/A R th(j-c) 0.6°C/W R th(c-h) 0.1°C/W Weight 30g Isolation 3kV Factory Pack Qty 10 Certification UL Listed IXYS Headquarters United States Datasheet Product Datasheet Alternatives See Powersem PSYD120/16 for for alternative with larger package

Read more less

LEM AI-P1A M1 Accessory Kit, Multi Stacking Connector for AI-PMUL Integrator, LEM Part# 90.T8.98.000.0 Application Cross Power Plug-in: side contacts to stack up to 3 Integrator modules and use only one power supply. Note: Included in 3pcs coil and integrator package Application Notes User Notice 1) The Rogowski coil can measure any primary current as there is no saturation effect. 2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts) 3) Frequency bandwidth and phase shift modelling schematic can be provided on request. 4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer) 5) Considering a primary conductor of at least ? 15 mm, perpendicular and in contact with the Rogowski coil. 6) Considering an external conductor of at least ? 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.

Read more less

Fastron F157FT 1PL 12A 240VAC + F157F-1Z-C3, Relay, 1 x SPDT 12 Amp Form C, 250VAC/30VDC Load, 230VAC Coil Features 1 x 12 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT-1PL 12A 240VAC + F157F-1Z-C3 Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 230VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 60g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

Crydom CWD2450P, Solid State Relay, Single Phase 3-32VDC Control, 50A, 24-280VAC Load. High surge w/Varistor Features Ratings from 25A to 125 Amp @ 24-280VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number CWD2450P Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 50 Amp (rms) Surge Capability 850 Amp (peak) Special Feature LED Status Indicator, High Surge, Internal Over Voltage Protection Mounting Style Panel Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent See CWD4890H for stocked equivalent (no overvoltage protection). App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Schurter 0090.0025 ASO 10.3x38mm GpV Fast Blow Solar Fuse 30Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0030 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 2679 kA²/s Nominal Current (DC) 30 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 3.92W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders

Read more less

Schurter 0090.0010 ASO 10.3x38mm GpV Fast Blow Solar Fuse 10Amp, 1000VDC, 20kA, IEC 61730-2 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 20 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses Specification Schurter Part Number 0090.0010 Fuse Type I²t GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 401 kA²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 20kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.76W DC Breaking Capacity 20kA Unit Weight 8g Factory Pack Qty 10 Datasheet Product Datasheet Fuse Holder FSO Fuse Holders

Read more less

Fastron FTH12053ZD3-P, Solid State Relay, 3 Phase 4-32VDC Control, 120A, 70-530VAC Load w/ Varistors 3 Phase Solid State Relays, with IP20 Cover Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Includes IP20 Cover Specification Fastron Part Number FTH12053ZD3-P Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 120 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator + Varistors for Overvoltage Protection, with IP20 Cover Mounting Style Panel Mount Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet Product Datasheet Equivalent Parts Contact Us for Possible Replacement

Read more less

Schottky Single Diode, Axial, DO-201AD, 8 Amp, 30VAC, Vf = 0.55V

Read more less

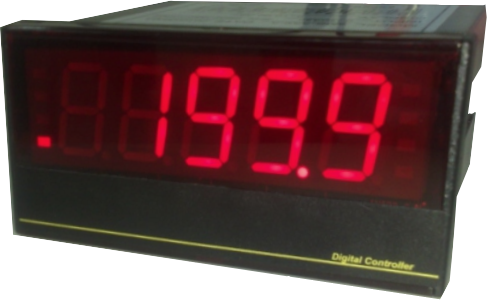

Fastron Electronics AMB-D-V6-D-N, 96x48mm DC Voltmeter, Panel Mount, 0-300V DC Input, 24-60VDC supply, Previously AMB-D-V6-24VDC, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-D-V6-D-N Conditioner Output N/A Input 300VDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less
