TGB2-ES642G, 60MM Emergency Stop Button, 1 Pos, Twist Release, 1 x NC, IEC60947-5-1 Emergency Stop Buttons are used to Isolate Control Power. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout 30mm,40mm,60mm Button Sizes Twist or Key Release Types Standards : IP20 IEC60947-5-1 CE Specification TRENT Part Number TGB2-ES642G Functions 1 Pole Emergency Stop 60MM Switch Type Twist Release 1 x NC Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 80g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

Fastron GDZ02-801200ZD3, Solid State Relay, DC 4-32VDC control, 80A, 1200VDC Load Features Ratings from 2A to 120 Amp @ 1-1200VDC IGBT output for 1200VDC switching Direct bond copper substrate Direct power lead frame Spec Fastron Part Number GDZ02-801200ZD3 Switching Type DC Load Control Voltage 4-32VDC Load Current  80 Amp DC Surge Capability (10ms) 200 Amp DC Special Feature LED Indicator Mounting Style Panel Mount Load Voltage Range 1-1200VDC Termination Style Screw Unit Weight 100g Factory Pack Qty 5   Datasheet Product Datasheet App Notes Why Use SSR's? The inside story  Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Powersem PSB82T/18 Single Phase Diode Rectifier Bridge, Replaces Semikron SKB60/18 SKB72/18, IXYS VBO72-08NO7 VBO72-12NO7 VBO72-18NO7 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB82T/18 AC Line voltage 600V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 100 Deg C 72 Amp Package Size W:72mm L:42mm D:30mm Itsm 750 A VF(to) 0.8V Tj(max) 125°C rF 5mΩ Terminals M5 (1.5Nm) Hole Centres 60mm (M5) Gate Terminals N/A R th(j-c) 1.1°C/W R th(c-h) 0.52°C/W Weight 160g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet Alternatives See PSD82/16 for lower rated equivalent

Read more less

LEM HTA 400-S Series Open Loop AC/DC Hall Effect Sensor Features Bandwidth DC to 50kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, 100 to 1000 A in one package. Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number HTA 400-S Technology Open Loop Hall Effect Aperture ø32mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 400 Amp Measurement Range +/-1000 Amp Output +/-4 V Isolation 4 kV Bandwidth DC-50 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 80°C Accuracy 1% Termination Style Molex 5045-04A Unit Weight 230g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Eastron Europe SDM120CTModbus-MID, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1/Class B, 5 Amp CT Connect, w/ 2 x pulse outputs and RS485 Comms, MID Approved 5 Amp CT Connect 1 x Configurable Pule Output (via Modbus) 1 x Fixed Pulse Output (1000imp/kwh) RS 485 communication up to 38,400 bit/s as standard Optional Mbus Model available True RMS values of currents and voltages   The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.   Features : Accuracy Class 1 Measurement of Active and Reactive Power Modbus RTU communication up to 38,400 bit/s communication Pulse output as standard Graphic LCD with illumination Specification Eastron Europe Part Number SDM120CTModbus-MID Functions Single Phase Energy Meter Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA Nominal Measurement Range 230V L-L 230V L-N, 45 Amp Maximum Measurement Range 276V L-L 230V L-N, 45 Amp Nominal Current Input 5 Amp CT Pulse Output 1 x 1000imp/kwh, 1 x Configurable 60/100(default)/200ms Primary CT Ratio 5,10,20,30,40,50,75,100,125,150,200,250,300,400,600 Amp only Accuracy Class 1/ Class B (I,U,F,kW,kWh) Class 2 (Reactive) Mounting Din Rail Real Time Clock 1min/month (30ppm) Internal Memory N/A Dimensions 24mm x 100mm x 66mm (1 module wide) Isolation 4kV RS485 2400-38400 b/s Weight 150g Certification EN 61010-1 Installation Category III Factory Pack Qty 1 Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing Enclosure Size DIN 42880 6 Modules Operating Temperature -20 →+70 °C   Datasheet Product Datasheet User Manual Modbus Protocol Setup Video Modbus Utility EEM Meter Setting Software Utility

Read more less

Fastron FES2151-FD-V10, Solid Core AC Current Transducer, Multirange 0-100A,150A, 200A, Self Powered, Average RMS 0-10V Output. 1% Accuracy (FCS2151-SD-V10) Compact and versatile current switches for detection of AC Currents, Multirange 0-10Amp, 0-20Amp, 0-50Amp via jumper, 0-10V True RMS output Features Average RMS 0-10V output Multirange selector Panel mounting Eliminates insertion loss Isolated plastic case recognised according to UL94-V0 Advantages Highly accurate low current measurement down to 1Amp High isolation between primary and secondary circuits Easy installation Applications Fault Detection Motor or Fan Protection Application Domain Energy and Automation Specification Fastron Part Number FES2151-FD-V10 Technology Solid Core Solid Core AC Current Transducer Range 0-100Amp, 0-150Amp, 0-200Amp via jumper Supply Voltage Self Powered Load Current (RMS) 1Amp to 200 Amp Output 0-10V Average RMS Isolation 2kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style Panel Mount Operating Temperature Range -25°C / 70°C Accuracy 1% Termination Style Screw Terminals Unit Weight 200g Certifications UL E320368, CE, Rohs compliant   Datasheet Product Datasheet Installation Guide

Read more less

Crydom A2450EG, Solid State Relay, Single Phase 18-36VAC Control, 50A, 24-280VAC Load w/status LED Features • Ratings from 25A to 125 Amp @ 24-280 VAC • SCR output for heavy industrial loads • Zero voltage or instantaneous turn-on outputs • UL/CSA/VDE Approved, CE Compliant to EN60950-1 • Improved SEMS screw and washer • Redesigned housing with anti-rotation barriers • AC & DC control types • Direct bond copper substrate • EMC compliant to Level 3 • Direct power lead frame • Epoxy free design Spec Crydom Part Number A2450EG Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 24VAC (18 - 36VAC) Load Current 50 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 90 - 280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron Electronics SCT-F16-150-5A, 150/5 Amp Measurement Split Core Current Transformer, 16mm Aperture Features Quick Release Split Core System Cable Mount 5 Amp Output Self Powered Rated System Voltage 0.60/3kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number SCT-F16-150-5A Technology Split Core AC Current Transformer Ratio 150/5 Amp Aperture Size ø 15 mm VA Rating N/A Accuracy Class Class 1 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 100g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide

Read more less

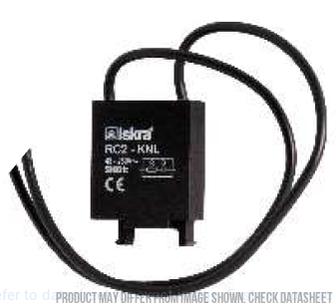

RC3-K0x 250-380VAC, RC Snubber Network 250-380VAC, For KNL or other Contactors These snubber neworks are suitable for transient supression in small contactors, bridge rectifers, or solid state relays switching AC. Easily connected or lugged to solid stage relay or power module terminals. See EMC filters, and Metal Oxide Varistors sections for additional supression components. As and added bonus, these Snubber Networks Improve the Power Factor of switched loads. Datasheet Datasheet

Read more less

Wolfracoat C 400gm Lubricating Paste for CNC Machines, Gears, Motors, Modules, Capsules or Stud Mount Semiconductors Features Electrcially and thermally and electrically conductive copper based lubricant. Up to 1.2kg tubes available on request. Datasheet Datasheet MSDS Application Notes Correct Application of Thermal Paste

Read more less

Iskra Doo RI61J C 16-10kA, 1 Pole DC Miniature Circuit Breaker Disconnect Switch C Curve 16 Amp, 220VDC, 10kA Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Iskra Doo Part Number RI61J C16 Functions 1 Pole MCB - C Curve Nominal Voltage 220VDC Nominal Current Range 16 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 55 Deg C Rated Operations 10,000 Ops Surge Current 220V Short Circuit Current 10kA Approvals VDE, GOST-R Standards IEC/EN 60898,60947-1/2, IP20 (IP40 Installed) IEC 61008 ; Weight 130g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh CT 200/5 Class 0.5 2.5VA 50/21 (30) Series Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Safely Monitor Current with a 200/5 Safety should always be of paramount importance when designing and installing electrical systems. An appropriate current transformer, such as one rated at 200/5, may be an essential purchase when you need to easily transform a current from a very high voltage to a lower one as needed. In some cases, current transformers may connect with monitoring sensors to provide a safer operational posture and a clear idea of how a given electrical system performs. At Fastron, we've simplified the often complex buying process for items such as these, and we've created an online storefront that keeps you from rummaging through endless numbers of bins at the local electronics shop. Consider what you can accomplish with this product and the features of the 200/5 transformers we supply. Fast Facts About Our 200/5 Options With so many options on the market, it is important to know you're about to purchase the right product for the task you have in mind. What should you know about this particular current transformer? A few quick facts to consider: Each unit is relatively low cost considering its function, yet built to meet exacting standards. Each unit features a design allowing it to support a primary current of 200 amps with a secondary current of 5 amps. Be mindful of each component's minimum and maximum operational temperatures. According to the manufacturer datasheet, the 200/5 current transformer has a minimum rated temperature of -30C and a maximum of 85C. Our units are compatible with standard DIN rail technology and include a mounting clip to make the installation process quick and simple. Quickly and accurately feed current information to an ammeter with this unit. What Sets Fastron Apart Regarding a 200/5? When you're certain you've found the appropriate product, why should you commit to purchasing from Fastron? As an experienced distributor of electronics components, we're well-positioned to provide a more valuable service. Here's how. We've worked hard to identify the most reliable suppliers capable of meeting the exacting standards necessary for safe operations in electrical contexts. We have additional equipment available to support diverse goals in the fields of energy monitoring and the control of alternating current power systems. Whether you have unique needs in the oil/gas industry or specific industrial and electrical applications, Fastron can supply your needs. We don't leave customers in the dark on their order status. Instead, we provide quick shipping and prompt communication at every step of the transaction for an ideal procurement experience. About Fastron Backed up by more than four decades of experience in a wide range of electronics, and supporting a broad range of industries, is an independent supplier based in Melbourne. Constantly striving to source the best components while supporting long-term sustainability goals, Fastron is a cost-effective provider of not only 200/5 transformers, but many other energy monitoring and management products as well. (Learn more) about our business today, or Contact Us for Possible Replacement with questions or for product selection assistance. Specification Rishabh Part Number CT 200/5 Class 0.5 2.5VA 50/21 (30) Technology AC Current Transformer Ratio 200/5 Aperture Size ⌀ 21mm or 20x10mm Busbar VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet
