Recommended products

Fastron Electronics SCT-F24-25, 0.333v, 25Amp Measurement, Class 1 Split Core CT's Features Quick Release Split Core System Cable Mount 0.333v Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F24-25 Technology Split Core AC Current Transformer Ratio 25/0.333v Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0.333v (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 25Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Fastron Electronics SCT-F16-60-5A-CL2, 60/5 Amp Measurement, Class 2 Split Core CT's Features Quick Release Split Core System Cable Mount 5 Amp Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F16-60-5A-CL2 Technology Split Core AC Current Transformer Ratio 60/5 Amp Aperture Size ø 16 mm VA Rating N/A Accuracy Class Class 2 Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 60Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Semikron SKKT42/18E, Dual Thyristor Module, 42 Amp, 1800V, With Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT42/18E Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 42 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

F115 Series Panel Mount Single Phase Solid State Contactors, 70-480VAC Switching, 90-280VAC or 4-32VDC Control Contactor Style Modules Ratings from 50A to 350 Amp @ 70-533 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F115 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 50 - 200 Amp (rms) @ 50 Deg C Surge Capability 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Panel Mount Fuse Kit DIN Rail Mount Fuse Kit DR2260D35U L:90 x W:22.5 x D:116mm 30-40 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F115-4-50A(D) L:110 x W:125 x D:185mm (Figure 2) 50-75 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F115-4-90A(D) L:155 x W:125 x D:185mm (Figure 2) 80-125 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F115-4-120A(D) L:210x W:125 x D:195mm (Figure 3) 80-125 Amp 660VAC Fuse Kit N/A F115-4-220A(D) L:155 x W:125 x D:195mm (Figure 4) 160-200 Amp 660VAC Fuse Kit N/A F115-4-250A(D) L:255 x W:125 x D:195mm (Figure 4A) 200-250 Amp 660VAC Fuse Kit N/A Datasheet F115_135 Series Datasheet

Read more less

F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

Read more less

F115 Series Panel Mount Single Phase Solid State Contactors, 70-480VAC Switching, 90-280VAC or 4-32VDC Control Contactor Style Modules Ratings from 50A to 350 Amp @ 70-533 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F115 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 50 - 200 Amp (rms) @ 50 Deg C Surge Capability 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Panel Mount Fuse Kit DIN Rail Mount Fuse Kit DR2260D35U L:90 x W:22.5 x D:116mm 30-40 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F115-4-50A(D) L:110 x W:125 x D:185mm (Figure 2) 50-75 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F115-4-90A(D) L:155 x W:125 x D:185mm (Figure 2) 80-125 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F115-4-120A(D) L:210x W:125 x D:195mm (Figure 3) 80-125 Amp 660VAC Fuse Kit N/A F115-4-220A(D) L:155 x W:125 x D:195mm (Figure 4) 160-200 Amp 660VAC Fuse Kit N/A F115-4-250A(D) L:255 x W:125 x D:195mm (Figure 4A) 200-250 Amp 660VAC Fuse Kit N/A Datasheet F115_135 Series Datasheet

Read more less

F115 Series Panel Mount Single Phase Solid State Contactors, 70-480VAC Switching, 90-280VAC or 4-32VDC Control Contactor Style Modules Ratings from 50A to 350 Amp @ 70-533 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F115 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 50 - 200 Amp (rms) @ 50 Deg C Surge Capability 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Panel Mount Fuse Kit DIN Rail Mount Fuse Kit DR2260D35U L:90 x W:22.5 x D:116mm 30-40 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F115-4-50A(D) L:110 x W:125 x D:185mm (Figure 2) 50-75 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F115-4-90A(D) L:155 x W:125 x D:185mm (Figure 2) 80-125 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F115-4-120A(D) L:210x W:125 x D:195mm (Figure 3) 80-125 Amp 660VAC Fuse Kit N/A F115-4-220A(D) L:155 x W:125 x D:195mm (Figure 4) 160-200 Amp 660VAC Fuse Kit N/A F115-4-250A(D) L:255 x W:125 x D:195mm (Figure 4A) 200-250 Amp 660VAC Fuse Kit N/A Datasheet F115_135 Series Datasheet

Read more less

F135 Series Panel Mount 3 Phase Solid State Contactor, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules Ratings from 13A to 240 Amp per phase @ 30-480 VAC Thermal Overload Detection (via Bimetal Thermal Switch) SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted) Specification Part Number F135 Series Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3-32VDC or 90-280VAC Load Current 13 -150Amp (rms) per Phase @ 50 Deg C Surge Capability (10ms) 597-2000 Amp (peak) Special Feature N/A Mounting Style Panel Mount Load Voltage Range 70-480VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Screw Terminals Factory Pack Qty 1 Dimensions and Fuse Kits Part Number Approximate Dimensions Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A ?? If you need??a fan Control Relay you can find it here in our store. Datasheet F115_135 Series Datasheet

Read more less

Iskra Doo MS-25-A220-240, Shunt Trip Release for MS and MST Series Motor Protection Switch, 220-240VAC Nominal Voltage Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines, agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Iskra Doo Part Number MS-25-A220-240 Functions Shunt Trip release for 3 Phase Motor Protection Switch Nominal Voltage 230VAC @ 50/60Hz Nominal Current Range 6 Amp RMS @400VAC Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity N/A Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 100g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Magnelab SCT-0400-001, 1 Amp, 0.333v Class 1 Series Current Transformer, 10mm Aperture, UL approved Features Quick Release Split Core System Cable Mount 0.333v Output Self Powered Rated System Voltage 0.60/3kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Magnelab Part Number SCT-0400-001 Technology Split Core AC Current Transformer Ratio 1/0.333v Aperture Size ø 10 mm VA Rating N/A Accuracy Class Class 1 Output 0.333v (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 1Amp x 1.2 Termination Style 0.5M Flying Leads Unit Weight 100g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

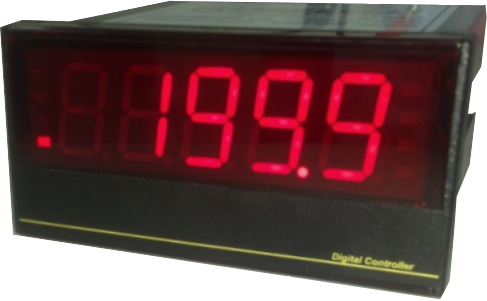

Fastron Electronics AMB-A-A7-A-N, 96x48mm AC Current Panel Meter, Ammeter 0-2 Amp AC Input, 100-240VAC/DC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-A-A7-A-N Conditioner Output N/A Input 0-2 Amp AC Over Range x 1.5 Operating Temperature 0 - 60°C SupplyVoltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Crydom DR24D06, Solid State Relay, 4-32VDC control, 6 Amp 24-280VAC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 6 Amp, 12 Amp 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR24D06 Switching Type DC ROHS Yes (Details) Control Voltage 4-32VDC Load Current 6 Amp (rms) Surge Capability (10ms) 285 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 50g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Similar part ks32-60-24z2-f41f-1z-c2-4  App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
