Recommended products

4305.0001, Fuseholder for IEC Appliance Inlet, 2-pole Product Datasheet

Read more less

4305.0048.01, AC Power Entry Modules Voltage selector insert 100/120/220/240 KE Product Datasheet

Read more less

Schurter CE40.6100.151, IEC Appliance Inlet Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange Features Panel Mount : Screw-on mounting from front side 3 Functions : Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 2-pole Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1   Specification Schurter Part Number CE40.6100.151 Rated Voltage 250V Rated Current 6A Filter Stages N/A Operating Temperature -25°C to 85°C Filter Type N/A Fuse Holder 2 Pole Line Switch 2 Pole Mounting Panel Mount Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 260g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Kendeil K21420562, Electrolytic Capacitor ø77 x 147mm 420V 5600uF, Flat Bottom, 2 x M5 Terminals Characteristics and utility 4700uF, 450V0.0kvar 20kvar Electrolytic Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Kendeil Part Number K21420562 Technology Electrolytic Dimensions ø77 x 147mm Mounting Flat Base Standards IEC 60831-1/2, EN 60831-1/2 Voltage 420VDC Operating Temperature Range -40 to 85 °C Capacitance 5600uF Tolerance On Capacitance +/- 20% Lifetime 8000 Hours @ 85 °C (Long Life) Termination Style M5 Inserts Unit Weight 0.3kg Factory Pack Quantity 50   Datasheet Product Datasheet

Read more less

Xmer CT Split 93/30SC 300/5 Class 0.5 2.5VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 300/5 Class 0.5 2.5VA Technology Split Core AC Current Transformer Ratio 300/5 Aperture Size 23 x 33mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

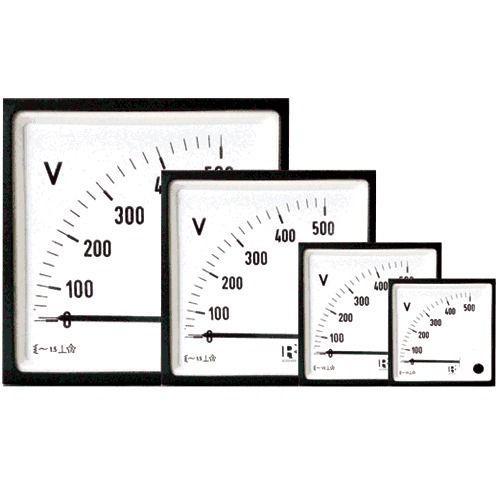

Rishabh DE96/24/240VAC/300VAC, 96x96mm, 0-24VAC Input Voltmeter, 240VAC Range, 300VAC Scale Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/24/240VAC/300VAC Nominal Measurement Range 0 - 24VAC / 240VAC / 300VAC Maximum Measurement Range 400VAC Over Range x 1.2 (300VAC) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron FTCK-6-500-XX-420-0-300-KNE, Type K Thermocouple MIMS Class A, 500mm Probe Length, 6mm Shaft Diameter w/ LARGE Terminal Head, -20 to 500 Deg C, KNE(wire entry:M20x1.5, probe entry: G1/2'') Type K MIMS Thermocouple Class A Accuracy Powder Coated Die Cast Alloy Terminal Head Low Long Term Drift Rated for -20 to 500 Deg C Max Spring Cable Connection 3 or 6mm or Custom 304 SS Sheath Recommended to use BSP Fitting , or Flange for mounting Specification Fastron Part Number FTCK-6-500-XX-420-0-300-KNE Sensor Type Type K Thermocouple No of Wires 2 Probe Length 500mm Sheath Thickness 6mm  Sheath Material SS 304 Stainless Steel Accuracy Class A Approvals CE, ANSI, ROHS Cable length Large Terminal Head (105 x 70mm), M20x1.5, probe entry: G1/2'' Terminal Head Type Large Powder Coated Die Cast Alloy (Weather Proof), Cable Entry, M20  x1.5, Probe Entry: G1/2'' Temperature Range -20 to 500 Deg C Special Feature Large Terminal Head Mounting Style BSP Bayonet or Flange Fitting Recommended Weight 470-700g Factory Pack Qty 1 Datasheet Datasheet

Read more less

MS Power MSD300R16MB, Rectifier Diode 300 Amp, 1600V, ⌀41 x 6.5 x ⌀33mm Flat Base, Anode Base, Replaces S6HR300 Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification MS Power Part Number MSD300R16MB Vrrm 1600V Diode Configuration Anode Stud IF(av) @ 100 Deg C 390 Amp IF(av) @ 125 Deg C 300 Amp Itsm 5.6 kA VF(to) 0.75V Tj(max) 180°C rF 0.40mΩ Termination Style (Tail) 10mm Round Lug Termination Style (Stud) Flat Base ⌀41 x 6.5 x ⌀33mm Tail Length to Base 177mm R th(j-c) 0.16°C/W R th(c-h) 0.005°C/W Weight 250g Mounting Torque 18 Nm Factory Pack Qty 5 Country Of Origin China MS Power Headquarters Germany   Datasheet Product Datasheet

Read more less

SI-102-4-1-L, Signal Isolator/Conditioner, 0-10V input, 20-40VAC/20-60VDC aux, 2 x 0-10V outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI-102-4-1-L Control Output 2 x 0-10V Input 0-10V Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 20-40VAC/20-60VDC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

SI-102-4-1-H, Signal Isolator/Conditioner, 0-10V input, 85-300VAC/DC aux, 2 x 0-10V outputs, Fixed zero and span Fixed Zero and Span Setting 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number SI-102-4-1-H Control Output 2 x 0-10V Input 0-10V Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 85-300VAC/DC Span Adjustment Range Fixed Zero Adjustment Range Fixed Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh Shunt 5A/60mV DC Current Shunt, 60mV output, Form B Class 0.5 Features Low Cost Instantaneous measurement Applications Industrial Electrical Installatons Feedback Control DC Current Measurement Specification Rishabh Part Number Shunt 5A/60mV Nominal Current Ipn (DC) up to 10 Amp Overload Capacity 1.2 x Ipn continuous (5 x Ipn 5 seconds) Mounting Style Panel Mount Operating Temperature Range -25°C / 65°C Standards DIN EN 60 051, DIN EN 50 022-35 Unit Weight up to 7kg Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DE96/110/1000VAC, 96x96mm, 0-110VAC Input Voltmeter, 1000VAC Scale Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DE96/110/1000VAC Nominal Measurement Range 0 - 110VAC Measurement Scale 1000VAC Over Range x1.2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
