PV10-10A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 10Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses   Specification Vicfuse Part Number PV10-10A1000VDCgPV Fuse Type I²t  GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 400 A²/s Nominal Current (DC) 10 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30

Read more less

PV10-15A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 15Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses   Specification Vicfuse Part Number PV10-15A1000VDCgPV Fuse Type I²t  GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 700 A²/s Nominal Current (DC) 15 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W Standards UL2579, IEC 60269, GB13539 DC Breaking Capacity 10kA Unit Weight 8g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30

Read more less

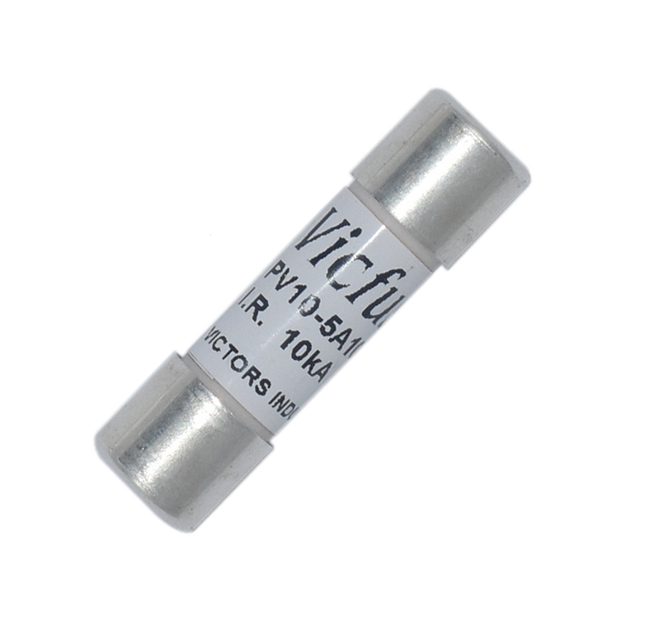

PV10-25A1000VDCgPV, AEO 10.3x38 GpV Solar Fuse 25Amp, 1000VDC @ 10kA, UL2579, IEC 60269, GB13539 Features Meets the new UL and IEC photovoltaic standards UL Recognized for 1000 VDC High breaking capacity of 10 kA @ 1000 VDC Low min. interrupting rating of 1.35 x In Meets the requirements of IEC 61730-2 for PV module safety Applications All photovoltaic applications Inverters Battery charge controllers In-line protection String fuses   Specification Vicfuse Part Number PV10-25A1000VDCgPV Fuse Type I²t  GpV Class Fast Blow Nominal Voltage 1000VDC I²t Rating (Pre-Arcing) 2200 A²/s Nominal Current (DC) 25 Amp Tested Breaking Capacity 10kA @1000VDC Dimensions 10.3 x 38mm Fuse Holder FSO Fuse Holders, VCB10-30 Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 1.8W DC Breaking Capacity 10kA Standards UL2579, IEC 60269, GB13539 Unit Weight 8g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder FSO Fuse Holders VCB10-30
