TRB-22D-G-240, 22mm Pushbutton Momentary GREEN 240VAC, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-G-240 Functions Momentary Colour Black Body, Green Button Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

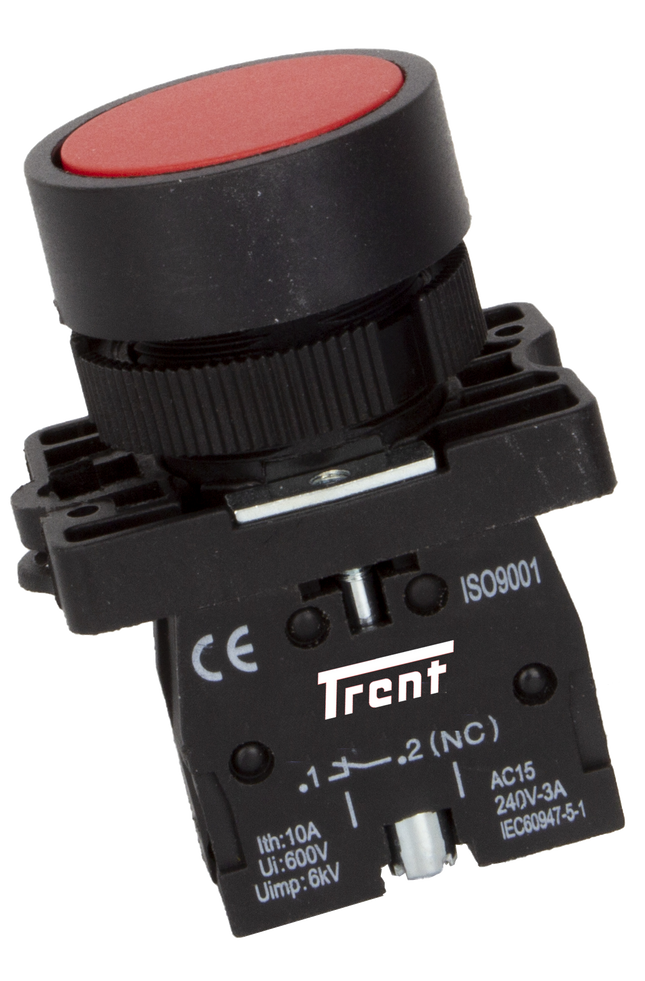

TRB-22D-R-240, 22mm Pushbutton Momentary RED 240VAC, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-R-240 Colour Black Body, Red Button Functions Momentary Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRB-22D-R-240-NC, 22mm Pushbutton Momentary RED 240VAC, NORMALLY CLOSED, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-R-240-NC Colour Black Body, Red Button Functions Momentary (Normally Closed)  Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

TRBM-22D-G-240, 22mm Pushbutton Momentary GREEN 240VAC, Metal, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRBM-22D-G-240 Functions Momentary Colour Black Body, Green Button Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

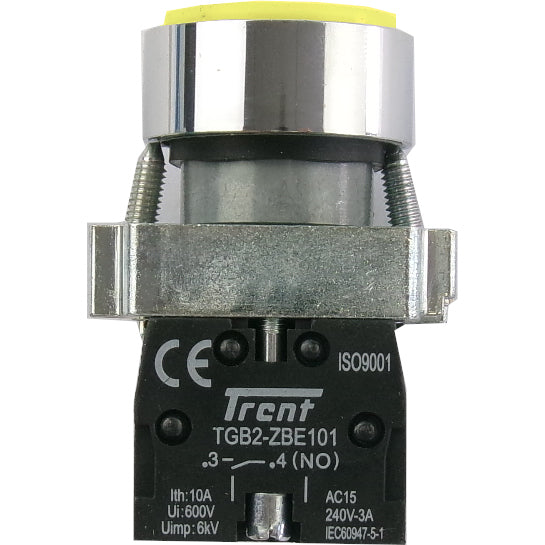

TRBM-22D-Y-240, 22mm Pushbutton Momentary AMBER 240VAC, Metal Body, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRBM-22D-Y-240 Colour Black Body, Red Button Functions Momentary Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

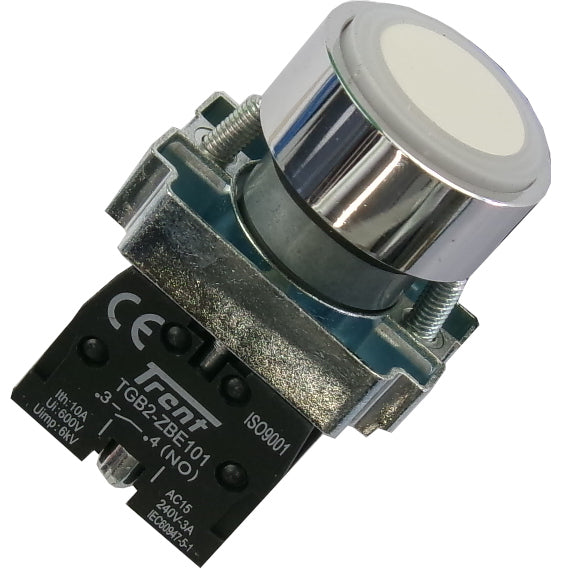

TRBM-22D-W-240, 22mm Pushbutton Momentary WHITE 240VAC, Metal Body, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRBM-22D-W-240 Colour Black Body, White Button Functions Momentary Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

TRB-22D-Y-240, 22mm Pushbutton Momentary AMBER 240VAC, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-Y-240 Colour Black Body, Red Button Functions Momentary Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

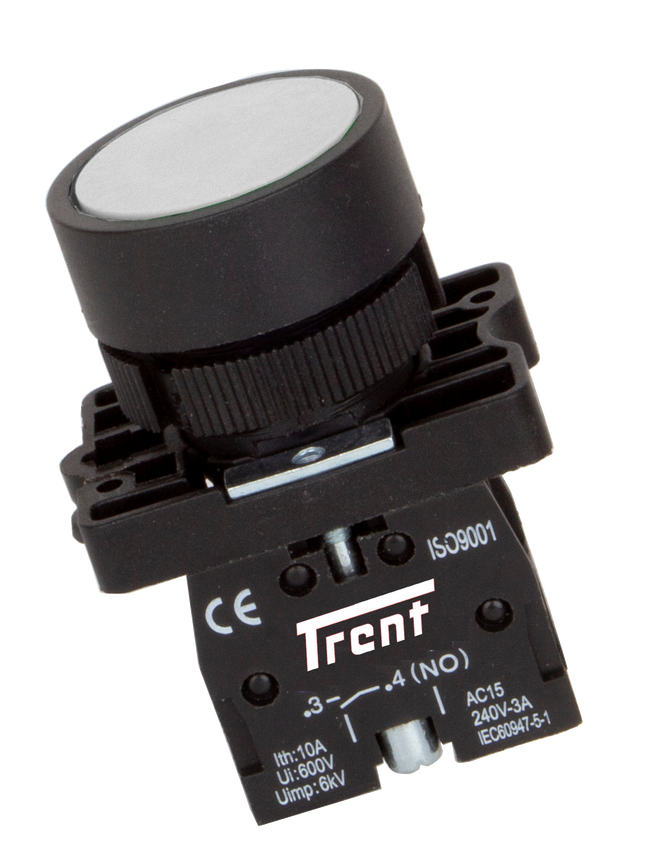

TRB-22D-W-240, 22mm Pushbutton Momentary WHITE 240VAC, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-W-240 Colour Black Body, White Button Functions Momentary Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

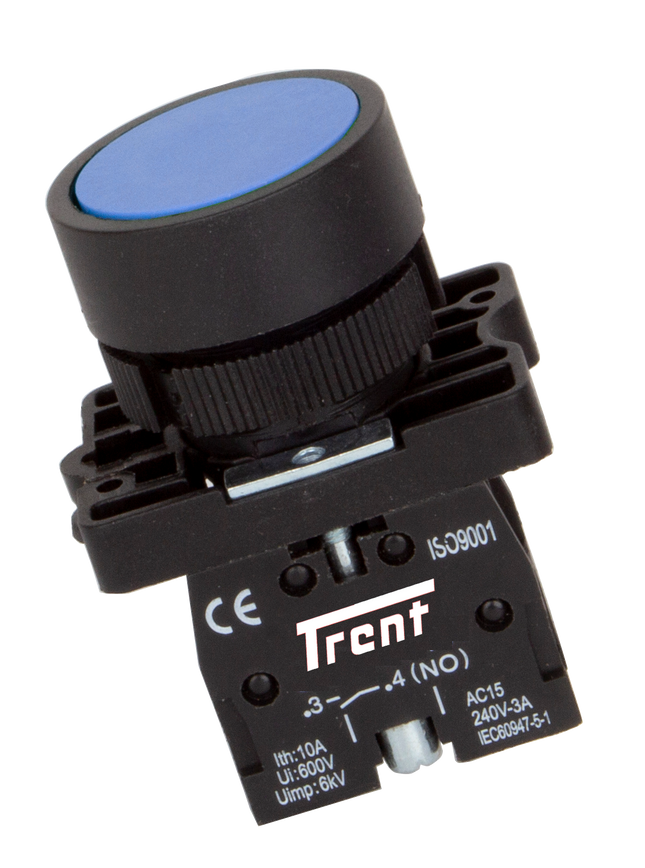

TRB-22D-B-240, 22mm Pushbutton Momentary BLUE 240VAC, Plastic, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-22D-B-240 Functions Momentary Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
