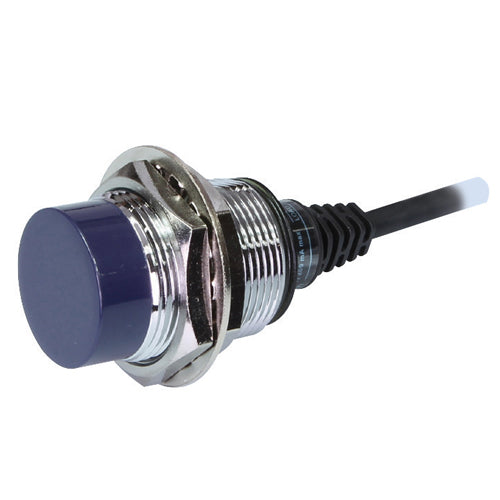

Hanyoung Nux UP30RD-15PA-C, Inductive Proximity Sensor M30 Cylindrical Unshielded, 15mm Sensing Distance (0-12mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 100HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP18RD-8PA-C Sensor Type Inductive Proximity Sensor M18 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 100Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M18 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 130g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

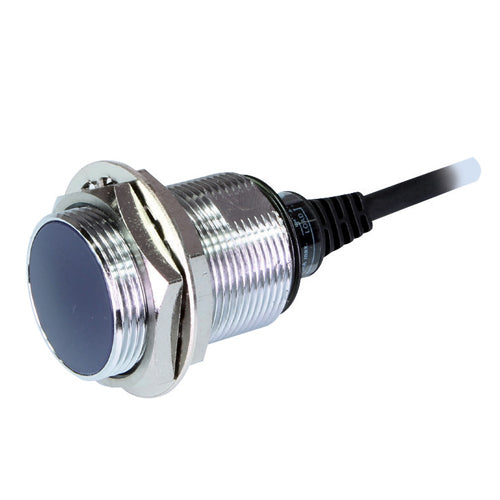

Hanyoung Nux UP30RM-10PA-C, Inductive Proximity Sensor M30 Cylindrical Shielded, 10mm Sensing Distance (0-8mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 250HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP30RM-10PA-C Sensor Type Inductive Proximity Sensor M30 Cylindrical Shielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded YES Sensing Distance 10mm (0-8mm Set) Frequency Response 250Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M30 Standard Target Ferrous Metal 12 x 12 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Protection Class IP67 Colour NPN:Green, PNP:Navy Approvals CE Weight 130g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

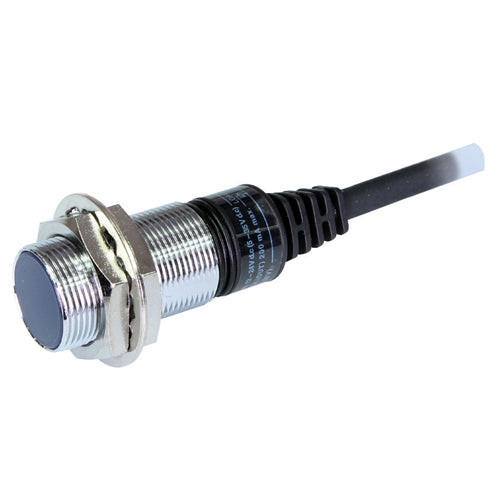

Hanyoung Nux UP12RM-2PA-C, Inductive Proximity Sensor M12 Cylindrical Shielded, 2mm Sensing Distance (0-1.6mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 350HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP18RM-5PA-C Sensor Type Inductive Proximity Sensor M18 Cylindrical Shielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded YES Sensing Distance 5mm (0-4mm Set) Frequency Response 350Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M18 Standard Target Ferrous Metal 12 x 12 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Protection Class IP67 Colour NPN:Green, PNP:Navy Approvals CE Weight 130g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

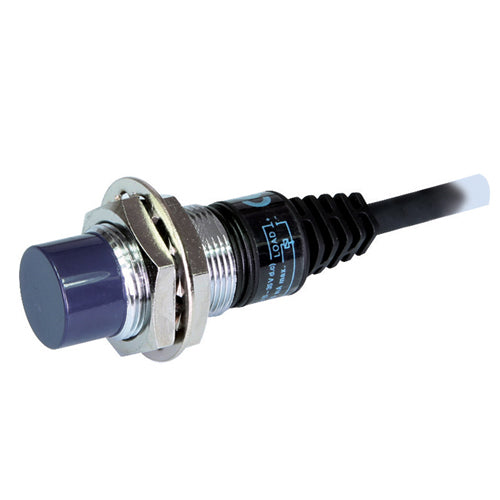

Hanyoung Nux UP12RD-4PA-C, Inductive Proximity Sensor M12 Cylindrical Unshielded, 4mm Sensing Distance (0-3.2mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 400HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP12RD-4PA-C Sensor Type Inductive Proximity Sensor M12 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 4mm (0-3.2mm Set) Frequency Response 400Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

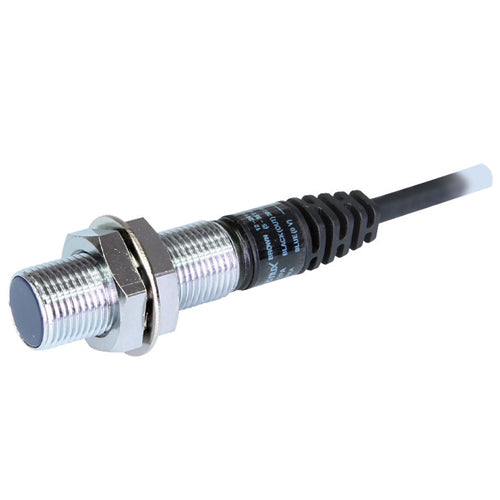

Hanyoung Nux UP12RM-2PA-C, Inductive Proximity Sensor M12 Cylindrical Shielded, 2mm Sensing Distance (0-1.6mm Set), 12-24VDC PNP Output, Normally Open NO, Connector Type 800HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP12RM-2PA-C Sensor Type Inductive Proximity Sensor M12 Cylindrical Shielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded YES Sensing Distance 2mm (0-1.6mm Set) Frequency Response 800Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M12 Standard Target Ferrous Metal 12 x 12 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

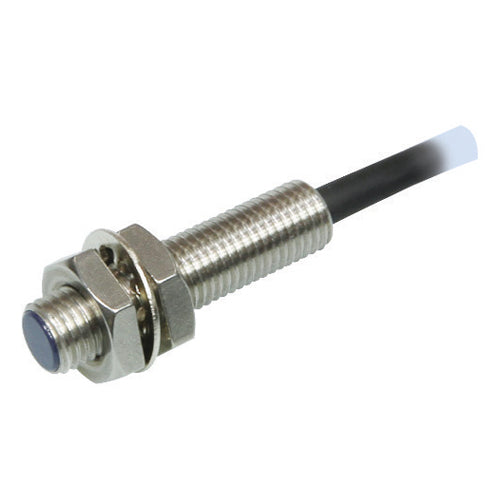

Hanyoung Nux UP8-RM1.5PA, Inductive Proximity Sensor M8 Cylindrical Shielded, 1.5mm Sensing Distance (0-1.2mm Set), 12-24VDC PNP Output, Normally Open NO, Cable Type 800HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Hanyoung Nux Part Number UP8-RM1.5PA Sensor Type Inductive Proximity Sensor M8 Cylindrical Shielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded YES Sensing Distance 1.5mm (0-1.2mm Set) Frequency Response 800Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

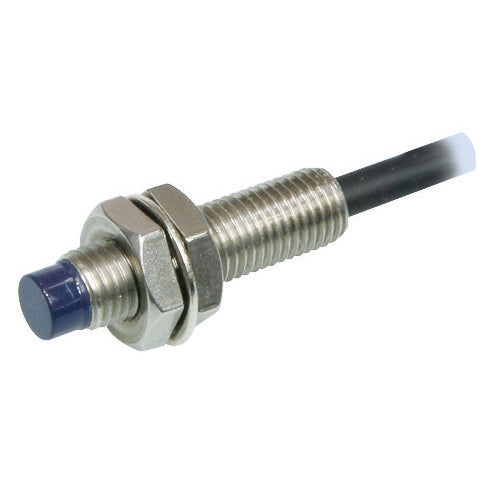

Hanyoung Nux UP8RD-2PA, Inductive Proximity Sensor M8 Cylindrical Unshielded, 2mm Sensing Distance (0-1.6mm Set), 12-24VDC PNP Output, Normally Open NO, Cable Type 800HZ Response 12-24VDC Operating voltage 200mA Maximum Output Built in reverse power, surge, overcurrent protection 50 Meg Ohm Insulation residtance Specification Fastron Part Number UP8RD-2PA Sensor Type High Freqency Oscillating Proximity Sensor M8 Cylindrical Unshielded No of Wires 3 Material Stainless Steel Body / Face PBT / Cable Holder Polyester Elastomer Shielded NO Sensing Distance 2mm (0-1.6mm Set) Frequency Response 800Hz Output Type 12-24VDC PNP Normally Open Sensor Thread Size M8 Standard Target Ferrous Metal 8 x 8 x 1mm Approvals CE Residual Voltage 1.5V Current Consumption 6mA Ambient Operating Temperature -25 to 70 Deg C Insulation Resistance 50 Meg Ohm (500V dc in Megohms) between all terminals and case Dielectric Strength 1500Vac 1 min at 50/60Hz Between all terminals and case Shock Resistance 500m/s^2, 3 times in each direction Vibration Resistance 10-55Hz Double amplitude: 1.5mm, 2 hours in each direction X,Y,Z) Termination Cable Type (stdnard 2M cabel length), connector cable type, connector type Colour NPN:Green, PNP:Navy Protection Class IP67 Approvals CE Weight 80g Factory Pack Qty 1 ?? Datasheet Product Datasheet
