Pre Drilled SSR Heatsink
-
HS072, Panel Mount Heat sink for 1 or 2 single phase Solid State Relay 0.7 Deg C per Watt
Crydom HS072, Panel Mount Heat sink for 1 or 2 single phase Solid State Relay 0.7 Deg C per Watt Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for 1 or 2 x single phase SSR Black anodised for professional look Spec Crydom Part Number HS072 Mounting Type Panel Mount Suitable SSR Rating 90 Amp Dimensions (without SSR) L:114.3mm x W:120.1mm x 66.8mm Thermal Impedance (°C/W) 0.7 Load Current @ 40 Deg C 65 Amp Load Current @ 50 Deg C 54 Amp Unit Weight 437g Factory Pack Qty 10 Datasheet Product Datasheet Mounted Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$54.87
$64.75 inclGST -
HS151DR, Din Rail Mount Heatsink, 40Amp @ 40 Deg, 1.5°C/W
Crydom HS151DR, Din Rail Mount Heatsink for Solid State Relays, 1.5°C/W Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or 3 phase SSR Black anodised for professional look Spec Crydom Part Number HS151DR Mounting Type Din Rail Suitable SSR Rating 125 Amp Dimensions (without SSR) L:152.4mm x W:152.4mm x 88.9mm Thermal Impedance 1.5°C/W Load Current @ 40 Deg C 40 Amp Load Current @ 50 Deg C 35 Amp Unit Weight 437g Factory Pack Qty 10 Datasheet Product Datasheet Mounted Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$79.72
$94.07 inclGST -

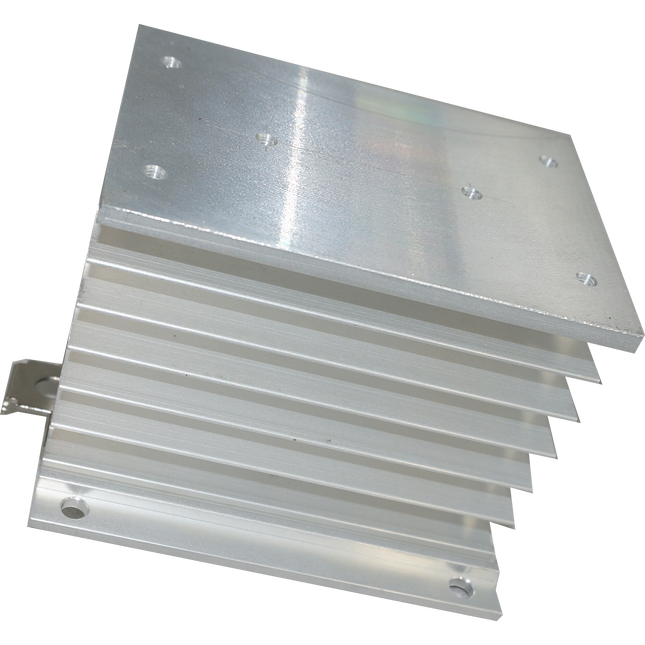

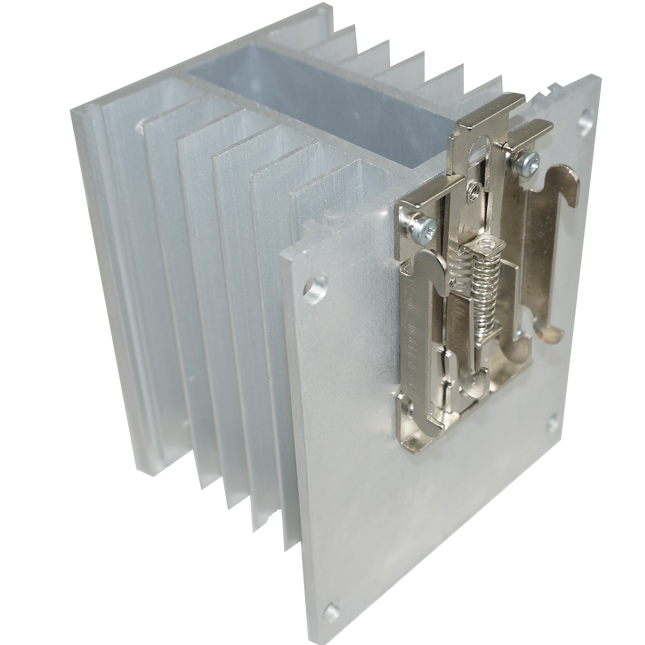

HS212-FCR, Heatsink 110mm, Milled, Drilled and Tapped for FCR Series Proportional SSR Controller, 1°C/W
HS212, Heatsink 110mm, Milled, Drilled and Tapped for Single & 3 Phase SSR, 1°C/W Specifications 3 x 20 Amp @ 40 Deg C Panel Mount Datasheet Product Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.
$49.00
$57.82 inclGST -

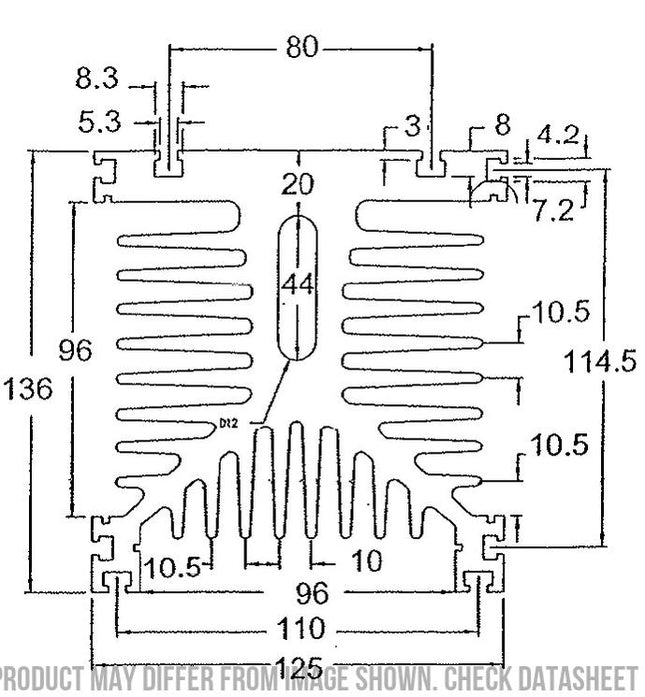

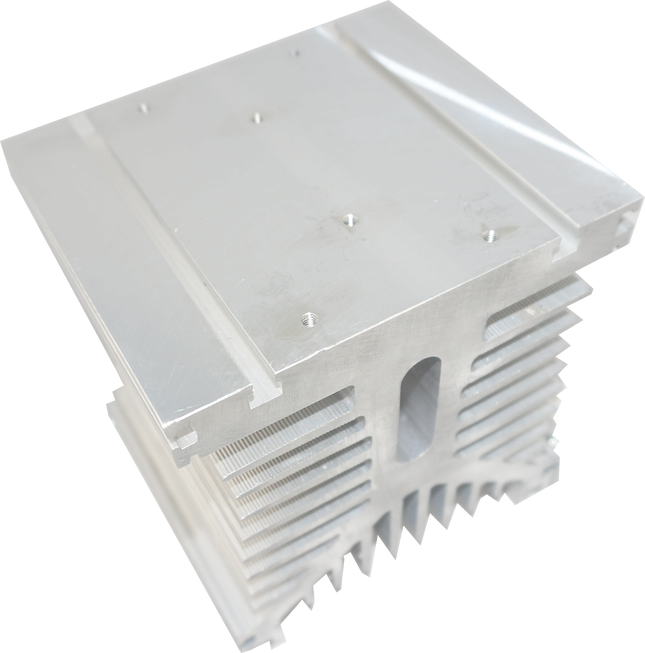

H31/110M-FCR, Heatsink 110mm, Milled, Drilled and Tapped for FCR Series 3 Phase Phase Control Module, 0.5°C/Watt
Free Aus Post Shipping for $300 SpendH31/110M-FCR, Heatsink 110mm, Milled, Drilled and Tapped for FCR Series 3 Phase Phase Control Module, 0.5°C/Watt Product Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.
-
H31/110M-D, Heatsink 110mm, Milled, Drilled and Tapped for 3 Phase SSR, 0.5°C/Watt
H31/110M-D, Heatsink 110mm, Milled, Drilled and Tapped for 3 Phase SSR, 0.5°C/Watt Product Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.
$114.00
$134.52 inclGST -

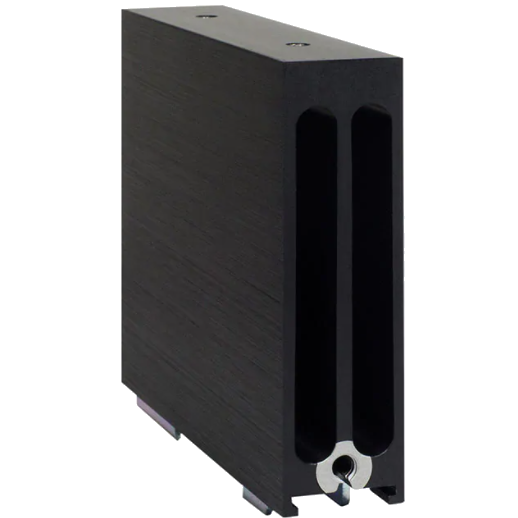

HS259DR, Panel and DIN Rail Mount Heatsink, 25 Amp @ 40 Deg C (with Nova 50 Amp SSR), L:81mm x W:22.5mm x D:80mm, 2.5°C/W
Crydom HS259DR, Panel and DIN Rail Mount Heatsink for Solid State Relays, 25 Amp @ 40 Deg C (with Nova 50 Amp SSR), L:81mm x W:22.5mm x D:80mm, 2.5°C/W Features DIN Rail or Nova Series Panel Mount heat sink types Suitable for 22.5mm width SSR Mounting Black anodised for professional look Spec Crydom Part Number HS259DR Mounting Type Panel and Din Rail Mount Suitable SSR Rating 25/50 Amp Dimensions (without SSR) L:81mm x W:22.5mm x D:80mm Thermal Impedance 2.5°C/W Load Current @ 40 Deg C 25 Amp (With 50 Amp Nova Series SSR) Load Current @ 50 Deg C 17 Amp (With 50 Amp Nova Series SSR) Unit Weight 240g Factory Pack Qty 10 Datasheet Product Datasheet
$67.50
$79.65 inclGST -
GFIN/150M-DR, GFIN Heatsink 150mm long with DIN Rail Clip 0.78 Deg C per Watt
Fastron GFIN/150M-DR, GFIN Heatsink for Solid State Relays, 150mm long with DIN Rail Clip 0.78 Deg C per Watt DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or 3 phase SSR Raw Finish Specification Fastron Part Number GFIN/150M-DR Mounting Type Din Rail Suitable SSR Rating 60/75 Amp Dimensions (without SSR) L:150mm x W:67mm x 88.5mm Thermal Impedance 0.78°C/W Unit Weight 1000g Factory Pack Qty 10 Datasheet Product Datasheet
$102.00
$120.36 inclGST -

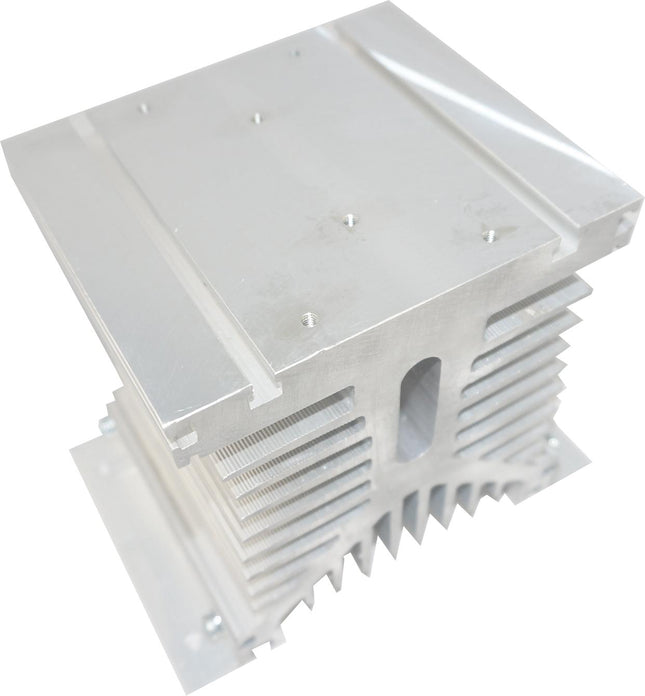

H31/110M-B, H31 110mm long with Drilled Holes for SSR and Mounting Brackets (for Single or 3 Phase SSR), 0.5°C/Watt
H31/110M-B, H31 110mm long with Drilled Holes for SSR and Mounting Brackets (for Single or 3 Phase SSR), 0.5°C/Watt Datasheet Product Datasheet Heatsink products are mostly made to order and require 2-3 days more to produce.
$169.00
$199.42 inclGST -

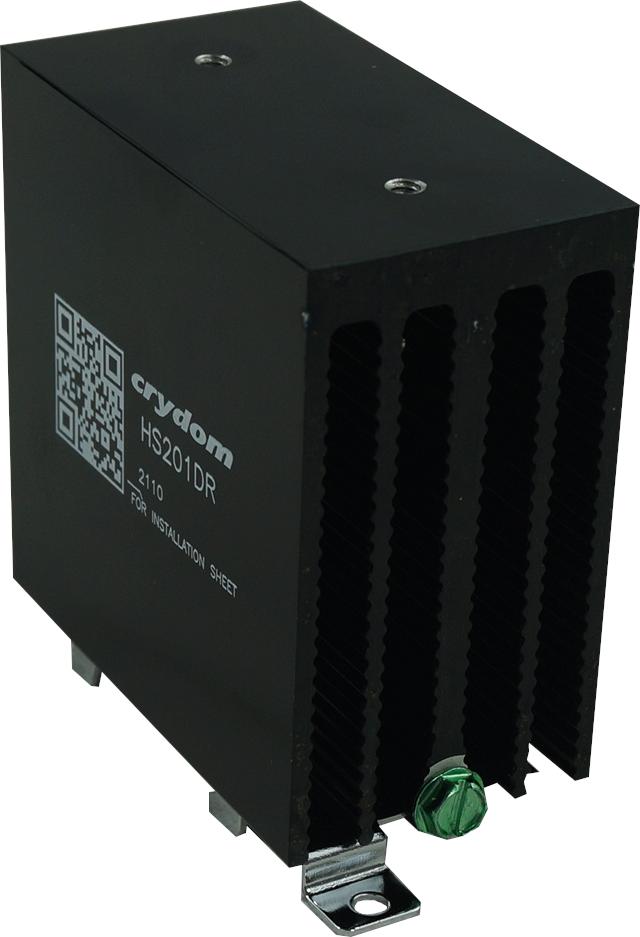

HS201DR, Panel and DIN Rail Mount Heatsink, 27 Amp @ 40 Deg C, 2°C/W
Crydom HS201DR, Panel and DIN Rail Mount Heatsink, 27 Amp @ 40 Deg C, 2°C/W Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or Dual SSR Black anodised for professional look Spec Crydom Part Number HS201DR Mounting Type Panel and Din Rail Mount Suitable SSR Rating 40/50 Amp Dimensions (without SSR) L:81mm x W:45mm x D:80mm Thermal Impedance 2°C/W Load Current @ 40 Deg C 28 Amp Load Current @ 50 Deg C 23 Amp Unit Weight 437g Factory Pack Qty 10 Datasheet Product Datasheet
$75.20
$88.74 inclGST -

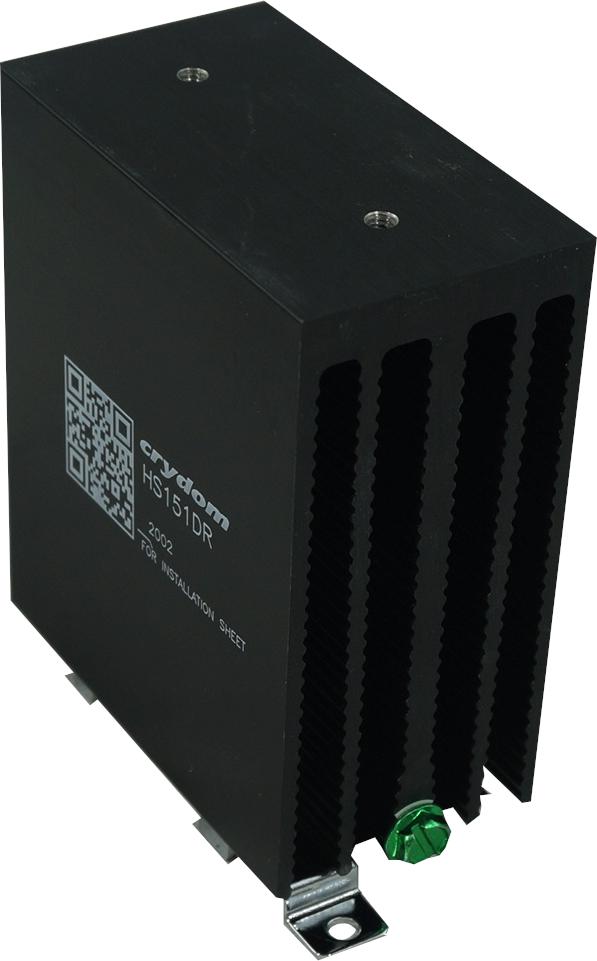

HS151DR Kit, Din Rail Mount Heatsink Kit for Single Phase Solid State Relay, 40Amp @ 40 Deg, Requires Assembly, 1.5°C/W
Crydom HS151DR Kit, Din Rail Mount Heatsink for Solid State Relays, 1.5°C/W Features DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or 3 phase SSR Black anodised for professional look Spec Crydom Part Number HS151DR Kit Mounting Type Din Rail Suitable SSR Rating 125 Amp Dimensions (without SSR) L:152.4mm x W:152.4mm x 88.9mm Thermal Impedance 1.5°C/W Load Current @ 40 Deg C 40 Amp Load Current @ 50 Deg C 35 Amp Unit Weight 437g Factory Pack Qty 10 Datasheet Product Datasheet Mounted Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
$89.00
$105.02 inclGST -
GFIN/70-DR, GFIN Heatsink 100mm long with DIN Rail Clip 1.45 Deg C per Watt
Fastron GFIN/70-DR, GFIN Heatsink for Solid State Relays, 100mm long with DIN Rail Clip 1.45 Deg C per Watt DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or 3 phase SSR Raw Finish Specification Fastron Part Number GFIN/70-DR Mounting Type Din Rail Suitable SSR Rating 60/75 Amp Dimensions (without SSR) L:100mm x W:67mm x 88.5mm Thermal Impedance 1.45°C/W Load Current @ 40 Deg C 32 Amp Load Current @ 50 Deg C 29 Amp Unit Weight 550g Factory Pack Qty 10 Datasheet Product Datasheet
$74.00
$87.32 inclGST -
GFIN/100M-DR, GFIN Heatsink 100mm long with DIN Rail Clip 1.1 Deg C per Watt
Fastron GFIN/100M-DR, GFIN Heatsink 100mm long with DIN Rail Clip 1.1 Deg C per Watt DIN Rail or Panel Mount heat sink types Suitable for SSR Mounting Pre drilled for single or 3 phase SSR Raw Finish Specification Fastron Part Number GFIN/100M-DR Mounting Type Din Rail Suitable SSR Rating 60/75 Amp Dimensions (without SSR) L:100mm x W:67mm x 88.5mm Thermal Impedance 1.1°C/W Load Current @ 40 Deg C 52.5 Amp Load Current @ 50 Deg C 45 Amp Unit Weight 700g Factory Pack Qty 10 Datasheet Product Datasheet Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here SSR
$87.00
$102.66 inclGST
