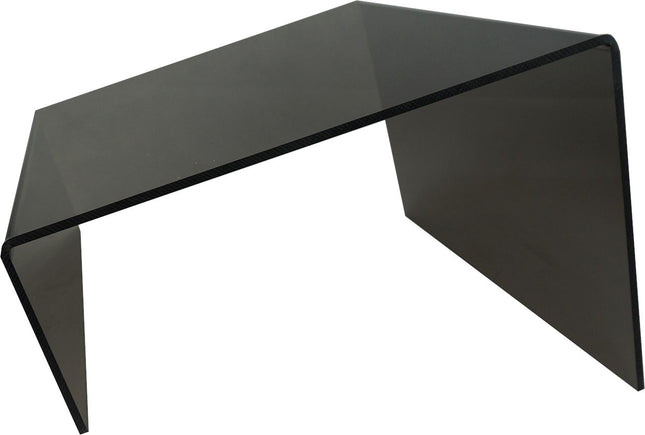

Perspex Cover for F Series Power Controllers 120-340 Amp Power Controllers See the following brochures for dimensions of each controller F330 Brochure F431 Brochure F430 Brochure

Read more less

Oztherm F330-4-N/A-C-PH Series 3 Phase SCR Phase Angle Controller Spare Option Card, Can Replace Novatherm C3000A Features 100% Australian Made 3 Phase, Phase Angle Controller or DC Soft Starter 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Phase angle switching Option Card Only Applications Electrical Ovens, Kilns, or Furnaces AC Soft Starter Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Sheet Metal Welding Available Options Voltage Regulation AC (A) Current Limit and Trip AC (C) Current Limit and Trip DC (CE) Current Control/Constant Current AC(CC) Current Control/Constant Current DC(CCE) Power Limit (PW) Phase Loss Alarm/Dispable (PH) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overlad Protection (T) Special Features w/ +/-15VDC Supply for Hall Sensor Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F330-4-N/A-C-PH Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current N/A Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC or DC, Current Control AC or DC, Voltage Regulation AC, Power Limit, Phase Loss Alarm, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 380-440VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 10kg Factory Pack Qty 1 Brochure F330 Brochure Technical Docs Installation and Commissioning Manual Standard Thyristor Wiring Diagram Control Card Wiring Diagram F311A1 New CCE option PCB1019-XX Wiring Diagram Bridge Output Thyristor Wiring Diagram Primary Transformer Wiring Diagram Start Delta Wiring Diagram Calibration Procedure Blog PDF Copy of Calibration Procedure Customised models Customised models list Contact Us for customised features not listed

Read more less

Fastron FYCF-1, Single Phase Voltage Control SCR Trigger Module, 4-20mA,2-10V,1-5V,5K POT Input, 200-450VAC, 12VDC Aux Supply. Can Replace Semikron Semi-PCM 2 SKPC200 4-20mA,2-10V, 1-5V or 10K POT Proportional Phase Control Input Suitable for SCR Blocks up to 3000 Amp Instantaneous turn-on output CE Approval (Pending) Can Replace Semikron Semi-PCM 2 SKPC200 for most applications Specification Fastron part Number FYCF-1 Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,2-10V,1-5V,10K POT Proportional Input Load Current Based on SCR Stack Special Feature Single Phase Proportional Controller/Trigger Mounting Style Panel Mount Load Voltage Range 200-450VAC +10% Termination Style Barrier Strip Screw Dimensions 105 x 90 x 40mm Unit Weight 400g Factory Pack Qty 20   Datasheet and User Manual FYCF-1

Read more less

Fastron FYCF-3, Three Phase Voltage Control SCR Trigger Module, 4-20mA,2-10V,1-5V,5K POT Input, 200-450VAC, 12VDC Aux Supply. Can Replace Semikron Semi-PCM 2 4-20mA,2-10V, 1-5V or 10K POT Proportional Phase Control Input Suitable for SCR Blocks up to 3000 Amp Instantaneous turn-on output CE Approval (Pending) Can Replace Semikron Semi-PCM 2 SKPC200 for most applications Specification Fastron part Number FYCF-3 Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,2-10V,1-5V,10K POT Proportional Input Load Current Based on SCR Stack Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 200-450VAC +10% Termination Style Barrier Strip Screw Dimensions 105 x 90 x 40mm Unit Weight 400g Factory Pack Qty 20   Datasheet and User Manual FYCF-3

Read more less

Fastron FYCF-3R, Three Phase Voltage Control SCR Trigger Module with Soft Start Function, 4-20mA,2-10V,1-5V,5K POT Input, 200-450VAC, 12VDC Aux Supply. Can Replace Semikron Semi-PCM 4-20mA,2-10V, 1-5V or 10K POT Proportional Phase Control Input Suitable for SCR Blocks up to 3000 Amp Instantaneous turn-on output CE Approval (Pending) Can Replace Semikron Semi-PCM 2 SKPC200 for most applications Specification Fastron part Number FYCF-3R Switching Type Phase Angle (Random Crossing) with Soft Start Control Voltage 4-20mA,2-10V,1-5V,10K POT Proportional Input Load Current Based on SCR Stack Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 200-450VAC +10% Termination Style Barrier Strip Screw Dimensions 105 x 90 x 40mm Unit Weight 400g Factory Pack Qty 20   Datasheet and User Manual FYCF-3

Read more less

FastronFKPC-200-400 Rev 2, Single Phase Voltage Control SCR Trigger Module, 4-20mA,0-10V,0-5V,5K POT Input, 200-450VAC, 240VAC Aux Supply, Can Replace Semikron Semi-PCM 2 SKPC200-240, CE Approved, Previously FKPC-240-CE Rev 2 Rev 2: Supports Inputs: 4-20mA,0-10V, 0-5V or 10K POT Proportional Phase Control Input Suitable for SCR Blocks up to 3000 Amp Instantaneous turn-on output CE Approval (Pending) Can Replace Semikron Semi-PCM 2 SKPC200 for most applications. Please take care to connect 240VAC Aux Supply Seperately and connect the gate leads to cathode rather than anode  Specification Fastron part Number FKPC200-400 Rev 2 (Previously FKPC-240-CE Rev 2) (Possible Replacement to SKPC200-240) Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,0-5V,10K POT Proportional Input (Note the zero value is 0.20.3V to avoid noise to cause gate firing Load Current Based on SCR Stack Special Feature Single Phase Proportional Controller/Trigger Mounting Style Panel Mount Load Voltage Range 200-450VAC +10% Auxiliary Power Supply 200-450VAC +10% Termination Style Barrier Strip Screw Dimensions 105 x 90 x 40mm Certifications EMC EN 61000-6-3:2007+A1:2011, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN IEC 61000-6-1:2019 Certifications LVD Low Voltage Directive 2014/35/EU, EN IEC 60947-1:2021 Unit Weight 400g Factory Pack Qty 20   Datasheet and User Manual User Manual FKPC wiring Half Controlled M505012F Crydom Bridge for up to 240VAC - 400VAC Load FKPC wiring Half Controlled SKCH28/16 Bridge for up to 240VAC - 400VAC Load FKPC AC Switch Wiring

Read more less

Fastron FKPC-200-400 Rev 3 (FKPC-240-CE Rev 3), Single Phase Voltage Control SCR Trigger Module, 4-20mA,0-10V,0-5V,5K POT Input, 200-450VAC, 240VAC Aux Supply, Can Replace Semikron Semi-PCM 2 SKPC200-240 Rev 2: Supports Inputs: 4-20mA,0-10V, 0-5V or 10K POT Proportional Phase Control Input Rev 3: As above and with added internal circuit protection to imporve reliability in noisy environments.  Suitable for SCR Blocks up to 3000 Amp Instantaneous turn-on output CE Approval (Pending) Can Replace Semikron Semi-PCM 2 SKPC200 for most applications. Please take care to connect 240VAC Aux Supply Seperately and connect the gate leads to cathode rather than anode . see full wirign detail in the datasheet Tab in this page Specification Fastron part Number FKPC200-400 Rev 3 (Previously FKPC-240-CE Rev 3) (Possible Replacement to SKPC200-240) Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,0-5V,10K POT Proportional Input (Note the zero value is 0.20.3V to avoid noise to cause gate firing Load Current Based on SCR Stack Special Feature Single Phase Proportional Controller/Trigger Mounting Style Panel Mount Load Voltage Range 200-450VAC +10% Auxiliary Power Supply 200-450VAC +10% Termination Style Barrier Strip Screw Dimensions 105 x 90 x 40mm Certifications EMC EN 61000-6-3:2007+A1:2011, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN IEC 61000-6-1:2019 Certifications LVD Low Voltage Directive 2014/35/EU, EN IEC 60947-1:2021 Unit Weight 400g Factory Pack Qty 20   Datasheet and User Manual User Manual FKPC wiring Half Controlled M505012F Crydom Bridge for up to 240VAC - 400VAC Load FKPC wiring Half Controlled SKCH28/16 Bridge for up to 240VAC - 400VAC Load FKPC AC Switch Wiring
