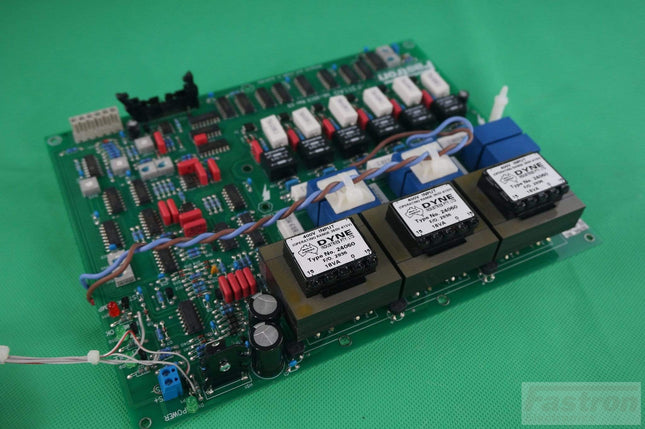

Oztherm F330 Series 3 Phase SCR Phase Angle Controller Spare Card Set, Can Replace Novatherm C3000 & C3000A Features 100% Australian Made 3 Phase, Phase Angle Controller or DC Soft Starter 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Fully enclosed IP20 Phase angle switching Aluminium Frame Removable perspex Cover Applications Electrical Ovens, Kilns, or Furnaces AC Soft Starter Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Sheet Metal Welding Available Options Voltage Regulation AC (A) Current Limit and Trip AC (C) Current Limit and Trip DC (CE) Current Control/Constant Current AC(CC) Current Control/Constant Current DC(CCE) Power Limit (PW) Phase Loss Alarm/Dispable (PH) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overlad Protection (T) Special Features Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F330 Series 3 Phase, Phase Angle Controller Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current N/A Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC or DC, Current Control AC or DC, Voltage Regulation AC, Power Limit, Phase Loss Alarm, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 380-440VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 10kg Factory Pack Qty 1 Brochure F330 Brochure Technical Docs Installation and Commissioning Manual Standard Thyristor Wiring Diagram Control Card Wiring Diagram F311A1 New CCE option PCB1019-XX Wiring Diagram Bridge Output Thyristor Wiring Diagram Primary Transformer Wiring Diagram Start Delta Wiring Diagram Calibration Procedure Blog PDF Copy of Calibration Procedure Customised models Customised models list Contact Us for Possible Replacement for customised features not listed

Read more less

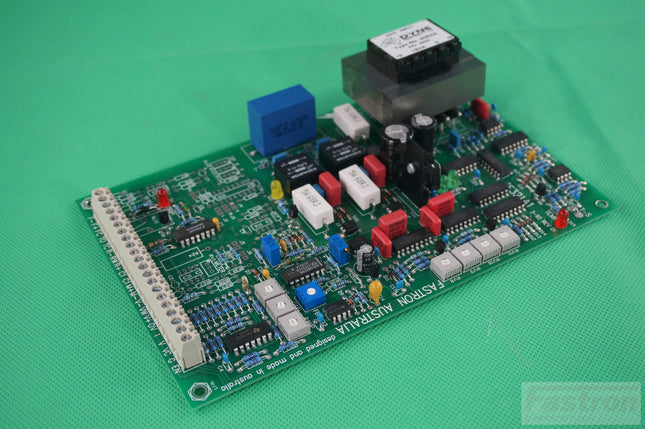

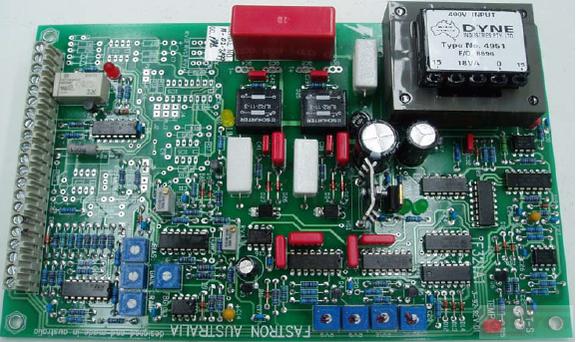

Oztherm F311 Series Single Phase SCR Phase Angle Controller, Card Only 100% Australian Made Single Phase, Phase Angle Controller or AC Soft Starter 4-20mA, 0-5V, 0-10V or POT input Proportional Phase Control Phase angle switching Cards Only Applications Electrical Ovens, Kilns, or Furnaces AC Soft Starter Primary Control of Transformer Rectifers Controlled Power Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Sheet Metal Welding Available Options Voltage Regulation AC (A) Current Limit and Trip AC (C) Current Control/Constant Current AC (CC) Power Limit (PW) Loose Semiconductor Fuses (F) Internal Semiconductor Fuses (FI) Thermal Overload Protection (T) Special Features Contact Us for Possible Replacement for customised features Specification Oztherm Part Number F330 Series 3 Phase, Phase Angle Controller Rated Operationg Temperature 50°C SCR Configuration 3 Phase AC Swtich Control Voltage 4-20mA, 0-5V, 0-10V, 10K POT (4-20mA default calibration) Load Current 100 - 150 Amps Per Phase Control Range 0-100% Special Feature (Optional) Current Limit & Trip AC, Current Control AC, Voltage Regulation AC, Power Limit, Thermal Overload Protection, Fuses Mounting Style Panel Mount Supply Voltage Range 190-265VAC +/-10% Soft Start 1-20mS Termination Style Screw Unit Weight up to 28kg Factory Pack Qty 1 Technical Docs F311 Brochure F311 Installation and Commissioning Manual Calibration Procedure Blog - New Calibration Procedure PDF Thyristor Wiring Diagrams - New Control Wiring Diagrams - New Customised models Customised models list Contact Us for Possible Replacement for customised features not listed

Read more less
