Fastron Electronics FEFC203-130-T, 2 Stage EMI (RFI) Input [Inverter] Output [NON Inverter] Sine Wave Filter for 3-phase systems, 130 Amp, 400VAC Features Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Input [Inverter] Output [NON Inverter] Sine Wave Filter with high attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC203-130-T Rated Voltage 400V Rated Current 130A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount Material Metal Termination Style Screw Weight 25kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less

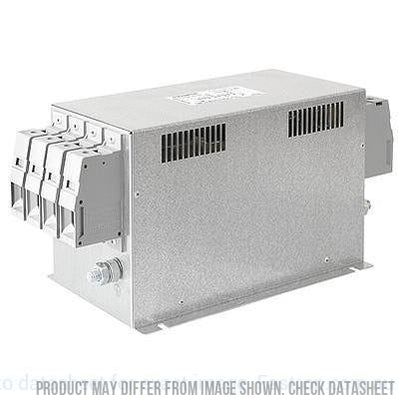

Fastron Electronics FEFC203-150-T, 2 Stage EMI (RFI) Input [Inverter] Output [NON Inverter] Sine Wave Filter for 3-phase systems, 150 Amp, 400VAC Features Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Input [Inverter] Output [NON Inverter] Sine Wave Filter with high attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC203-150-T Rated Voltage 400V Rated Current 150A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount Material Metal Termination Style Screw Weight 4kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less

Fastron Electronics FEFC203-200-T, 2 Stage EMI (RFI) Input [Inverter] Output [NON Inverter] Sine Wave Filter for 3-phase 3 wire systems, 200 Amp, 400VAC Features Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Input [Inverter] Output [NON Inverter] Sine Wave Filter with standard attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC203-200-T Rated Voltage 400V Rated Current 200A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 4.5kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE, ROHS Yes   Datasheet Product Datasheet

Read more less

Fastron Electronics FEFC203-20-T, 2 Stage EMI (RFI) Input [Inverter] Output [NON Inverter] Sine Wave Filter for 3-phase 3 wire systems, 20 Amp, 400VAC Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Output Sine wave filter with high attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC203-20-T Rated Voltage 400V Rated Current 20A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 2.0kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less

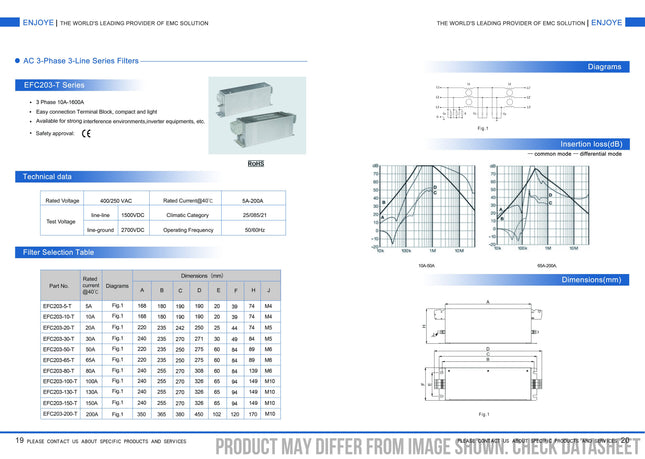

Fastron Electronics FEFC203-65-T, 2 Stage EMI (RFI) Input [Inverter] Output [NON Inverter] Sine Wave Filter for 3-phase 3 wire systems, 65 Amp, 400VAC Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Output Sine wave filter with high attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC203-65-T Rated Voltage 400V Rated Current 60A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 3.5kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less
