Rishabh DS72/400A/60mV DC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/400A/60mV Nominal Measurement Range 0 - 400 Amp AC Shunt Input 0-60mV Unipolar Maximum Measurement Range 400 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

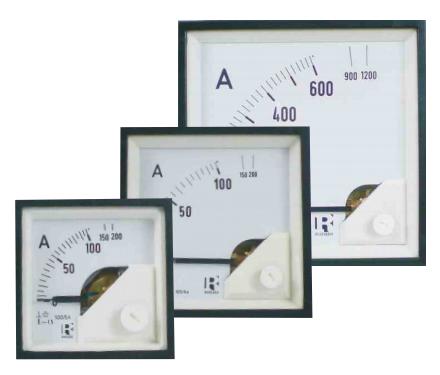

Rishabh DS72/100A/60mVDC Direct Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/100A/60mV Nominal Measurement Range 0 - 100 Amp DC Shunt Input 0-60mV Unipolar Maximum Measurement Range 100 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS72/250A/60mV, Moving Coil Ammeter 250Amp for 250A/60mVDC Shunt Connect Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72x72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/250A/60mV Nominal Measurement Range 0 - 250 Amp DC Shunt Input 0-60mV Unipolar Maximum Measurement Range 250 AmpDC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DE72/50/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/50/5A Nominal Measurement Range 0 - 50 Amp AC Maximum Measurement Range 50 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...50Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE72/500/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/500/5A Nominal Measurement Range 0 - 500 Amp AC Maximum Measurement Range 500 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...500Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE72/300/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/300/5A Nominal Measurement Range 0 - 300 Amp AC Maximum Measurement Range 300 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...300Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE72/200/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/200/5A Nominal Measurement Range 0 - 200 Amp AC Maximum Measurement Range 200 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...200Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE72/600/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/600/5A Nominal Measurement Range 0 - 600 Amp AC Maximum Measurement Range 600 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE72/400/5A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/400/5A Nominal Measurement Range 0 - 400 Amp AC Maximum Measurement Range 400 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Rishabh DE72/100/1A Moving Coil Ammeter Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DE72/100/5A Nominal Measurement Range 0 - 100 Amp AC Maximum Measurement Range 100 Amp Over Range Isn x 2 (10 Amp) Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 Datasheet Product Datasheet
