Rincon Power RER03B1BX, MiniTactor Contactor, 1500VDC, 25Amp, SPST-NO, 24VDC Coil, 500,000 Cycles, 3kV Isolation, 4.3mm Fastron Coil Terminals, 6.3mm Faston Power Terminals Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24VDC options Ideal for battery powered systems or where low power is needed Small and lightweight Flexible package for installation Specification Rincon Power Part Number RER03B1BX Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 20A @ 85°C Mechanical Life @ 0 Amp 500,000 Operations Impulse Withstand 3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1500VDC Standards See datasheet Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

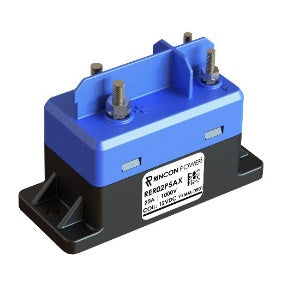

Rincon Power RER02P5BX, MiniTactor Contactor, 1000VDC, 25Amp, SPST-NO, 24VDC Coil, 500,000 Cycles, 3kV Isolation, M4 Load, M3 Coil Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24DC options Ideal for battery powered systems or where low power is needed Small and lightweight Flexible package for installation Specification Rincon Power Part Number RER02P5BX Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 20A @ 85°C Mechanical Life @ 0 Amp 500,000 Operations Impulse Withstand 3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1000VDC Standards See datasheet Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac P126FDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P126FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac P126CDA, Contactor SPST-NO, 30 AMP, 1200VDC, 24VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P126CDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 24VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac P125FDA, MiniTactor Contactor SPST-NO, 30 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals, IP67, IP69 Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation ROHS2 Compliant Bidirectional Switching capability Specification Gigavac Part Number P125FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 30 Amp Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC, ROHS2 Termination Style M4 Screw Unit Weight 90g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac P115FDA, MiniTactor Contactor, 1000VDC, 50A @ 25°C, 25A @ 85°C, SPST-NO, 48VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Specification Gigavac Part Number P115FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 50A @ 25°C, 25A @ 85°C Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1500VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Iskra Doo K07MG-10-24VDC, AC Miniature Contactor 240/400/500/690V, with 24VDC Control Voltage, 4 Pole 4 x NO, Nominal Current = 11.3 Amps Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : High contact reliability at low voltages High electrical and mechanical endurance and high switching capacity Four and Three-pole contactors Optional auxiliary contacts Ratings from 6 Amp to 1000 Amp UL, CSA Approved Advantages : Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 240 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number K07MG-10-24VDCC Functions 4 Pole Contactor 4 x NO Nominal Voltage 230/400/500/690VAC @ 50/60Hz Current Carrying Capacity as per UL 15.5 Amp Continuous @ 55 Deg C Auxiliary Contacts Optional Trip Delay Time 2-10ms Electrical Life 200,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 10.000,000 Ops Control Voltage 220/250VDC Power Dissipation 0.36W Approvals UL, CSA, CE Standards IEC/EN 60947-4-1, AS/NZ 61009-1 Weight 200g Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet Contactor Catalogue Iskra Contactor Catalogue

Read more less

Gigavac P105FDA, MiniTactor Contactor SPST-NO, 50 AMP, 1200VDC, 48VDC Coil, M3 Coil Screw Terminals, M4 Power Terminals Features Perfect for Photovoltaic/Battery Systems Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Chassi level power terminals Specification Gigavac Part Number P105FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 50 Amp Mechanical Life @ 0 Amp 100,000 Operations Dielectric at Sea Level 4.3kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1200VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
