1241.6611.1110000, MSM16 16mm, Pushbutton Switch Metal, Stainless Steel Housing and Actuator, 100mA @ 30VDC, IP40, 0.2 Million Ops   Pushbutton switch available in version Standard, Illuminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 1241.6611.1110000 Switch Size 19mm Cutout Nominal Voltage 30VDC Rated Power 3W Switch Type Momentary - Medium Stroke ON - (OFF), OFF - (ON) Illumination voltage N/A Nominal Current (AC/DC) 100mA @30VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø20 x 33.4mm Operating Temperature Range -20°C / 85°C Termination PC Pin/PCB Mount IP Protection Rating IP40 (IP67 on request) Unit Weight 40g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

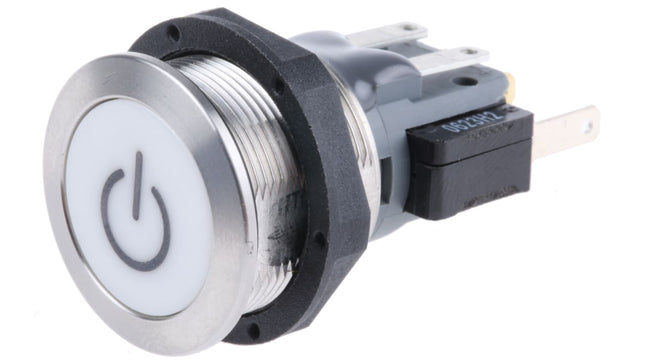

3-120-091, MSM CS 19mm, Pushbutton Switch Metal with Blue Illumination and Power Mark, 3Amp @ 250VAC, 30VDC, 5-28VDC Illumination Supply, 0.2 Million Ops Description Pushbutton switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 3 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-120-091 Switch Size 20 x 19mm Nominal Voltage 240VAC/30VDC Rated Power 750W Switch Type Latching C/O Illumination voltage 5-28VDC @ 10mA Nominal Current (AC/DC) 3 Amp @240VAC, 0.5 Amp @ 30VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operations 0.2 Million Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67K with Oring) IP 64 (IP40 switching circuit) Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

Schurter 3-102-774, MSM30 30mm, Pushbutton Switch Metal with Blue Point Illumination, 100mA @ 30VDC, 5-48VDC Illumination Supply, 0.2 Million Ops Description Pushbutton switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-102-774 Switch Size 8 x 22mm Nominal Voltage 30VDC Rated Power 3W Switch Type Momentary Illumination voltage 5-48VDC @ 10mA Nominal Current (AC/DC) 100mA @ 30VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø 30x 33.1mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 80g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

Schurter 0701.9233 Connecting Terminal plug for pin type Metal Line Switches Description Terminal

Read more less

Schurter 3-100-525 PSE IV 22, Piezo Momentary Switch 22mm, Metal with RGB Ring Illumination, 100mA @ 42-48VDC, Prolonged Operation, 24VDC Illumination Supply 20 Million Ops Description Piezo switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 42/60 VAC/DC, switching current max. 100 mA 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-100-525 Switch Size 22 x 21mm Nominal Voltage 42-60VAC/DC Rated Power 1.2W Switch Type Momentary C/O Illumination voltage 24VDC Nominal Current (AC/DC) 100mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -40°C / 85°C Termination 200mm Flying leads IP Protection Rating IP 67 with Oring Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

Schurter 3-104-254 PSE IV 30, Piezo Momentary Switch Metal with RGB Ring Illumination, 100mA @ 42-48VDC, Prolonged Operation, 24VDC Illumination Supply 20 Million Ops Description Piezo switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 42/60 VAC/DC, switching current max. 100 mA 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-104-254 Switch Size 30 x 33.6mm Nominal Voltage 42-60VAC/DC Rated Power 1.2W Switch Type Momentary C/O Illumination voltage 24VDC Nominal Current (AC/DC) 100mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -40°C / 85°C Termination 200mm Flying leads IP Protection Rating IP 67 with Oring Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

Schurter 3-108-977 MSM30 30mm, Pushbutton Switch Metal with Blue Point Illumination, 100mA @ 30VDC, 5-48VDCVDC Illumination Supply, 0.2 Million Ops Description Pushbutton switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-108-977 Switch Size 8 x 30mm Nominal Voltage 30VDC Rated Power 750W Switch Type Latching C/O Illumination voltage 5-48VDC @ 10mA Nominal Current (AC/DC) 100mA @ 30VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø 30x 33.1mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 80g Factory Pack Qty 10 Datasheet Product Datasheet

Read more less

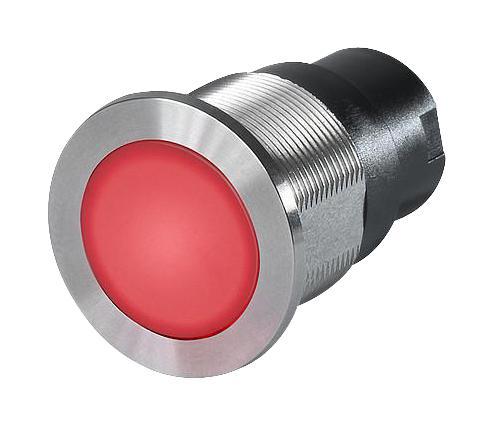

3-101-398 CPS, 19mm Capacitive Touch Sensor as Momentary Switch Metal/Ceramic Full button Illumination, SPST 100mA @ 42VAC/60VDC, 5-28VDC Illumination Supply 5 Million Ops @ 100 mA Description Capacitove Touch Sensors as Momentatry switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Vandal Proof Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 42VAC 60VDC, switching current max. 100 mA 5-28VDC Illumination Supply Voltage Zinc die-cast for housing and Ceramic actuator For indoor use, no illumination, no lettering Stainless Steel for housing and Cermaic actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-101-398 Switch Size 5 x 20mm Nominal Voltage 42VAC/60VDC Rated Power 0.6W Switch Type Capacitive Touch Momentary C/O Illumination voltage 5-28VDC @ 10mA Nominal Current (AC/DC) 12 Amp Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -40°C / 85°C Termination Faston/Solder Pins IP Protection Rating IP 67 with Oring Unit Weight 40g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

F40-272Y, 22mm Momentary Pushbutton Switch Metal with YELLOW Ring Illumination, 2xNO 2xNC, 3Amp @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops Description Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 2xNO 2xNC, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no Illumination, 2xNO 2xNC, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Specification Fastron Electronics Part Number F40-272Y Switch Size 20 x 22mm Nominal Voltage 250VAC/DC Rated Power 750W Switch Type Momentary 2xNO 2xNC Illumination voltage 24VDC @ 10mA Illumination type YELLOW RING Nominal Current (AC/DC) 3 Amp @240VAC/DC Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 40g Factory Pack Qty 10   Datasheet Product Datasheet
