Metal Line Switches
-

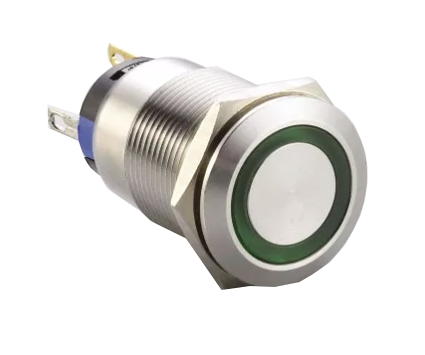

F19-271RGB, 19mm Momentary Pushbutton Switch Metal with RED/GREEN/BLUE Ring Illumination, 1xNO 1xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops
F19-271RGB, 19mm Momentary Pushbutton Switch Metal with RED/GREEN/BLUE Ring Illumination, 1xNO 1xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops Description Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 1xNO 1xNC, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no Illumination, 1xNO 1xNC, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Specification Fastron Electronics Part Number F19-271O Switch Size 20 x 19mm Nominal Voltage 250VAC/DC Rated Power 750W Switch Type Momentary 1NO and 1NC Illumination voltage 24VDC @ 10mA Illumination type RED/GREEN/BLUE/(RGB) RING Nominal Current (AC/DC) 3 Amp @240VAC/24VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$31.00
$36.58 inclGST -
F19-271Y-L, 19mm Pushbutton Switch Metal with YELLOW Ring Illumination, 1xNO 1xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops
F19-271YF19-271Y-L, 19mm Pushbutton Switch Metal with YELLOW Ring Illumination, 1xNO 1xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops Description Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 1xNO 1xNC, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no Illumination, 1xNO 1xNC, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Specification Fastron Electronics Part Number F19-271Y Switch Size 20 x 19mm Nominal Voltage 250VAC/DC Rated Power 750W Switch Type Momentary1NO + 1NC Illumination voltage 24VDC @ 10mA Illumination type YELLOW RING Nominal Current (AC/DC) 3 Amp @240VAC/24VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$29.00
$34.22 inclGST -
F19-272G, 19mm Momentary Pushbutton Switch Metal with GREEN Ring Illumination, 2xNO 2xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops
F19-272BF19-272G, 19mm Momentary Pushbutton Switch Metal with GREEN Ring Illumination, 2xNO 2xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops Description Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 2xNO 2xNC, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no Illumination, 2xNO 2xNC, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Specification Fastron Electronics Part Number F19-272B Switch Size 20 x 19mm Nominal Voltage 250VAC/DC Rated Power 750W Switch Type Momentary 2NO + 2NC Illumination voltage 24VDC @ 10mA Illumination Type GREEN RING Nominal Current (AC/DC) 3 Amp @240VAC/24VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$25.00
$29.50 inclGST -
3-109-092, MCS 16, Metal Switch 16mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, No Illumination, Pin Terminals, Ag Contact material, OFF - (ON), IP67
Schurter 3-109-081, MCS 16, Metal Switch 16mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, Pin Terminals, Ag Contact material, OFF - (ON), IP67 Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-109-081 Switching Type Standard Switch Size (Cutout) 14.5 x ø16mm Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø19 x 15mm Operating Temperature Range -20°C / 60°C Termination Pins IP Protection Rating IP67 with 0098.9201 Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$9.75
$11.51 inclGST -
1241.2802 MCS 19 PI, Metal Switch Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, w/Screw Terminals
Schurter 1241.2802 MCS 19 PI, Metal Switch Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, w/Screw Terminals Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 1241.2802 Switching Type Momentary Switch Size 19mm Cutout Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 60°C Termination 200mm Flying leads IP Protection Rating Solder Pins Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$19.89
$23.47 inclGST -

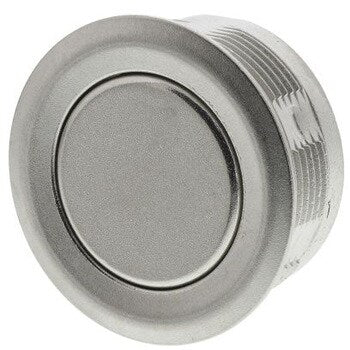

1241.2801 MCS 19 PI, Metal Switch Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, w/Soldering Guide
Schurter 1241.2801 MCS 19 PI, Metal Switch Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, w/Soldering Guide Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 1241.2801 Switching Type Momentary Switch Size 19mm Cutout Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 60°C Termination 200mm Flying leads IP Protection Rating Solder Pins Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$17.50
$20.65 inclGST -
1241.2800 MCS 19 PI, Metal Switch Short Stroke, 125mA @ 4-48VDC, 1 Million Ops
Schurter 1241.2800 MCS 19 PI, Metal Switch Short Stroke, 125mA @ 4-48VDC, 1 Million Ops Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 1241.2800 Switching Type Momentary Switch Size 9mm Cutout Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 60°C Termination 200mm Flying leads IP Protection Rating Solder Pins Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$15.90
$18.76 inclGST -
3-131-913, TTS Metal Touchless Switch 22mm Latching, 125mA @ 60VDC, 20 Million Ops Red/Green Bicolour
Schurter 3-131-913, TTS Metal Touchless Switch 22mm Latching, 125mA @ 60VDC, 20 Million Ops Red/Green Bicolour Description Momentary action switch Red/Green Assembly by mounting with nut 200mm Flying Leads Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 60 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-131-913 Switching Type Latching Switch Size (Cutout) 8 x ø22mm Nominal Voltage up to 60VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø26 x 15mm Operating Temperature Range -20°C / 60°C Termination 200mm flying leads IP Protection Rating IP67 with 0098.9201 Unit Weight 80g Factory Pack Qty 10 Datasheet Product Datasheet Video Demonstration
$80.24
$94.68 inclGST -
3-131-894, TTS Metal Touchless Switch 22mm Momentary, 125mA @ 60VDC, 20 Million Ops Red/Green Bicolour
Schurter 3-131-894, TTS Metal Touchless Switch 22mm Momentary, 125mA @ 60VDC, 20 Million Ops Red/Green Bicolour Description Momentary action switch Red/Green Assembly by mounting with nut 200mm Flying Leads Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 60 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-131-894 Switching Type Momentary Switch Size (Cutout) 8 x ø22mm Nominal Voltage up to 60VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø26 x 15mm Operating Temperature Range -20°C / 60°C Termination 200mm flying leads IP Protection Rating IP67 with 0098.9201 Unit Weight 80g Factory Pack Qty 10 Datasheet Product Datasheet Video Demonstration
$73.88
$87.18 inclGST -

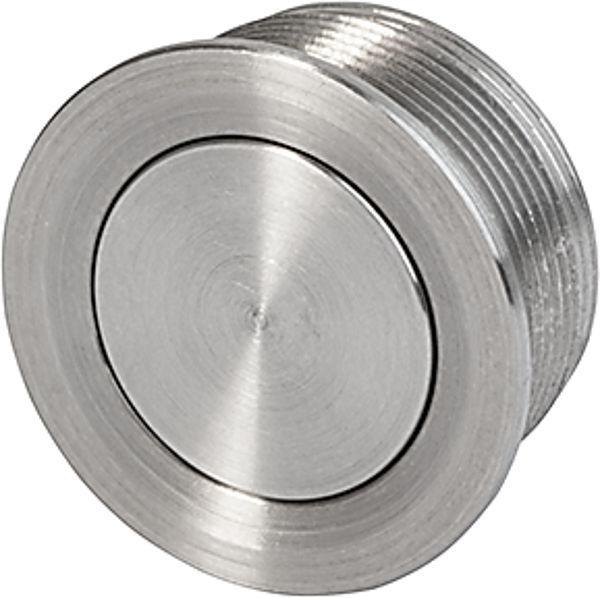

1241.2807, MCS 19, Metal Switch 19mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops
Schurter 1241.2807, MCS 19, Metal Switch 19mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 1241.2807 Switching Type Standard Switch Size (Cutout) 19mm Cutout Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 15mm Operating Temperature Range -20°C / 60°C Termination Screw terminals IP Protection Rating IP67 with 0098.9201 Unit Weight 50g Factory Pack Qty 10 Datasheet Product Datasheet
$16.90
$19.94 inclGST -
1241.2815, MCS 19, Metal Switch 19mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops
Schurter 1241.2815, MCS 19, Metal Switch 19mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 1241.2815 Switching Type Standard Switch Size (Cutout) 19mm Cutout Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø22 x 15mm Operating Temperature Range -20°C / 60°C Termination Pin terminals IP Protection Rating IP67 with 0098.9201 Unit Weight 50g Factory Pack Qty 10 Datasheet Product Datasheet
$15.35
$18.11 inclGST -
3-109-081, MCS 16, Metal Switch 16mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, Pin Terminals, Au Contact material, OFF - (ON), IP67
Schurter 3-109-081, MCS 16, Metal Switch 16mm Short Stroke, 125mA @ 4-48VDC, 1 Million Ops, Pin Terminals, Au Contact material, OFF - (ON), IP67 Description Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering Specification Schurter Part Number 3-109-081 Switching Type Standard Switch Size (Cutout) 14.5 x ø16mm Nominal Voltage 4-48VDC Rated Power 1.2W Illumination voltage N/A Nominal Current (AC/DC) 125mA Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm Dimensions ø19 x 15mm Operating Temperature Range -20°C / 60°C Termination Pins IP Protection Rating IP67 with 0098.9201 Unit Weight 40g Factory Pack Qty 10 Datasheet Product Datasheet
$9.75
$11.51 inclGST
