Current Sensors with Process Outputs
-
FATL200D10, AC Current Transducer, 200Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length
Fastron Electronics FAT200D10, AC Current Transducer, 200Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT200D10 Technology 36mm Split Core AC Current Transformer Ratio 200/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -
FATL150D10, AC Current Transducer, 150Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length
Fastron Electronics FAT100D10, AC Current Transducer, 150Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Control Systems Specification Fastron Part Number FAT150D10 Technology 36mm Split Core AC Current Transformer Ratio 150/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -
FATL100D10, AC Current Transducer, 100Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length
Fastron Electronics FAT100D10, AC Current Transducer, 100Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT100D10 Technology 36mm Split Core AC Current Transformer Ratio 100/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -
FATL500D10, AC Current Transducer, 500Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length
Fastron Electronics FATL500D10, AC Current Transducer, 500Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FATL500D10 Technology 36mm Split Core AC Current Transformer Ratio 500/0-10V Aperture Size ø 36 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 500Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -
FATL400D10, AC Current Transducer, 400Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length
Fastron Electronics FATL400D10, AC Current Transducer, 400Amp Measurement, 36mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 36mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FATL400D10 Technology 36mm Split Core AC Current Transformer Ratio 400/0-10V Aperture Size ø 36 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 400Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -

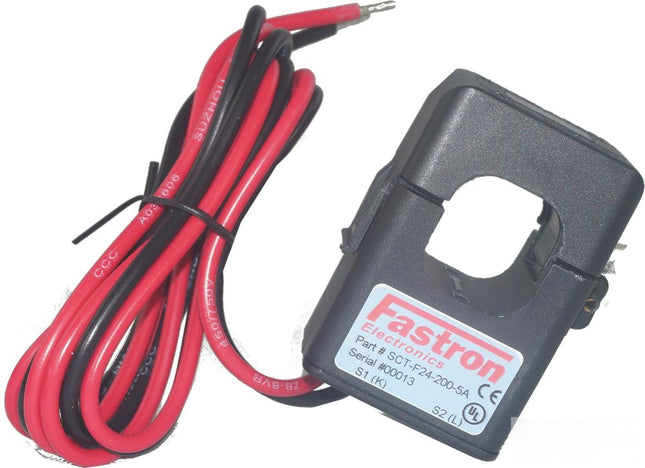

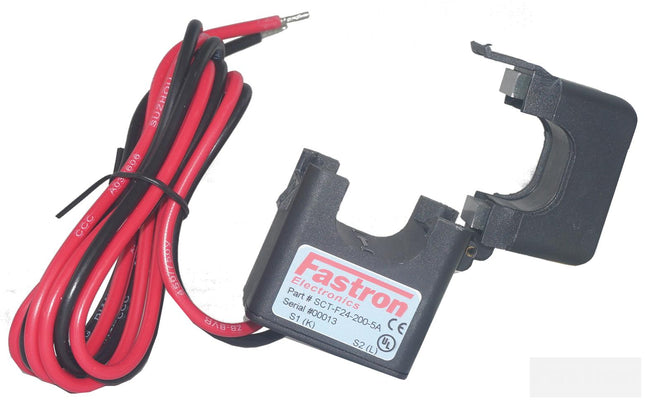

FAT100D10, AC Current Transducer, 100Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Flying Leads
Fastron Electronics FAT100D10, AC Current Transducer, 100Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT100D10 Technology 24mm Split Core AC Current Transformer Ratio 100/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 100Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$189.00
$223.02 inclGST -
FAT150D10, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Flying Leads
Fastron Electronics FAT150D10, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT150D10 Technology 24mm Split Core AC Current Transformer Ratio 150/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$189.00
$223.02 inclGST -
FAT200D10, AC Current Transducer, 200Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Flying Leads
Fastron Electronics FAT200D10, AC Current Transducer, 200Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT200D10 Technology 24mm Split Core AC Current Transformer Ratio 200/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 200Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$189.00
$223.02 inclGST -
FAT250D10, AC Current Transducer, 250Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Flying Leads
Fastron Electronics FAT250D10, AC Current Transducer, 250Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT250D10 Technology 24mm Split Core AC Current Transformer Ratio 250/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 250Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$189.00
$223.02 inclGST -
FATL300D420T, AC Current Transducer, 300Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version
Fastron Electronics FAT300D420T, AC Current Transducer, 300Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version Features Quick Release 36mm Split Core System Cale Mount 4-20mA Output 24VDc Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT300D420T Technology 36mm Split Core AC Current Transformer Ratio 300/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 300Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -
FATL250D420T, AC Current Transducer, 250Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version
Fastron Electronics FAT250D420T, AC Current Transducer, 250Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version Features Quick Release 36mm Split Core System Cale Mount 4-20mA Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT250D420T Technology 36mm Split Core AC Current Transformer Ratio 250/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 250Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST -

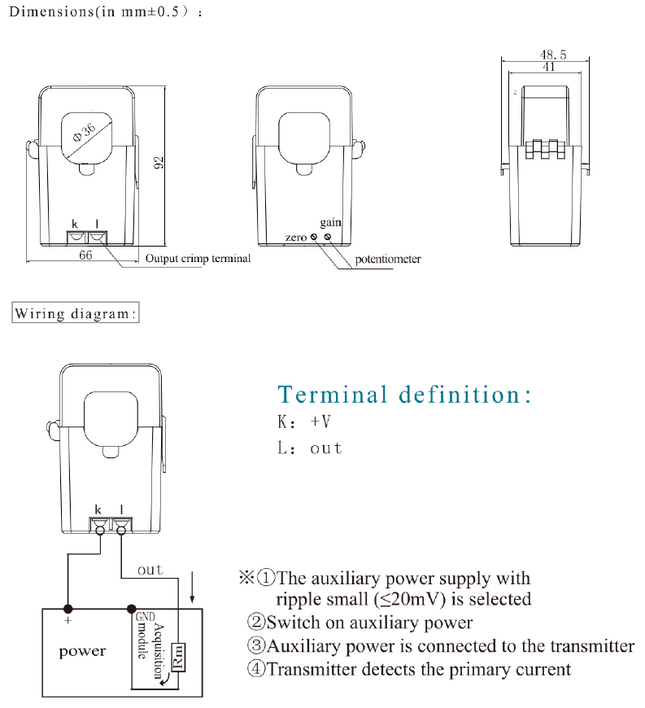

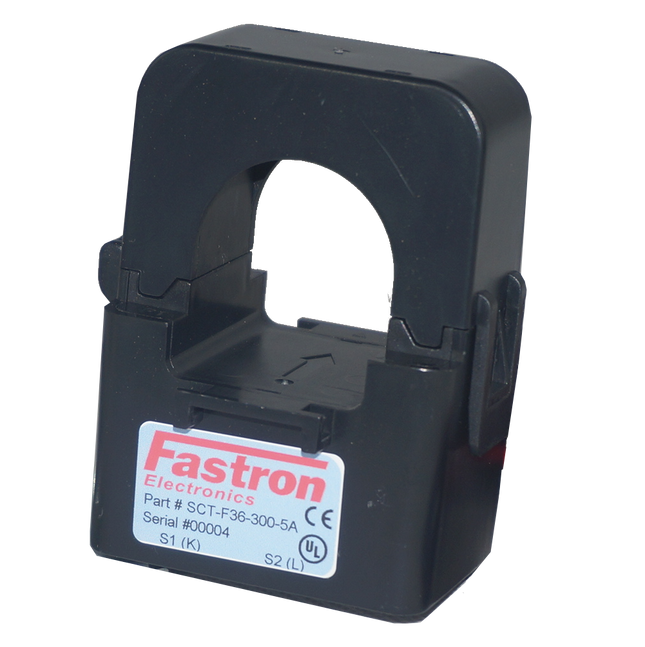

FATL200D420T, AC Current Transducer, 200Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version
Fastron Electronics FAT200D420T, AC Current Transducer, 200Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version Features Quick Release 36mm Split Core System Cale Mount 4-20mA Output 24VDc Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT200D420T Technology 36mm Split Core AC Current Transformer Ratio 200/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide
$219.00
$258.42 inclGST
